Vi3003W L2 Drop and Insert 1G 60W PoE++ 3-Port Switch User's Manual
Vigitron's Vi3003W is the perfect solution of any outdoor or harsh environ-
ment installations. The Vi3003W is a 3-port Layer 2 Ethernet and PoE
switch providing drop and insert capability for connecting several IP devices
along a single cable run. The Vi3003W provides a cost effective method for
increasing network distances beyond the standard Ethernet limit of 328 feet
(100m). Multiple units can be cascaded to provide up to nine IP cameras to
be connected to a single network switch port over distances of up to 3,000
feet
(909m).
Its IP67 housing ables it to operate under dust and water up to
3 feet. Drop and insert installation reduces installation cost.
For small systems, the Vi3003W's Layer 2 network capability can eliminate
the need for network switches, saving costs and rack space. It also can
significantly decrease network switch costs by increasing the capacity of a
24-port switch to handle up to 216 cameras and an 8-port switch up to 72
cameras. As a mini network switch, the Vi3003W avoids the potentials for
transmission collisions by complying with IEEE standards. Its ability to
automatically sense the datarate up to 1,000Mbps (1Gbps) also makes it
the perfect solution for cost effectively extending network to network
communications or between network switches requiring high speeds
transmission. The
combination of IP67 construction and hardened -40°C to +75°C make the
Vi3003W the perfect solution for any outdoor application.
The Vi3003W can be powered by PoE eliminating the need for external
power or a local power supply. Additional power up to 90W can be added at
any point along the cable run where power outlets are available to provide
the ability to power PoE++ IP cameras and other Vi3003Ws.
Important Safety Warning
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP or coax signals in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient tempera
ture exceeds 75°C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The power plug and the PoE input cable are used as the disconnect
device and shall remain readily operable.
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a main socket outlet through an AC to DC Power supply.
WARNING! - The main plug is used as the disconnect device and
shall remain readily operable.
CAUTION
DO NOT OPEN
The Smart Choice for Transmission Solutions

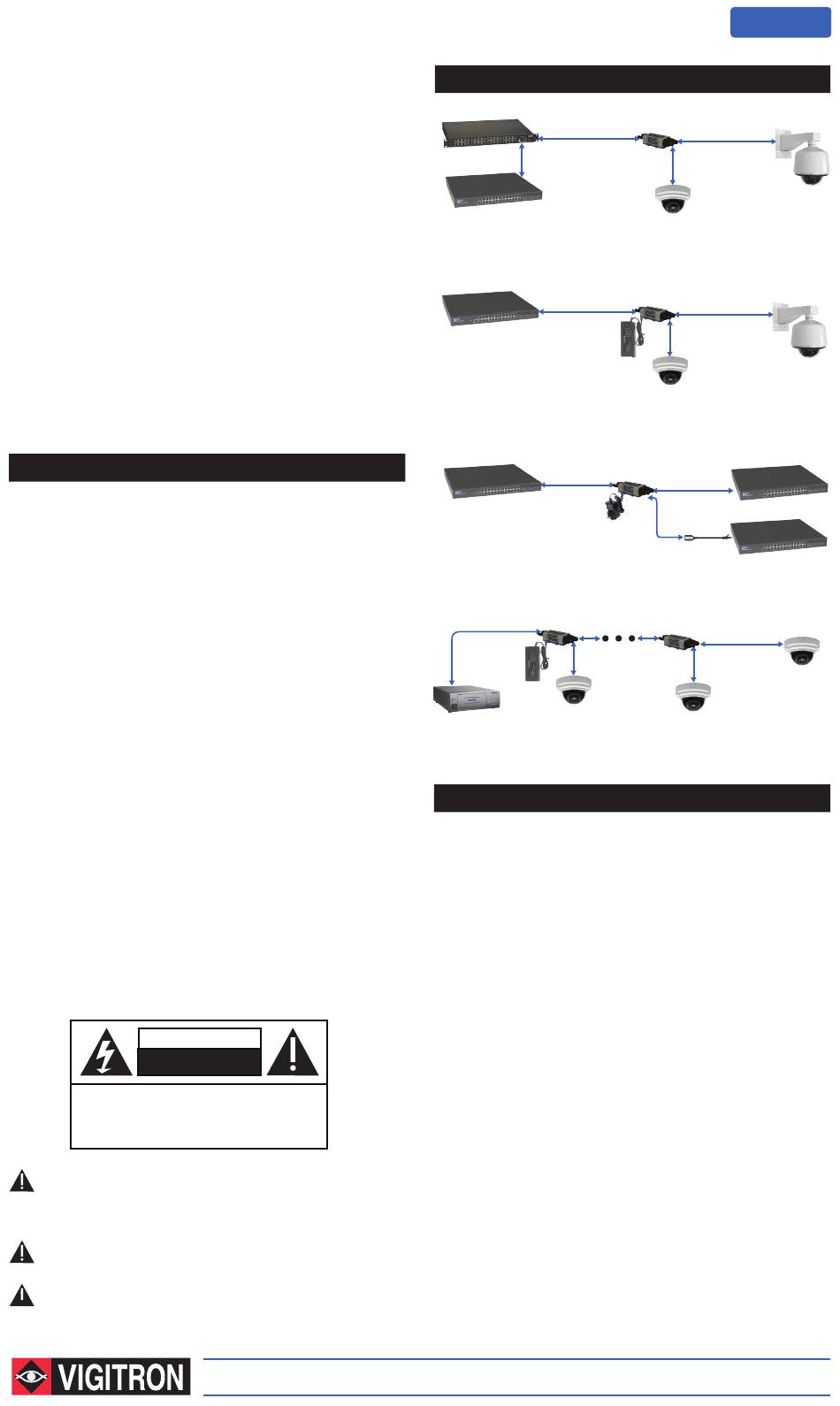

Application Drawings
Vi2216A
328 ft. (100m)
Data + 74W PoE
Network Switch
Vi3003W allows for the transmission of two cameras over a single camera run
or adding a new camera close to an existing camera.
Network Switch
328 ft. (100m)
Data + 74W PoE
Vi1120
Vi3003W can provide over 60W PoE on port 2 and 30W PoE on port 3 using
Vi1120 external power supply.
Network Switch
328 ft. (100m)
Data
Vi3003W enables extension of 1G connection between networks.
Vi3003W
328 ft. (100m)
Data
328 ft. (100m)
Data + PoE
NVR
Vi1120
PoE Camera
A total of 9 IP addresses can be accessed on a single cable run, eliminating the
need for network switches.
Installation (Powered by PoE)
a) Port-3 (Tap) Connection:
- Connect the IP camera's RJ45 connector to the Port-3 of Vi3003W using a
standard Cat5/6 cable of maximum 100m in length. This port can
provide up to 30W PoE power depending on the input PoE and the total
load on the unit.
b) Port-2 (PoE-Out) Connection:
This port can be used to connect to another Vi3003W or a 60W camera.
- If you want to daisy-chain this unit with another Vi3003W, connect Port-2
of Vi3003W to the Port-1 of the next Vi3003W using a standard Cat5/6
cable of maximum 100m in length. Port-2 will provide 1G Ethernet.
- If you want to connect this unit to a PoE++ camera, connect Port-2 of
Vi3003W to the RJ45 connector of the IP camera using a standard Cat5/6
cable of maximum 100m in length. This port can provide up to 60W PoE
power depending on the input PoE and the total load on the unit.
Caution
Do not connect a non-PoE device to the Port-2 of the Vi3003W. Doing so
may damage the non-PoE device.
If it is necessary to connect a non-PoE device to Port-2, use a Vi0025
between Port-2 and RJ45 connector of the non-PoE device.
c) Port-1 (PoE-In) Connection:
- Connect Port-1 of Vi3003W to the PoE switch or a high power PoE source
using a standard Cat5/6 cable of maximum 100m in length. This port can
receive up to 74W PoE and data 1Gbps.
MaxiiNet
PoE Switches
Vi3003W
328 ft. (100m)
Data + PoE++
328 ft. (100m)
Data + up to 30W PoE
PoE Camera
Vi3003W
328 ft. (100m)
Data + up to 60W PoE
328 ft. (100m)
Data + up to 30W PoE
PoE Camera
Network Switch
Vi3003W
328 ft. (100m)
Data
Network Switch
328 ft. (100m)
Data
Vi0012
Vi0025
2 5
0 0
V i
k e
r
o c
B l
E
O
P
Vi3003W
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
PoE Camera
www.vigitron.com
PoE Camera
PoE Camera
