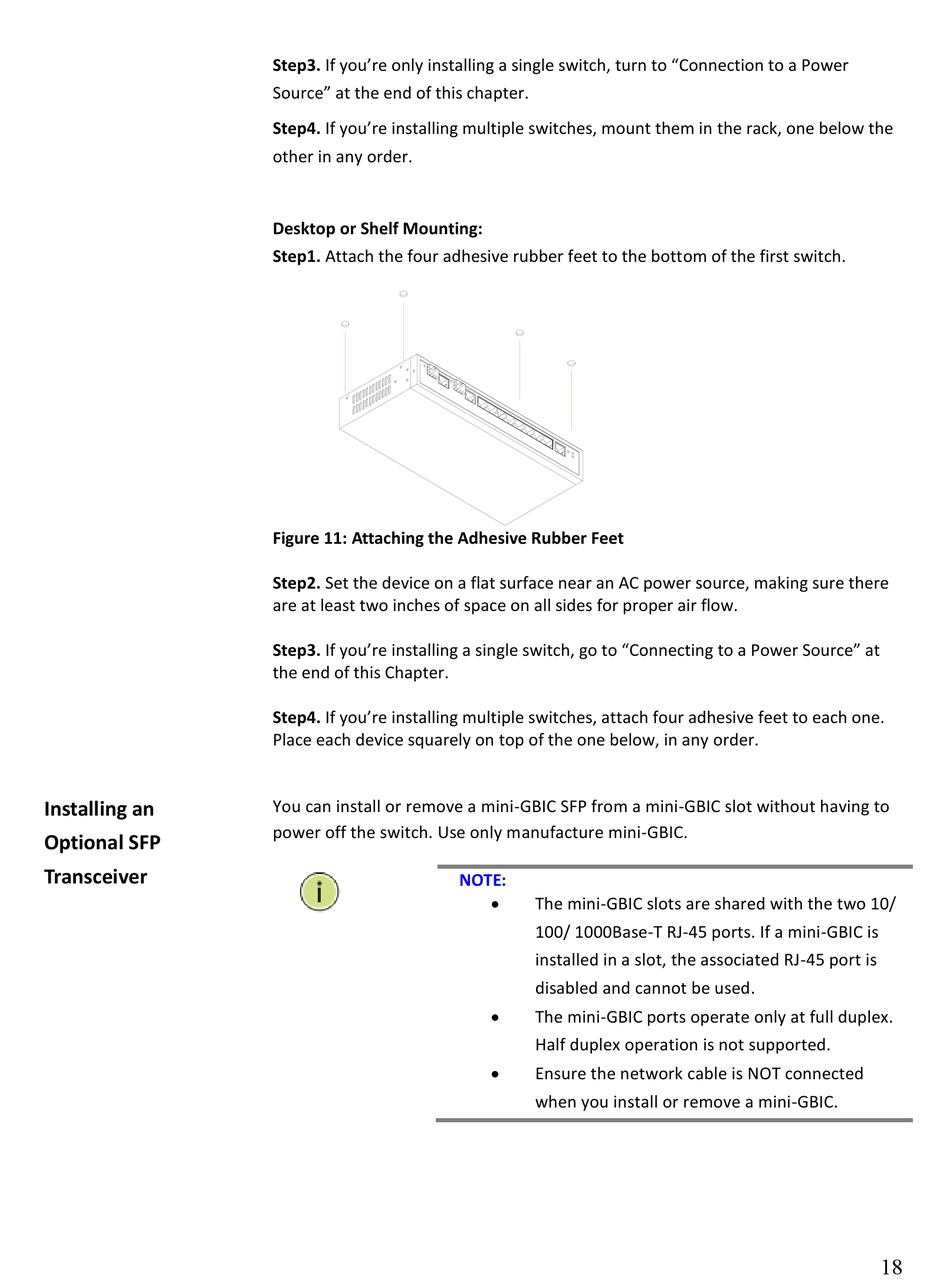

Vigitron Vi3010 Installation And Getting Started Manual page 18

Installing an
Optional SFP
Transceiver
Step3. If you're only installing a single switch, turn to "Connection to a Power
Source" at the end of this chapter.
Step4. If you're installing multiple switches, mount them in the rack, one below the
other in any order.
Desktop or Shelf Mounting:
Step1. Attach the four adhesive rubber feet to the bottom of the first switch.
Figure 11: Attaching the Adhesive Rubber Feet
Step2. Set the device on a flat surface near an AC power source, making sure there
are at least two inches of space on all sides for proper air flow.
Step3. If you're installing a single switch, go to "Connecting to a Power Source" at
the end of this Chapter.
Step4. If you're installing multiple switches, attach four adhesive feet to each one.
Place each device squarely on top of the one below, in any order.
You can install or remove a mini-GBIC SFP from a mini-GBIC slot without having to
power off the switch. Use only manufacture mini-GBIC.
NOTE:

The mini-GBIC slots are shared with the two 10/
100/ 1000Base-T RJ-45 ports. If a mini-GBIC is
installed in a slot, the associated RJ-45 port is
disabled and cannot be used.

The mini-GBIC ports operate only at full duplex.
Half duplex operation is not supported.

Ensure the network cable is NOT connected
when you install or remove a mini-GBIC.
18
