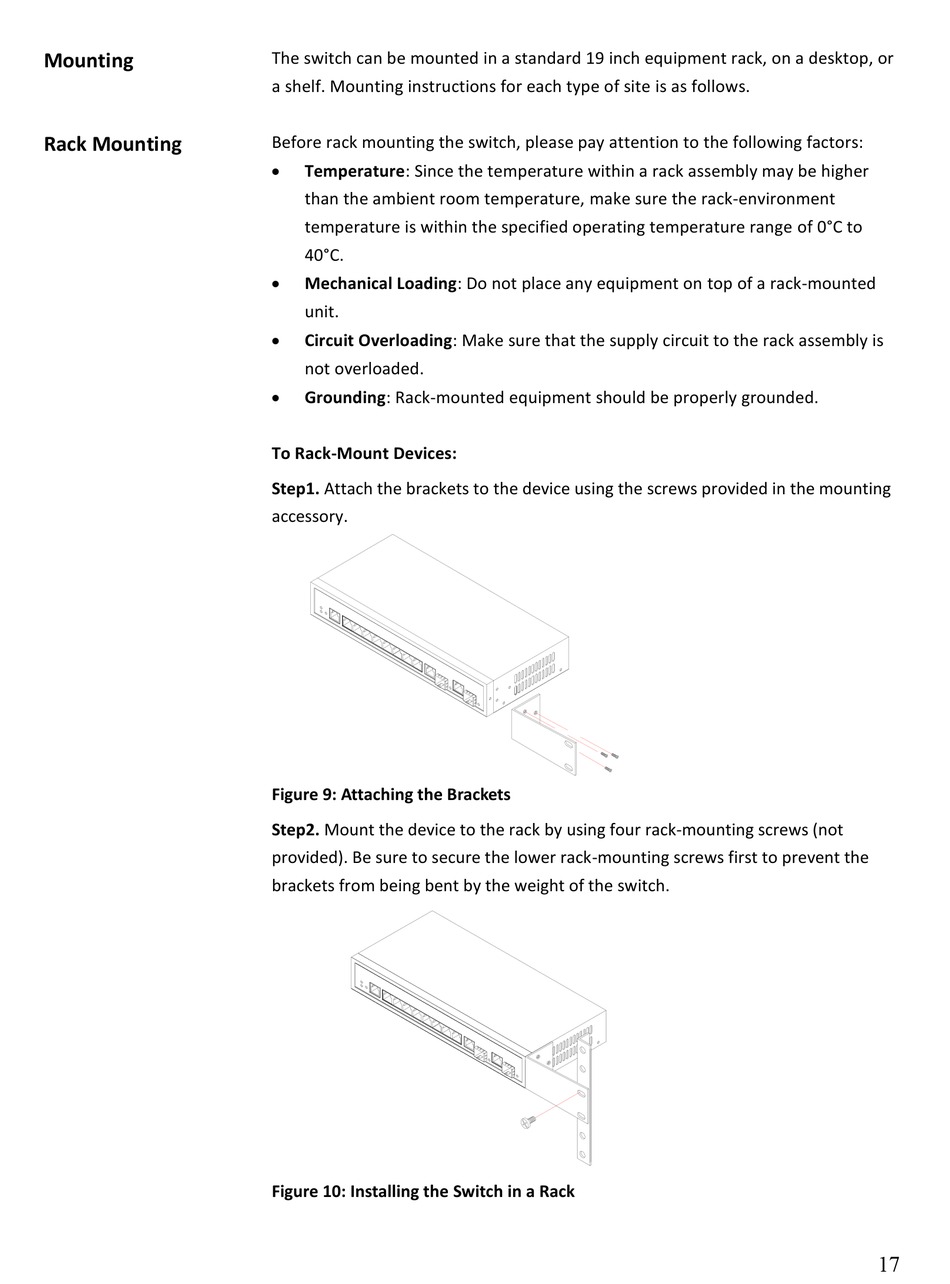

Mounting
Rack Mounting
The switch can be mounted in a standard 19 inch equipment rack, on a desktop, or
a shelf. Mounting instructions for each type of site is as follows.
Before rack mounting the switch, please pay attention to the following factors:

Temperature: Since the temperature within a rack assembly may be higher
than the ambient room temperature, make sure the rack-environment
temperature is within the specified operating temperature range of 0°C to
40°C.

Mechanical Loading: Do not place any equipment on top of a rack-mounted
unit.

Circuit Overloading: Make sure that the supply circuit to the rack assembly is
not overloaded.

Grounding: Rack-mounted equipment should be properly grounded.
To Rack-Mount Devices:
Step1. Attach the brackets to the device using the screws provided in the mounting
accessory.
Figure 9: Attaching the Brackets
Step2. Mount the device to the rack by using four rack-mounting screws (not
provided). Be sure to secure the lower rack-mounting screws first to prevent the
brackets from being bent by the weight of the switch.
Figure 10: Installing the Switch in a Rack
