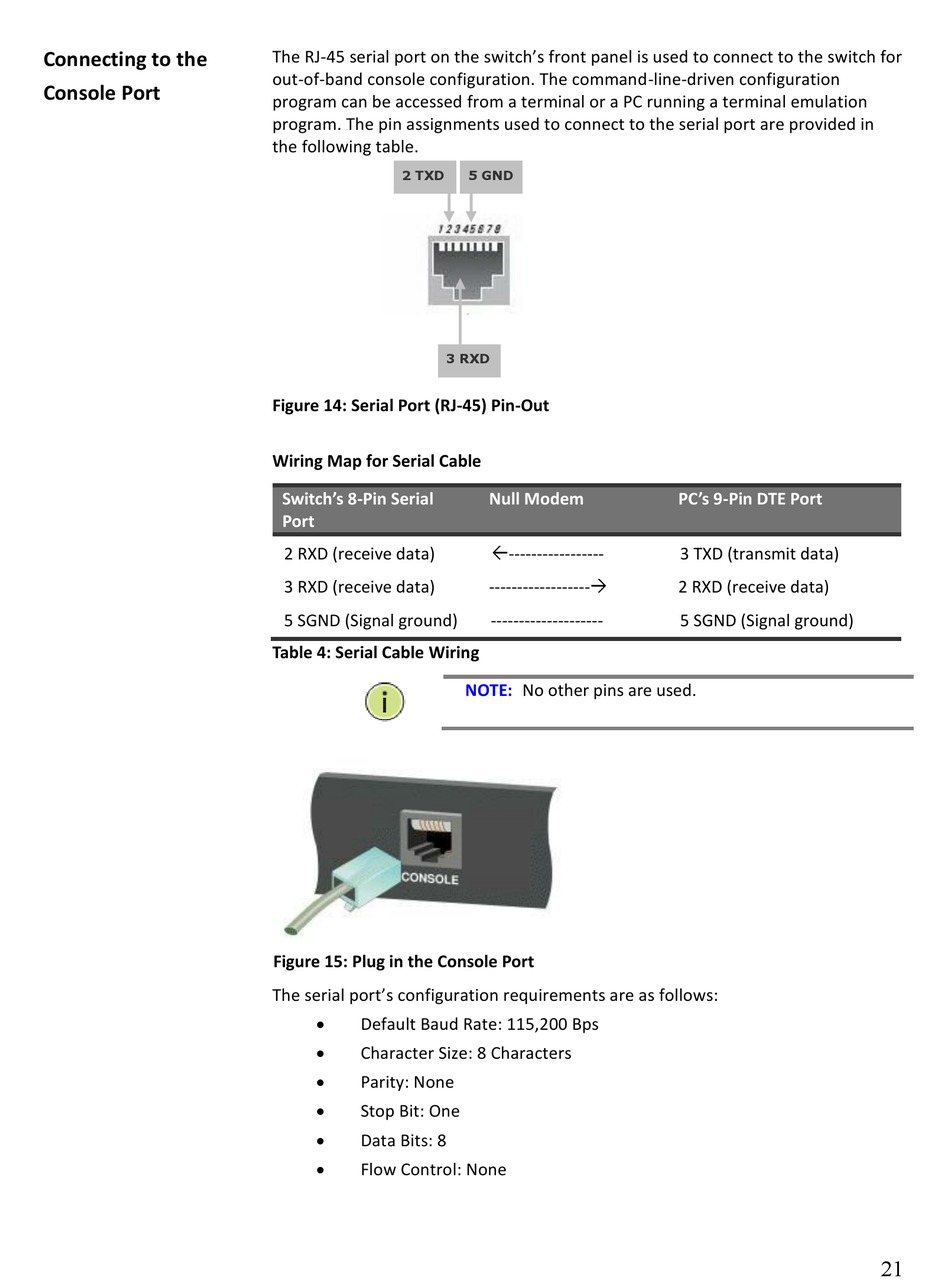

Vigitron Vi3010 Installation And Getting Started Manual page 21

Connecting to the
Console Port
The RJ-45 serial port on the switch's front panel is used to connect to the switch for
out-of-band console configuration. The command-line-driven configuration
program can be accessed from a terminal or a PC running a terminal emulation
program. The pin assignments used to connect to the serial port are provided in
the following table.
2 TXD
3 RXD
Figure 14: Serial Port (RJ-45) Pin-Out
Wiring Map for Serial Cable
Switch's 8-Pin Serial
Port
2 RXD (receive data)
3 RXD (receive data)
5 SGND (Signal ground)
Table 4: Serial Cable Wiring
Figure 15: Plug in the Console Port
The serial port's configuration requirements are as follows:

Default Baud Rate: 115,200 Bps

Character Size: 8 Characters

Parity: None

Stop Bit: One

Data Bits: 8

Flow Control: None
5 GND
Null Modem
-----------------
------------------
--------------------
NOTE: No other pins are used.
PC's 9-Pin DTE Port
3 TXD (transmit data)
2 RXD (receive data)
5 SGND (Signal ground)
