Overview

This product is manufactured to meet all European Economic Area Tele-communication networks requirements.

Connections

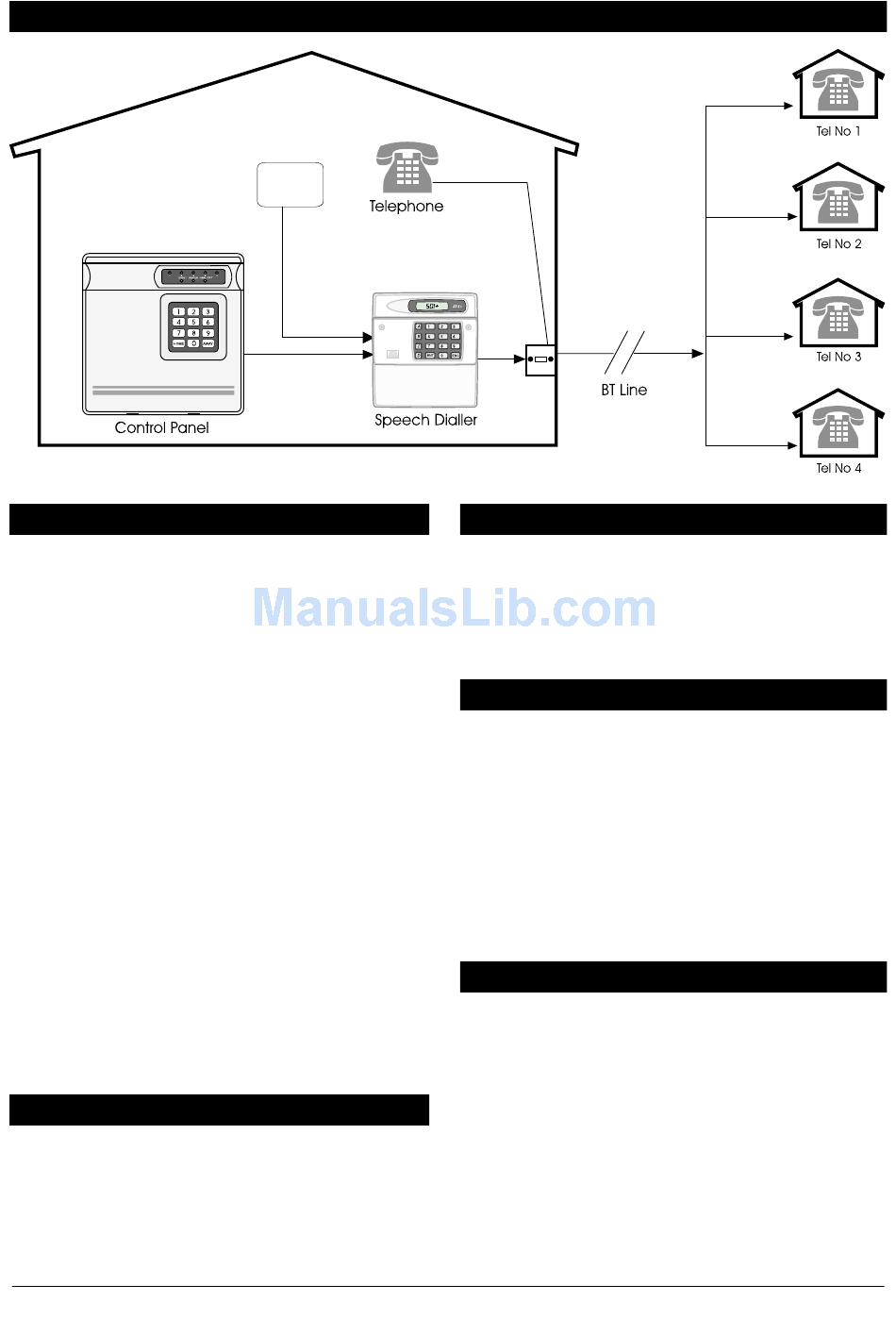

The SD1+ is connected between the leak
detection alarm panel and the telephone
line. It behaves like another extension to the
telephone and does not affect the normal
operation or that of any other extensions
fitted. However, if the SD1+ is operating, and
any telephone handset is lifted, the
messages will be heard. The unit is powered
by a 12v dc mains adaptor supplied as an
option.
The SD1+ can accept up to four inputs which
in our example are; A - Leak Detected,
B - Cable Break, C - Service Required and
D - Auxiliary. These inputs correspond to
messages (A, B, C or D) that the SD1+ sends
out and should be recorded as such. The
SD1+ can also accept a direct connection
from suitable auxiliary devices such as an
optical probe, float switch or anything using
volt free contacts.

Passcode

The SD1+ requires a passcode to be entered
to gain access to all of the programming
menus, this code can also be used to
cancel an activation if the unit has been
accidentally triggered. See page 4.
2
A, B, C & D
Auxiliary
Inputs

Passcode Type

The passcode that is required by the SD1+
to enter into the programming menus, can
be modified so that it is either a standard 4
digit code, or a 6 digit code. See page 5.

Programmable Output

The SD1+ has a programmable output that
is capable of supplying up to 100mA of
current. This output can be programmed to
activate when the SD1+ has been triggered,
when the SD1+ has been successfully
acknowledged, or when the SD1+ has failed
to communicate to all telephone numbers.
See page 5.

Call Routing

The SD1+ can be programmed so that each
trigger input A, B, C or D will only dial a
certain telephone number. This can be used
for when the dialler is required to call four
different numbers under three different
conditions e.g. trigger A will only dial
telephone number 1, trigger B will only dial
telephone numbers 2 & 3 whereas trigger C
will dial telephone numbers 1,
2, 3 & 4. See page 6.
