Basic Fixture - ETC source four Assembly Manual

Basic Fixture

8
9
Color frame
10
11
12
13
14
15
16
Gel retainer
Reference
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
N o t e :
Basic Fixture
6
7
clip
Part Description
Number
7060A2008 Lamp burner assembly rated up to 750W, Black
7060A2011-K Reflector housing assembly, single clutch, Black
7060A2011-K1 Reflector housing assembly, single clutch, White
7060A2020-K Reflector housing assembly, double clutch, Black
7060A2020-K1 Reflector housing assembly, double clutch, White
7060A2012-K Shutter barrel assembly, Black
7060A2012-K1 Shutter barrel assembly, White
7060A2000-K 5° lens tube, with knob
7060A2001-K 10° lens tube, with knob
7060A2050-K 14° lens tube, with knob
7060A2002-K 19° lens tube (6 x 16), with knob
7060A2003-K 26° lens tube (6 x 12), with knob
7060A2004-K 36° lens tube (6 x 9), with knob
7060A2005-K 50° lens tube (4.5 x 6), with knob
7060A2051-K 70° lens tube, with knob
7060A2052-K 90° lens tube, with knob
7060A4008-01 Knob set with male insert
HW5143 Washer, flat fiber
HW5197 Screw, 1/4-20 x 5/8, black zinc
Any part that is indicated as "Black" may be also ordered in white or silver. When
ordering white, use the part number suffix -1, and for silver, use the part number
suffix -5.
19
18
17
1
2
3
4
5

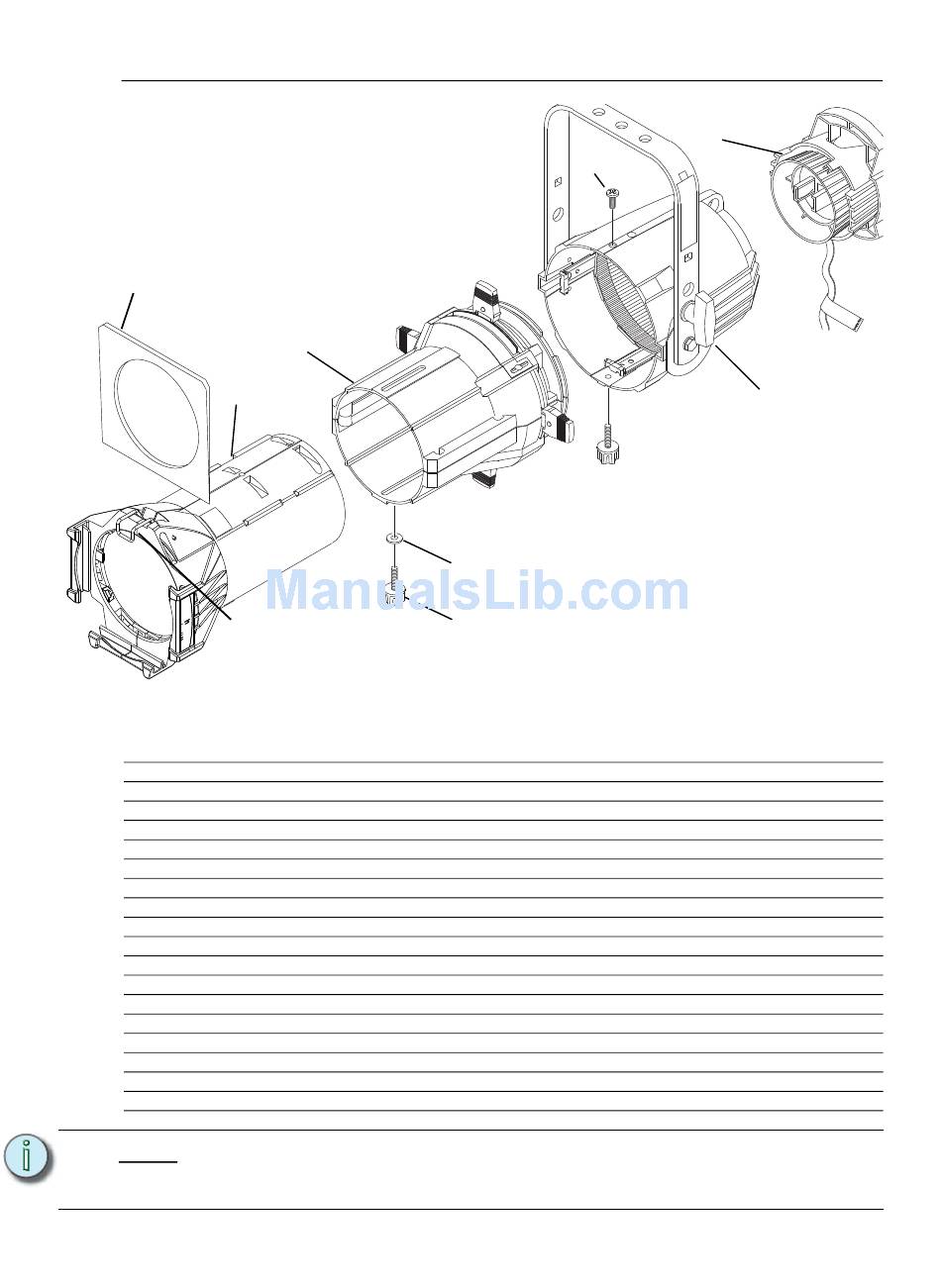

Figure 1
Quantity
Required
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
