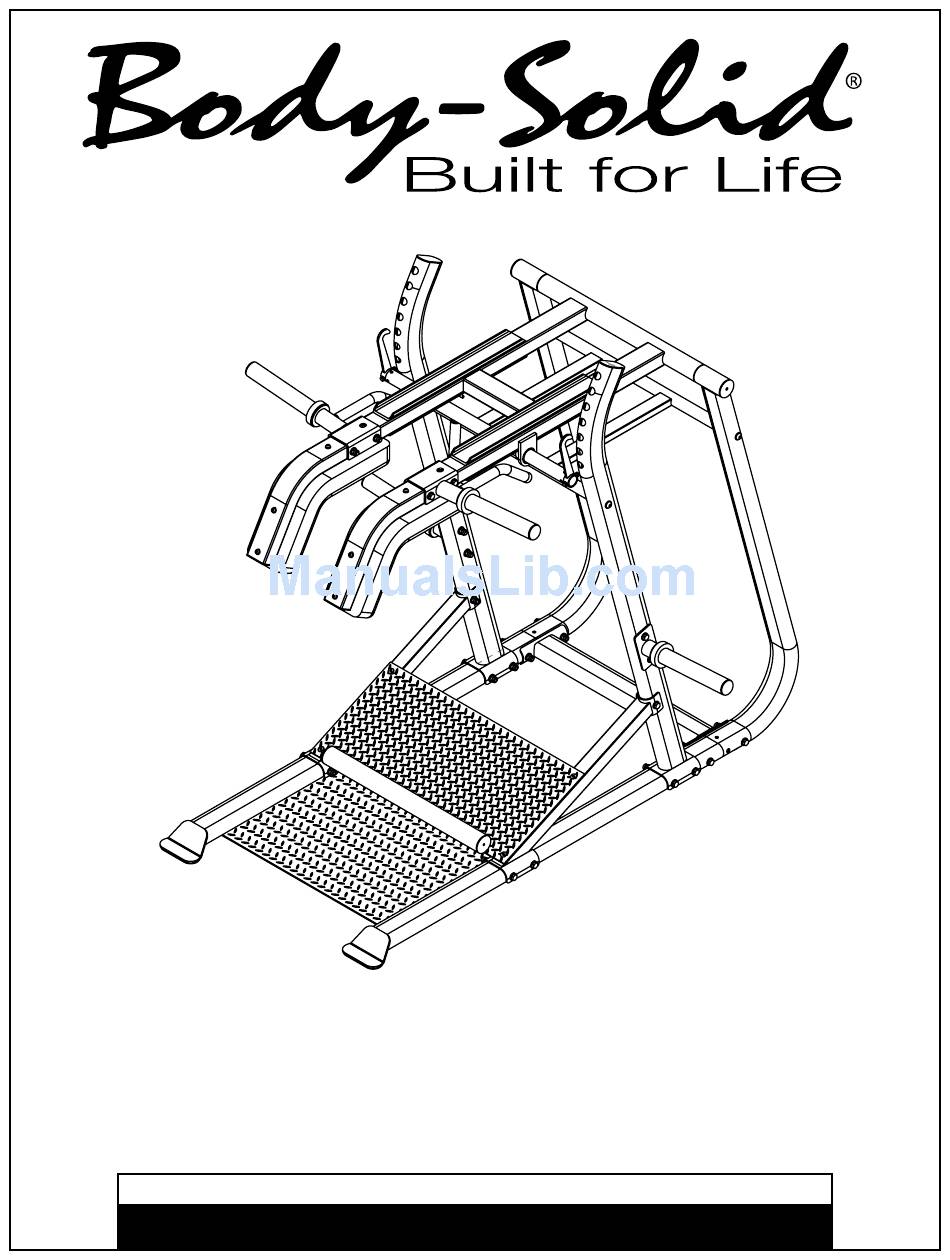

- Page 1 SLS500 & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. SLS500-020316...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Body-Solid dealer. If you have any questions about the operation, set up or maintenance of this machine please call Be sure that all users carefully read and understand all our customer service department at 1 (800) 556-3113.
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE LIST........... PAGE 6 • PARTS LIST............ PAGE 7 • HARDWARE ILLUSTRATION......PAGE 8 • ASSEMBLY INSTRUCTIONS......PAGE 12 • EXPLODED VIEW......... -
Page 4: Safety Instructions
Before beginning assembly, please take the time to read the instructions thoroughly. 1. Model Number 2. Place of Purchase m Read each step in the assembly instructions and 3. Serial Number (S/N) follow the steps in sequence. Do not skip ahead. 4. Part # and Description If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. m Assemble and operate the SLS500 on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access. -
Page 5: Preparation
P r e p a r a t i o n Thank you for purchasing the SLS500. This bench is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the SLS500 include but are not limited to: step. While you may be able to assemble the SLS500 using m Metric Allen Key Set the illustrations only, important safety notes and other tips are included in the text. -
Page 6: Hardware List
S L S 5 0 0 H a r d w a r e L i s t Part# Size Description Quantity M12X130mm HEX HEAD BOLT 12 PCS. M12X105mm HEX HEAD BOLT 4 PCS. M12X80mm HEX HEAD BOLT 6 PCS. M12X30mm BUTTON HEAD CAP SCREW 4 PCS. -
Page 7: Parts List
S L S 5 0 0 P a r t s L i s t Part# Description Quantity FRONT BASE FRAME 2 PCS. LEFT UPRIGHT 1 PCS. RIGHT UPRIGHT 1 PCS. RIGHT REAR BASE FRAME 1 PCS. LEFT REAR BASE FRAME 1 PCS. -
Page 8: Hardware Illustration
S L S 5 0 0 H a r d w a r e I l l u s t r a t i o n Part #1 HEX HEAD BOLT M12x130mm QTY. 12... - Page 9 S L S 5 0 0 H a r d w a r e I l l u s t r a t i o n Part #6 BUTTON HEAD CAP SCREW M8x70mm QTY. 8...
- Page 10 PART #41 NYLON LOCK NUT M10 PART #41 NYLON LOCK NUT M10 QTY.8 S L S 5 0 0 H a r d w a r e I l l u s t r a t i o n PART #42 NYLON LOCK NUT M12...
- Page 11 N o t e s...
-
Page 12: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on. - Page 13 S T E P Above shows Step 1 assembled and completed.
- Page 14 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 15 S T E P Above shows Step 2 assembled and completed.
- Page 16 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 3C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 17 S T E P Above shows Step 3 assembled and completed.
- Page 18 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 19 S T E P Above shows Step 4 assembled and completed.
- Page 20 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 5C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 21 S T E P Above shows Step 4 assembled and completed.
-
Page 22: Exploded View
S L S 5 0 0 E x p l o d e d V i e w... - Page 23 N o t e s...
-
Page 24: Contact Page
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
