SLE-200G
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINMINZ RISK , YOU MUST FOLLOW RULES :
1.Inspect equipment before each workout . Checke that all nuts,
bolt, screws and pop pins are in place and fully tightened.
Alos,before use, check cables for signs of wear. Replace all
worn parts immediately. Never use machine if any parts are
damaged or missing Failure to follow these rules may result
in serious injury.
2.keep clear of the cable and all moving parts when machine
is in use.
3.Always make sure all Snap Links are closed when doing any
cable/pulley exercises.
4.Exercise with care.Perform your exercise at a smooth moderte
pace;never perform jerky or uncoordinated moverment that may
cause injury.
5.It is recommended that you should workout with a training partner.
6.Do not allow children or minors to play on or around this equipment.
7.If unsure of proper use of equipment,call your local Body-Solid
distributor or the Body-Solid customer service department at
1-800-556-3113.
8.WARNING : Consult your physician before sataring your exercise
program.For your own safety.do not being any exercise program
without proper instruction.

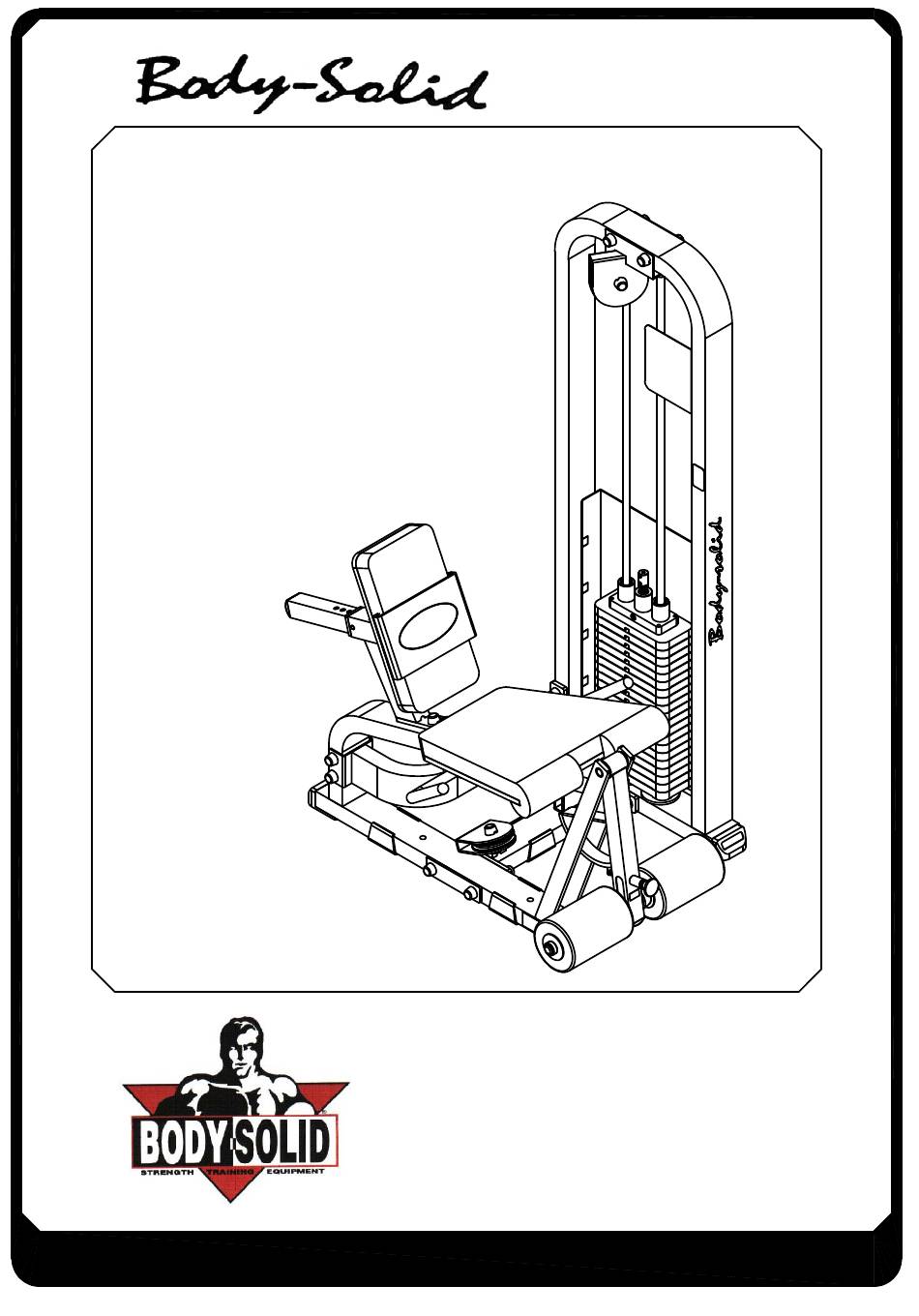

SLE-200G.1 OWNER'S MANUAL
RAL2-11-98
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLE-200G.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Body Solid SLE-200G.1

  • Page 1 1-800-556-3113. 8.WARNING : Consult your physician before sataring your exercise program.For your own safety.do not being any exercise program without proper instruction. RAL2-11-98 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com SLE-200G.1 OWNER'S MANUAL...
  • Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e                              ...
  • Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
  • Page 4 SLE-200G ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"X5-1/2"L PARTIAL QTY. (A2)HEX BOLT 1/2"X5-1/4"L PARTIAL QTY. (A3)HEX BOLT 1/2"X5"L PARTIAL QTY. (A4)HEX BOLT 1/2"X3-3/4"L PARTIAL QTY. (A5)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.3 SLE200G.1-112007 Page...
  • Page 5 SLE-200G ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A6)HEX BOLT 5/16"X3L" PARTIAL QTY. (A7)HEX BOLT 5/16"X1-1/4L" PARTIAL QTY.6 (A8)ROUND INNER HEAD 7/16"X1-1/2" PARTIAL QTY.1 (A9)ALLEN SCREW 5/16"X3/8L" PARTIAL QTY.3 (A10)WEIGHT STACK CABLE (8260-010) QTY.1 (A11)10LB PIN (8250-022) QTY.1 SLE200G.1-112007 Page...
  • Page 6 SLE-200G ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A12)ROUND INNER HEAD 5/16"X1-1/2" PARTIAL QTY.1 (A13)STEEL BUSHING Ø1/2"XØ8.5X21L QTY.1 SLE200G.1-112007 Page...
  • Page 7 SLE-200G ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (C3)5/16"(I.D.) WASHER 24 QTY.7 (B1)NYLON LOCK NUT 1/2" QTY.16 (B2)LOCK NUT 5/8" QTY.1 (C4)5/16" SPRING WASHER QTY.7 (B3)NYLON LOCK NUT 5/16" QTY.1 (C5)5/8" SPRING WASHER QTY.1 (C1)ROUND END CAP WASHER QTY.32 (C2)Ø1"CHROME WASHER QTY.2 SLE200G.1-112007 Page...
  • Page 8 SLE-200G ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION ---------------------------------[32PCS] D1.1/2" BOLE CAP(9212-024) --------------------------[4PCS] D2.2"X4" FOOT END CAP(9211-028) --------------------------[2PCS] D3.2"X2"X1.8t END CAP(9211-087) -------------------------[2PCS] D5.Ø2" NYLON WASHER(9214-001) -------------------------[2PCS] D6.Ø4" RUBBER DONUT(9310-017) ----------------------------------------[1PCS] D7.Ø6" PULLEY(9213-009) -----------------------------------[2PCS] D8.Ø4-1/2"PULLEY(9213-010) -----------------------[2PCS] D10.Ø3/4" SHAFT COLLAR(9211-046) ----------------------[3PCS] D11.2"X4" RUBBER DOUNT(9212-009) ---------------------[2PCS] D12.Ø1"X10"...
  • Page 9 SLE-200G ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A1.[1SET] WEIGHT STACK FRAME B.[1SET] BOTTOM PULLEY FRAME C.[1SET] MIDDLE SUPPORT FRAME D1.[1SET] MAIN BODY FRAME E.[1SET] LEG EXTENSION FRAME F.[1SET] ADJUSTABLE BACK SUPPORT G.[1SET] BACK PAD FRAME H.[1SET] TOP PULLEY FRAME I.[1PCS] ROLLER BAR FRAME J.[1SET] ROLLER BAR FRAME SLE200G.1-112007 Page...
  • Page 10 SLE-200G ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET K.[2PCS] CHROME GUIDE ROD L1.[1PCS] FOOT ROLLER BAR (8280-002)Ø3/4"X1765L (8220-058)Ø1"X610L M.[3PCS] 2"X8" PLATE M.[2PCS] SEAT BRACKET (8312-077) (8333-001) O.[1PCS] SEAT PAD P.[1PCS] BACK PAD (9121-002) (9111-014) Q[1PCS]BACK PAD BUBBER (9119-001) SLE200G.1-112007 Page...
  • Page 11: Safety Rules

    3. It is recommended that you should workout with a training partner. 4. Warning : COUSULT YOUR PHYSICIAN BEFORE STARTINF TOUR EXERCISE PROGRAM. IT IS ADVISABLE TO HAVE A PHYSICAL EXAMINATION BEFORS YOU ENTER ANY EXERCISE PROGRAM. FOR YOUR OWN SAFTEY, DO NOT BEGIN ANY EXERCISE WITHOUT PROPER INSTRUCTION. Page SLE-200G.1-112007...
  • Page 12 ASSEMBLY INSTRUCTIONS D1X2 A3X2 C1X2 C1X2 Above shows STEP1 B1X2 assembled and completed D10X2 D1X2 A9X3 D1X2 D22X2 B1X2 C1X2 B1X2 C1X2 C1X2 D1X2 A3X2 D1X2 5/16"X1/2" ALLEN SCREW X2 B1X2 D1X2 D6X2 C1X2 B1X2 C1X2 D1X2 1"X100L SHAFT SLE-200G.1-112007 Page...
  • Page 13 SLE-200G ASSEMBLY INSTRUCTIONS CABLE Above shows STEP2 assembled and completed A Detail View D1X2 A4X2 A7X4 C3X4 C1X2 C4X4 5/16"X1/2"L ROUND BOLT D23X2 C1X2 D12X2 D8X2 C2X2 B1X2 D17X2 C2X2 D1X2 C3X2 D16X2 D5X2 C4X2 A7X2 SLE-200G.1-112007 Page...
  • Page 14 SLE-200G ASSEMBLY INSTRUCTIONS Above shows STEP3 assembled and completed 20X3tX25L=8PCS SLE-200G.1-112007 Page...
