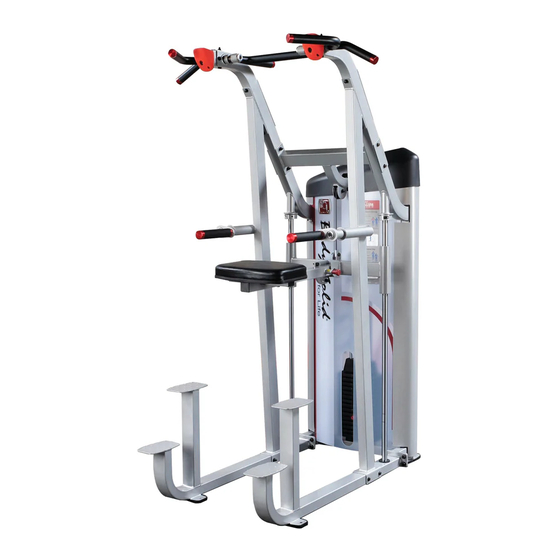

Body Solid S2ACD Assembly Instructions & Owner's Manual
  1. Manuals
  2. Brands
  3. Body Solid Manuals
  4. Fitness Equipment
  5. S2ACD
  6. Assembly instructions & owner's manual

Body Solid S2ACD Assembly Instructions & Owner's Manual

Hide thumbs Also See for S2ACD:

Advertisement

Quick Links

Download this manual
S2ACD
&
A s s e m b l y
I n s t r u c t i o n s
O W N E R ' S
M A N U A L
v. S2ACD-032417

Advertisement

loading

Related Manuals for Body Solid S2ACD

Summary of Contents for Body Solid S2ACD

  • Page 1 S2ACD & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L v. S2ACD-032417...
  • Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e Body-Solid dealer. If you have any questions about the operation, set up or maintenance of this machine please call Be sure that all users carefully read and understand all our customer service department at 1 (800) 556-3113.

  • Page 3: Table Of Contents

    T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE LIST........... PAGE 6 • HARDWARE ILLUSTRATION......PAGE 8 • PART / LIST ILLUSTRATION......PAGE 14 • ASSEMBLY INSTRUCTIONS......

  • Page 4: Safety Instructions

    Before beginning assembly, please take the time that we can assist you better. to read the instructions thoroughly. 1. Model Number m Read each step in the assembly instructions and 2. Place of Purchase follow the steps in sequence. Do not skip ahead. 3. Serial Number (S/N) If you skip ahead, you may learn later that you 4. Part # and Description have to disassemble components and that you may have damaged the equipment. m Assemble and operate the S2ACD on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access.

  • Page 5: Preparation

    P r e p a r a t i o n Thank you for purchasing the S2ACD. This bench is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the S2ACD include but are not limited to: step. While you may be able to assemble the S2ACD using m Metric Allen Key Set the illustrations only, important safety notes and other tips are included in the text.

  • Page 6: Hardware List

    S 2 A C D H a r d w a r e L i s t Part# Size Description Quantity M12X100mm HEX HEAD BOLT 1 PCS. M12X35mm HEX HEAD BOLT 8 PCS. M10X105mm HEX HEAD BOLT 12 PCS. M10X100mm HEX HEAD BOLT 2 PCS.
  • Page 7 S 2 A C D H a r d w a r e L i s t Part# Size Description Quantity 9 PCS. NYLON LOCK NUT 28 PCS. NYLON LOCK NUT 6 PCS. NYLON LOCK NUT 2 PCS. NYLON LOCK NUT 1 PCS.

  • Page 8: Hardware Illustration

    Part #3 HEX HEAD BOLT M10X45mm PARTIAL QTY. 2                             S 2 A C D H a r d w a r e I l l u s t r a t i o n PART #5 HEX HEAD BOLT M12X35 PARTIAL THRE Part #1...
  • Page 9                             S 2 A C D H a r d w a r e I l l u s t r a t i o n PART #4 HEX HEAD BOLT M10X50 PARTIAL THREAD QTY.8...
  • Page 10 PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD PART #2 HEX HEAD BOLT M10X35 PARTIAL THREAD QTY.1 PART #12 BUTTON HEAD CAP SCREW M6X40 FULL THREAD QTY.1 PART #12 BUTTON HEAD CAP SCREW M6X40 FULL                             S 2 A C D H a r d w a r e I l l u s t r a t i o n Part #13 BUTTON HEAD CAP SCREW M8X25mm...
  • Page 11 PART #40 FLANGE NUT M16 QTY.1 PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4 PART #13 BUTTON HEAD CAP SCREW M8X25 FULL PART #13 BUTTON HEAD CAP SCREW M8X25 FULL THREAD QTY.4 PART #13 BUTTON HEAD CAP SCREW M8X25 F ...
  • Page 12 PART #50 SPRING WASHER 10                             S 2 A C D H a r d w a r e I l l u s t r a t i o n PART #51 FLAT WASHER 11X 20X2 QTY.19...
  • Page 13                             S 2 A C D H a r d w a r e I l l u s t r a t i o n PART #55 SPRING WASHER 3/8"...

  • Page 14: Part / List Illustration

    S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART E - RIGHT TOP FRAME 1PC. PART A - RIGHT BASE FRAME, 1PC. PART B - LEFT BASE FRAME, 1PC.
  • Page 15 S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART J - MOUNTING BRACET , 2PCS. PART P - CARRIAGE, 1PC. PART K - LEFT PULL UP HANDLE , 1PC. PART Q - LIFT FRAME, 1PC.
  • Page 16 S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART WB - SHORT SIDE SHROUD, 1PC. PART WC - LONG SIDE SHROUD, 1PC. PART #60 - FOOT PAD, 4PCS.
  • Page 17 S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART #64 - LINEAR BEARING, 4PCS. PART #68 - SELECTOR ROD, 1PC. ø ø...
  • Page 18 S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART #72 - QUICK CABLE LOCK, 1PC. PART #76 - PULLEY, 2PCS. PART #77 - STEEL PLATE, 2PCS. PART #73 - SELECTOR ROD TOP BOLT, 1PC.
  • Page 19 S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART #80 - ROCK CLIMBING HOLD, 2PCS. PART #84 - HANDLE RING, 2PCS. ø...
  • Page 20 S 2 A C D P a r t s L i s t / I l l u s t r a t i o n PART #92 - RETAINER RING, 4PCS. PART #88 - POP PIN, 1PC. PART #89 - SLEEVE, 1PC. PART #93 - ADJUSTMENT PLATE, 1 PCS.
  • Page 21 N o t e s...

  • Page 22: Assembly Instructions

    S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 23 S T E P Above shows Step 1 assembled and completed. 50 40...
  • Page 24 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 25 S T E P Above shows Step 2 assembled and completed.
  • Page 26 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 27 S T E P Above shows Step 3 assembled and completed.
  • Page 28 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware first in this step. Wrench tighten ALL hardware at the end of and after STEP 4B. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 29 S T E P Above shows Step 4 assembled and completed. 41 51...
  • Page 30 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as- sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 31 S T E P Above shows Step 5 assembled and completed.
  • Page 32 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as- sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 33 S T E P Above shows Step 6 assembled and completed.
  • Page 34 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Wrench tighten ALL hardware at the end of Each Step. Some components may be pre-as- sembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
  • Page 35 S T E P Above shows Step 7 assembled and completed.
  • Page 36 N o t e s PCL Badge Location...

  • Page 37: Exploded View

    S 2 A C D E x p l o d e d V i e w 9 41 41 51 20 83 51 41 41 51 85 20...

  • Page 38: Contact Page

    Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product. Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
