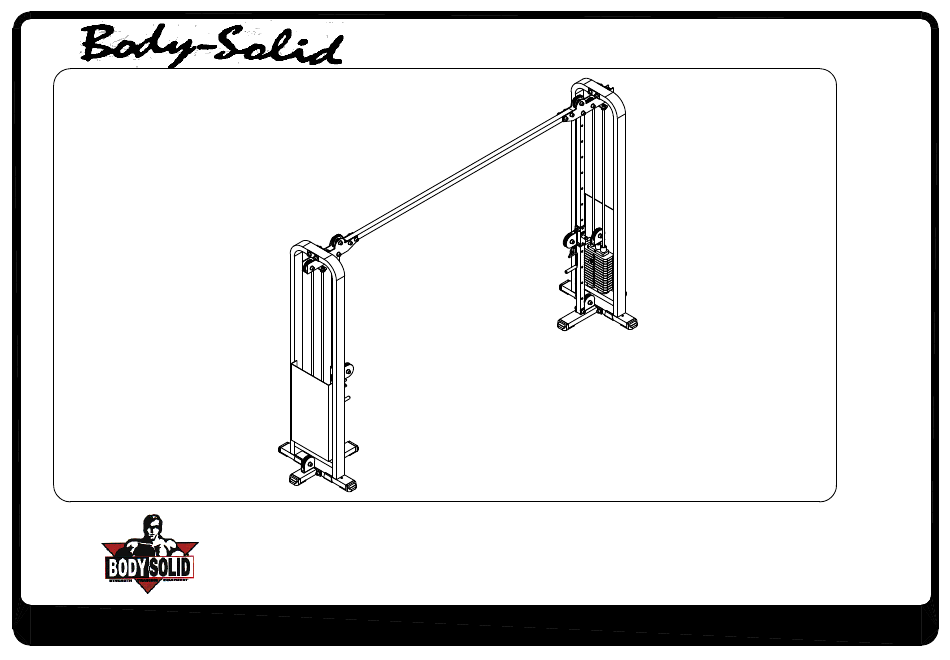

- Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com SCC-1200G OWNER'S MANUAL...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
- Page 3 I m p o r t a n t S a f e t y I n s t r u c t i o n s Before beginning any fitness program, you should obtain a complete physical examination from your physician. Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
- Page 4 SCC-1200G ASSEMBLY INSTRUCTIONS (A1)ROUND ALLEN HEAD 7/16"x1-1/2"L PARTIAL THREAD QTY.2 (A2)HEX BOLT 1/2"x1 1/2"L-13UNC PARTIAL THREAD QTY.2 (A3)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.8 (A4)HEX BOLT 1/2"x3 1/4"L PARTIAL THREAD QTY.14 SCC1200G-092013 Page 1.1...
- Page 5 ASSEMBLY INSTRUCTIONS SCC-1200G (A5)HEX BOLT 1/2"x5"L PARTIAL THREAD QTY.4 (A6)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.4 (A7)HEX BOLT 1/2"x6 1/4"L PARTIAL THREAD QTY.2 Page 1.2 SCC1200G-082005...
- Page 6 ASSEMBLY INSTRUCTIONS SCC-1200G (A8)10LB PIN(8250-021) QTY.2 (A9)ELASTIC BOLT QTY.2 Page 1.3 SCC1200G-082005...
- Page 7 ASSEMBLY INSTRUCTIONS SCC-1200G (C2)1/2"(I.D.)SPRING WASHER QTY.2 (B1)NYLON LOCK NUT 1/2" QTY.32 (B2)LOCK NUT 1/2"-13UNC QTY.2 (C1)1/2"(I.D.)ROUND END CAP WASHER QTY.60 SCC1200G-082005 Page 1.4...
- Page 8 SCC-1200G ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D1.1/2" BOLT CAP(9212-024)------------------------[60PCS] 4 1/2" PULLEY(9213-010A)-----------------------[6PCS] 4 1/2" PULLEY(9213-010B)-----------------------[8PCS] D4.2"x4" FOOT CAP(9211-028)-------------------------[8PCS] 4" RUBBER DOUNT(9310-017)-----------------[4PCS] D6.STIRRUP HANDLE(8290-002)---------------------[2PCS] D7.SPRING SNAP LINK(8810-001)--------------------[2PCS] 3/4" SHAFT COLLAR(9211-050)----------------[4PCS] D9.WEIGHT SELECTOR BAR(8220-061)-----------[2PCS] D10.CHROME TOP PLATE(8400-002)---------------[2PCS] D11.8300mm STEEL CABLE----------------------------[2PCS] D12.60X50 NYLON BUSHING(9211-033)-----------[4PCS]...
- Page 9 ASSEMBLY INSTRUCTIONS SCC-1200G PARTS ILLUSTRATION SHEET D[2PCS] TOP PULLEY FRAME A[2PCS] WEIGHT STACK FRAME B[2PCS]UPRIGHT PILLAR C[1PCS] TOP CROSS SUPPORT E[2PCS] BOTTOM PILLAR FRAME F[2PCS] BOTTOM PULLEY FRAME G[2PCS] MIDDLE PULLEY HOLDER SCC1200G-122010 Page 3...
-
Page 10: Hardware Illustration
ASSEMBLY INSTRUCTIONS SCC-1200G HARDWARE ILLUSTRATION H[1PCS] J[2PCS]8323-014 L[2PCS]9220-009 ADJUSTABLE CROSSOVER FRAME TOP PLATE PULLEY FRAME PROTECT PLABK K[1PCS] I[4PCS]8280-004 ADJUSTABLE CROSSOVER FRAME CHROME GUIDE ROD SCC1200G-122010 Page 4... -
Page 11: Cable Crossover
SCC-1200G ASSEMBLY INSTRUCTIONS CABLE CROSSOVER NOTE: DO NOT TIGHTEN NUTS Step - 5 - Use this step on both sides. AND BOLTS SECURELY UNTIL YOU HAVE COMPLETED ALL ASSEMBLY STEP *Attach D2 Pulley to inside of D Top Pulley Frame. - Page 12 SCC-1200G ASSEMBLY INSTRUCTIONS Above shows STEP 1 D13x2 D4x2 assembled and completed D1x4 D4x2 A6x4 C1x4 D13x2 D4x2 D4x2 D14x2 C1x4 D14x2 B1x4 D1x4 SCC1200G-122010 Page 6...
- Page 13 ASSEMBLY INSTRUCTIONS SCC-1200G D1x4 B1x4 C1x4 C1x4 A5x4 Above shows STEP 2 D1x4 assembled and completed D8x2 D8x2 D10x2 *:Before the assembling of the weight stacks: D5x2 D5x2 Finish (step 1) and adjust the distance between the two bases to 3307mm(130in)
- Page 14 ASSEMBLY INSTRUCTIONS SCC-1200G D1x4 B1x4 C1x4 C1x4 A4x4 D1x4 D1x2 B1x2 C1x2 Above shows STEP 3 D1x2 assembled and completed B1x2 C1x2 C1x2 A4x2 D1x2 C1x2 A4x2 D1x2 SCC1200G-122010 Page 8...
- Page 15 SCC-1200G ASSEMBLY INSTRUCTIONS A2x2 D1x2 C1x2 B1x2 C1x2 B2x2 A3x2 C2x2 D1x2 Above shows STEP 4 assembled and completed D1x2 D3x2 B1x2 C1x2 C1x2 A3x2 D1x2 C1x2 A1x2 B1x2 D1x2 D9x2 D3x2 A8x2 C1x2 A3x2 SCC1200G-122010 DETIAL A Page 9...
- Page 16 ASSEMBLY INSTRUCTIONS SCC-1200G D2x6 C1x6 B1x6 D1x6 C1x6 D7x2 A4x6 Above shows STEP 5 D6x2 D1x6 assembled and completed SCC1200G-122010 Page 10...
- Page 17 SCC-1200G ASSEMBLY INSTRUCTIONS Cable to constitute illustration *:NEED TO LOOSEH BOTH ALLEN HEAD BOLT IN ORDER TO REMOVE SHAFT SCC1200G-122010 Page 10.1...
- Page 18 SCC-1200G ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed SCC1200G-082005 Page 11...
