Interlogix AdvisorOne Panel Quick Installation Manual
Hide thumbs
Also See for AdvisorOne Panel:
- Quick operation manual (10 pages) ,
- Installation sheet (4 pages) ,
- User manual (122 pages)
Related Manuals for Interlogix AdvisorOne Panel
Summary of Contents for Interlogix AdvisorOne Panel

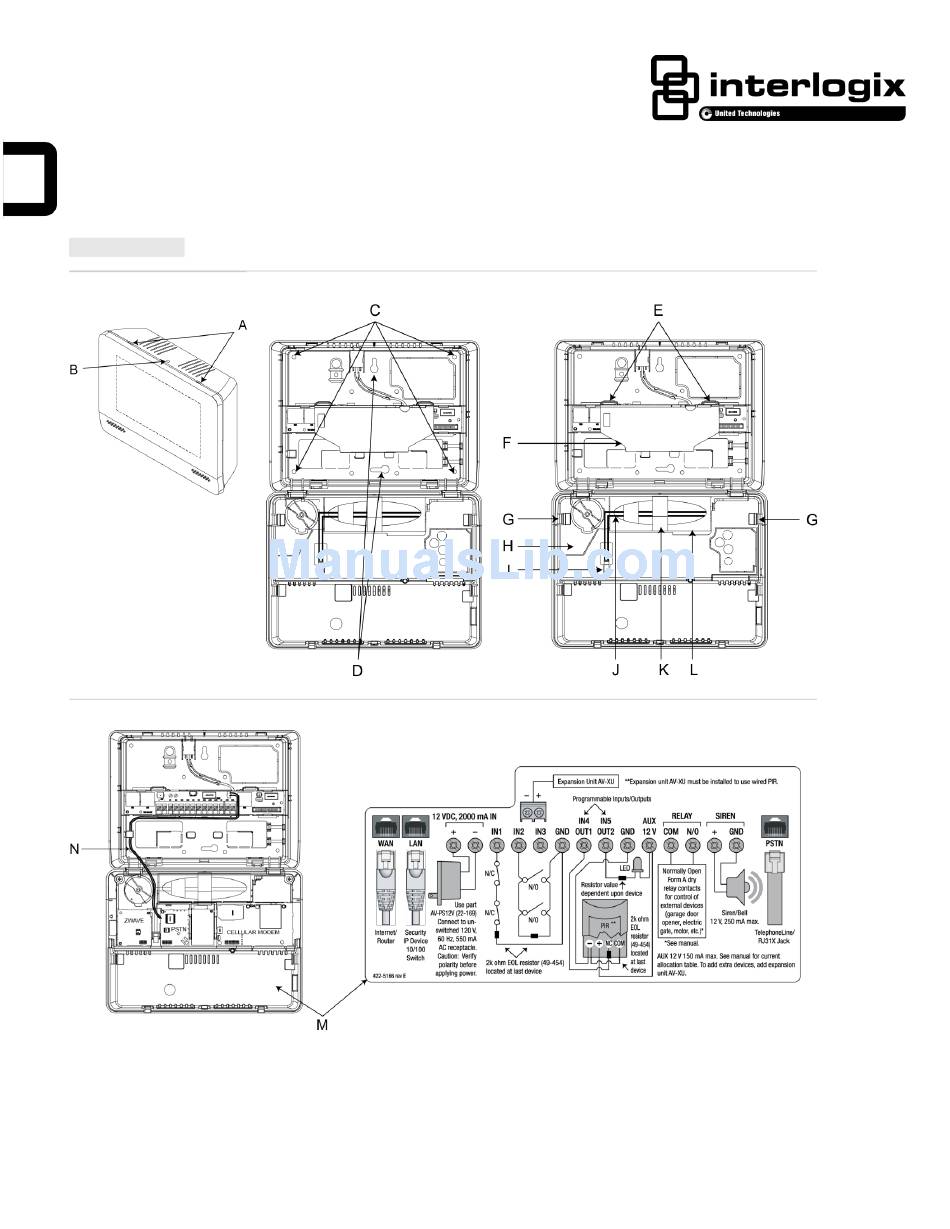

- Page 1 AdvisorOne Panel Quick Installation Guide EN CNF ES PR Figure 2. Panel Mounting Holes Figure 3. Panel With Covers Figure 1. Panel Figure 4. Panel Connections P/N 466-4403 Rev M 16SEP2015 1 / 18...
-
Page 2: System Overview
(P/N AVO-1037). The system can support up to 100 wireless sensors (a maximum of 40 of which may be a combination of Smoke and/or CO detectors), 250 user codes, and 250 key fobs. To support normal system operation, the AdvisorOne panel must be connected to the Internet over a Broadband connection (either wired or Wi-Fi). - Page 3 Wiring External Contacts The AdvisorOne panel has five inputs labeled IN1 - IN5 (see M, wiring diagram in Figure 4) that are used for connecting devices to the panel. IN1 - IN3 are dedicated inputs. IN4/OUT1 and IN5/OUT2 can be configured as either inputs or outputs, depending on system programming configuration.
- Page 4 Note that the cable connector locks into place. Close the panel, making sure all tabs are engaged. Install the screw securing the panel chassis (B in Figure 1). 10. Remove the film cover from the touch screen. 4 / 18 AdvisorOne Panel Quick Installation Guide...
- Page 5 Date, and Dealer Provides sensor status for all Information. monitored Doors, Windows, Motions, Property, and Assets. Folder Displays application and alarm information. Bottom Bar Provides access to system status, settings, applications, and arming options. AdvisorOne Panel Quick Installation Guide 5 / 18...
- Page 6 System Programming and Configuration The AdvisorOne panel provides the main processing unit for all system functions. The programming of system options and features is menu-driven. Access is managed by codes. Interlogix recommends the following standard programming sequence: learn sensors, add users, configure communications, configure system options, and configure applications.
- Page 7 Press ADD. Select the installation method: • Direct Device Install – Select if you are adding the Z-Wave device directly to the AdvisorOne panel. This is the typical mode when the device is physically close to the panel. • Inclusion Device Install – Select if you are adding the device through an inclusion controller. Refer to the specific Z-Wave device manual for more information.
- Page 8 Wi-Fi capability will support connection to Advisor Touchscreens over Wi-Fi and/or approved wireless IP cameras. For more information on how to program the Wi-Fi capability to interface to a wireless IP device such as IP cameras or touchscreens, refer to the AdvisorOne Panel Install & Programming Manual (P/N 466-4405). Bluetooth Devices...
-
Page 9: System Tests
Notify the central station when executing any test procedure. When testing is complete, notify the central station. Otherwise, authorities could be dispatched to the site and fines levied. Sensor Testing Test the sensors and key fobs after all programming is completed and whenever a sensor-related problem occurs. AdvisorOne Panel Quick Installation Guide 9 / 18... - Page 10 Test an emergency panic icon and trip at least one sensor of each type (fire, intrusion, etc.) to verify that the appropriate alarms are working correctly. There could be a delay depending upon system configuration. 10 / 18 AdvisorOne Panel Quick Installation Guide...
-
Page 11: Specifications
-29 to 140ºF (-34 to 60ºC) without battery 14 to 86ºF (-10 to 30ºC) with battery one year shelf life Operating Temperature 32 to 122ºF (0 to 49ºC) Maximum Humidity 85% relative humidity, noncondensing AdvisorOne Panel Quick Installation Guide 11 / 18... -
Page 12: Regulatory Information
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Telecommunications This equipment complies with Part 68 of the FCC rules and the requirements adopted by ACTA. 12 / 18 AdvisorOne Panel Quick Installation Guide... -
Page 13: Contact Information
Limitation of Liability To the maximum extent permitted by applicable law, in no event will Interlogix be liable for any lost profits or business opportunities, loss of use, business interruption, loss of data, or any other indirect, special, incidental, or consequential damages under any theory of liability, whether based in contract, tort, negligence, product liability, or otherwise. - Page 14 CO Detector TX-6310-01-1 is Listed by ETL. Not evaluated to SIA Standards by UL. • Key Fob 600-1054-95R has not been investigated for use by UL. • Recent closing enabled (2-minute window). • Install according to NEC (NFPA 70) and any local ordinances. 14 / 18 AdvisorOne Panel Quick Installation Guide...
- Page 15 Power Supply (UPS), standby battery, or the control unit, capable of facilitating 24 h standby. UL 1635 Digital Alarm Communicator System Requirements: • Auto test period set to 001 day • Long supervision timeout set to 4 hours AdvisorOne Panel Quick Installation Guide 15 / 18...
- Page 16 Connect the ground wire from the siren to a ground terminal on the panel. To program the warning siren: Press the Settings icon on the lower left of the main screen. Press CONFIGURATION to enter programming. 16 / 18 AdvisorOne Panel Quick Installation Guide...
- Page 17 Enabled unless sensors can self-verify Call waiting cancel Disabled Enabled if user has call waiting Alarm Cancel Window Non-Programmable Enabled (factory set to 5 minutes) Cancel Alarm Enter Code Only Enter code only AdvisorOne Panel Quick Installation Guide 17 / 18...
- Page 18 Note: Do not mount the alarm to the metal runners of suspended ceiling grids. The metal runners can draw the magnet’s field away from the alarm’s reed switch and cause a false tamper alarm. 18 / 18 AdvisorOne Panel Quick Installation Guide...
