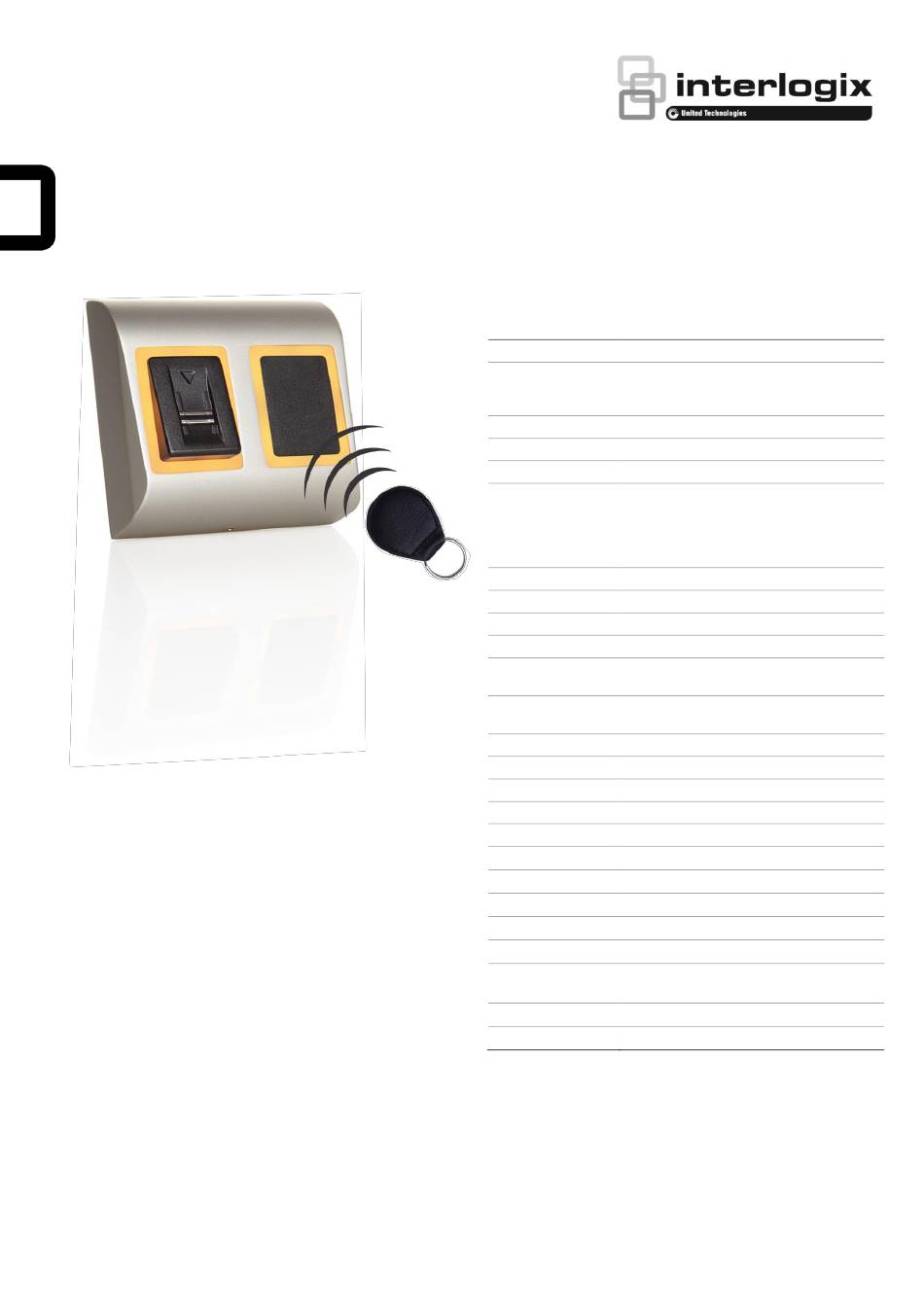

Interlogix ACL800SUW-BSMF Installation Manual

ACL800SUW-BSMF- Biometric Swipe Mifare
Reader - Installation Manual
Description / Operation

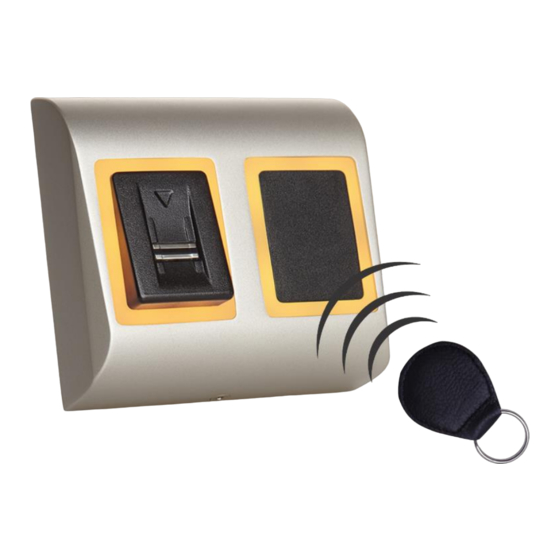

ACL800SUW-BSMF is a Wiegand biometric and Mifare reader
for access control applications with programmable wiegand
output. It offers storage of up to 100 fingerprints, it reads Mifare
Classic 1K & 4K, Ultralight, DESFire cards/tags and has a
programmable Wiegand Output (24 to 80 bits). Configuration of
the readers and fingerprint enrollment is done through the
ACL800 BioManager software.
Connection between the biometric readers is RS485 and it is
used for fingerprint transfer and configuration.
The connection between the biometric readers and the PC is
done through ACL800FL-CONV-W converter (RS485 to
TCP/IP). Only one converter is needed per system and
supports up to 31 biometric readers.
The tamper switch output can trigger the alarm system, if an
attempt is made to open or remove the unit from the wall. The
sensor incorporates dedicated sensing hardware to facilitate
the detection of "spoofing" attacks based on fake fingers. This
data is embedded into the image data stream, and is
processed on the processor. The system is capable of
detecting and defeating well-known fake finger mechanisms,
such as molded "gummy" fingers. The coating on the surface
of the swipe chip sensor provides protection from scratching
and abrasion due to normal contact with fingertips and any
incidental contact with fingernails.
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
Specifications
Fingerprint capacity Up to 100 fingerprints
Biometry and Mifare (13,56 Mhz, Mifare
Technology Classic 1K & 4K, Ultralight, DesFire ,
selectable by dipswitch)
Use Outdoors
Authentication Finger, card, finger or/and card, finger on card
Fingerprints per user 1-10 fingerprints
- Mifare Classic 4UID 1K & 4K (7UID
converted to 4UID)
Mifare reading type
- Mifare Ultralight 4UID 1K & 4K (7UID
converted to 4UID)
- DESFire EV1/EV2 2K, 4K & 8K
Reading distance 1.5 to 5.5cm
Interface
Wiegand 24 to 80 bits; default: Wiegand 26bit
Protocol programming
By ACL800 BioManager software
Cable distance 50 m
Fingerprint Sensor
Swipe capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrolment On the reader or from the USB desktop reader
Panel Connection Cable, 1m
Green and Red LED Externally controlled
Orange LED Idle mode
Buzzer ON/OFF Yes
Yes, by software setting
Backlight ON/OFF
Yes
Tamper
160 mA
Consumption
65
IP Rating
9 to 14 VDC
Power supply
Operating
-20 to +50°C noncondensing
Temperature
100 x 94 x 30 mm
Dimensions
Moulded aluminium
Housing
P/N 1073503A• REV 01.01 • ISS 11SEP18
