Summary of Contents for Toa C-CH100

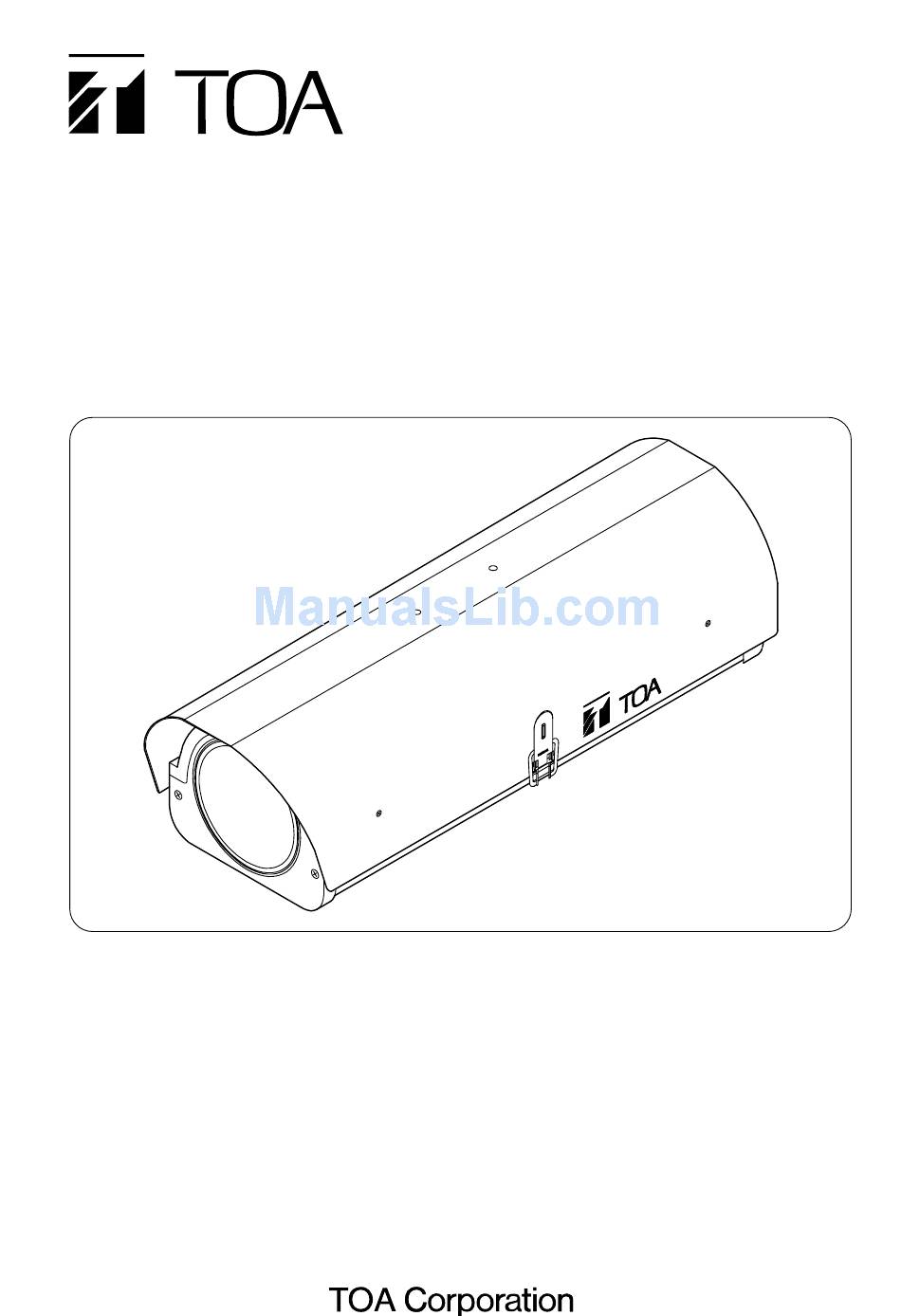

- Page 1 OPERATING INSTRUCTIONS OUTDOOR CAMERA HOUSING C-CH100 C-CH100FH Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
......8.2.3. Connection when using the C-CH100FH in combination with the 24 VAC camera ........ 8.2.4. Connection when using the C-CH100 in combination with the 24 VAC camera ........ 9. SAFETY WIRE INSTALLATION ................ -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS • Be sure to read the instructions in this section carefully before use. • Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. •... -
Page 4: General Description
2. GENERAL DESCRIPTION TOA's C-CH100 and C-CH100FH are rainproof outdoor camera housings to protect video cameras and their lenses from a direct sunlight, rain and wind. The C-CH100FH comes with a heater and fan. 3. HANDLING PRECAUTIONS • Avoid applying extremely strong force to the unit when opening or closing the camera housing cover. -
Page 5: Installation Examples
5. INSTALLATION EXAMPLES The housing can be mounted to the wall or ceiling using optional brackets and mounting hole ⑨ or ⑩. 5.1. Wall Mounting 5.1.1. Fixed camera orientation C-BC100K (option) 5.1.2. Use of Pan/Tilt Drive C-PH200 (option) Use suitable mounting holes in the pan/tilt drive to mount. -
Page 6: Opening And Closing The Camera Housing Cover (Sunshade)
6. OPENING AND CLOSING THE CAMERA HOUSING COVER (SUNSHADE) ⑦ Lock release button Lock Close Push ② Cover (Sunshade) ⑦ Lock release button Lock Close Close Lock ⑧ Stay ⑧ Stay Lock Lock ③ Latch catch (with key hole) Close Close ①... -
Page 7: Hanging Installation Procedure
6.2. Hanging Installation Procedure 6.2.1. Opening the cover 1. While holding the bottom of the camera housing base ① with one hand, undo the cover latches ③ and slowly lower the base to its full stop. Note: Failure to hold the base when undoing the latches could result in the base falling suddenly and possibly damaging the camera. -
Page 8: Connections
Be sure to use an optional 24 VAC adapter (CC-5941B) for 24 VAC power. Failure to do this could cause fires. Note: Power must be switched on after connection completion. Fan (not mounted in the C-CH100) ⑪ Cord entry bushing ⑫ Cord entry bushing Power input terminal block 8.1. -
Page 9: When Using The Outdoor Pan/Tilt Drive C-Ph200
Insulate unused solderless terminals with heat-contracted tube or tape. 8.2.2. Connection when using the housing in combination with the single-cable camera Power input terminal block inside the housing When using the C-CH100, wires do not need to be connected. Single-cable camera Housing cable... -
Page 10: Connection When Using The C-Ch100Fh In Combination With The 24 Vac Camera
Remove solderless terminals. Camera Housing cable Zoom lens Connector (supplied with the zoom lens) 8.2.4. Connection when using the C-CH100 in combination with the 24 VAC camera Power input terminal block Attach the BNC plug. inside the housing No wiring is required. -
Page 11: Camera Installation Procedure
10. CAMERA INSTALLATION PROCEDURE Camera with a standard or wide angle lens Camera with a zoom lens Plain washer Spring washer Camera mounting plate Camera mounting bolt Butterfly bolt ① Base Lens orientation Auxiliary mounting holes for butterfly bolts 1. Detach the camera mounting plate from the housing base ①. 2. -
Page 12: Specifications
11. SPECIFICATIONS Model No. C-CH100 C-CH100FH Power Source – 24 VAC, 50/60 Hz Power Consumption – 25 W Fan/Heater Operating On-off control by thermostat Temperature – Fan: Turns on at over approx. 26°C Heater: Turns on at under approx. 10°C...
