en | Setup
6

Setup

Turn the Bypass switch on to activate the bypass feature.
1

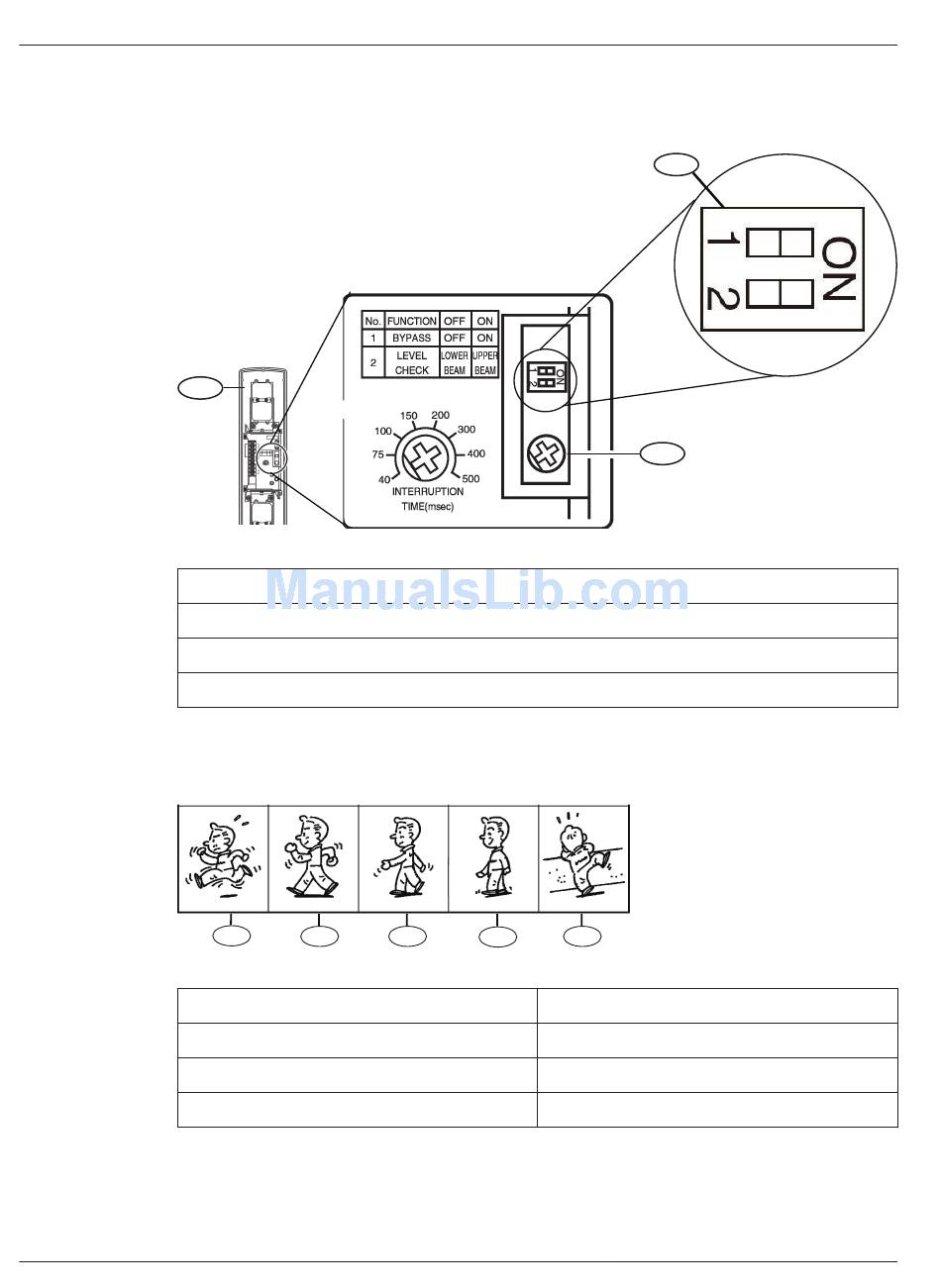

Figure 6.1: Receiver Bypass switch
Callout ー Description
1 ー Receiver
2 ー Bypass switch (switch 1)
3 ー Sensitivity control
Interruption time
Turn the sensitivity control on the receiver clockwise to reduce sensitivity and
counterclockwise to increase sensitivity.
Figure 6.2: Interruption time settings
Callout ー Description
1 ー 40 ms running
2 ー 75 ms jogging
3 ー 150 – 200 ms walking
Beam power control
Turn the Beam Power Control on the transmitter clockwise to increase beam power. Turn
counter-clockwise to decrease beam power. Refer to table below. For UL applications, the
interruption time cannot exceed 75 ms.
2016.02 | 03 | F.01U.305.910
1
2
3
Installation and Operation Guide
3
5
4
Callout ー Description
4 ー 300 ms slow walking
5 ー 400 – 500 ms slow walking
Photobeam 5000
2
Bosch Security Systems, Inc.
