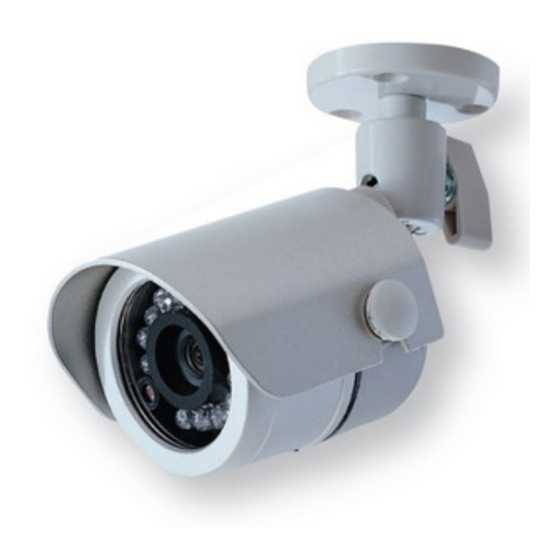

- Page 1 Waterproof Infrared Illumination Camera Instruction Manual 2005/06/30, VER.:1.0, NO.:040057/1...
- Page 2 Thank you very much for purchasing our product. Before operating this product, please read this instruction manual carefully to ensure proper use. 1. Safety Precautious CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE.
- Page 3 3. Feature Built-in high quality CCD camera and high performance infrared illuminator module. Infrared illuminator has effective range of up to 10 (15) meters and wide angle at 70° (80°), also assists cameras in providing a clear image when under completely dark area. Infrared Illuminator has built-in 12 (24) pieces 850nm wavelength infrared Light-Emitting Diode and provides over 6000 hours life.
- Page 4 Item Name of Part Quantity Type A Instruction Manual Infrared Camera Mounting Bracket Bag Base Plate Supporting Arm Mounting Bracket A Appurtenances Bag Fix Retaining Screw for Bracket A Anchor 5. INSTALLATION & OPERATION 1. Use the 3 screws provided to attach the mounting bracket to the surface or wall, assemble all spare parts to the Base Plate and tighten the camera Wing nut (as shown on Figure 1).
- Page 5 2. Screw the Mounting Bracket into the camera mounting post; then adjust the camera to approximate location and tighten the camera wing nut (as shown on Figure 2). Figure 2 Figure 2 3. Connect the Video Output and the Power Input (as shown on Figure 2).
-
Page 6: Specifications
6. SPECIFICATIONS According to the camera purchased, select and refer to the appropriate specification below: Color Camera 1/3” Color 1/4” Color 1/3” Color 1/4” Color Image Device SONY Super SONY Super SHARP SHARP Hi-Res. NTSC: 510x492 NTSC: 512x492 NTSC: 768x494 Picture Elements PAL: 500x582 PAL: 512x582... - Page 7 Infrared Illuminator Module Infrared Luminary 12 IR LED 24 IR LED Filter Tempered Glass Wavelength 850nm 35° 40° Beam Spread Angle Illuminant Distance 10 M 20 M Power Supply 12V DC±10％ Power Consumption System Device Operating Temp. -10℃ to 50℃ (14℉ to 122℉) Construction Aluminum Case Waterproofing...
