Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Control Modes

When using the LED Sphere in stand-alone Mode, you must always set dipswitch #10 to ON.

1. Chase Mode

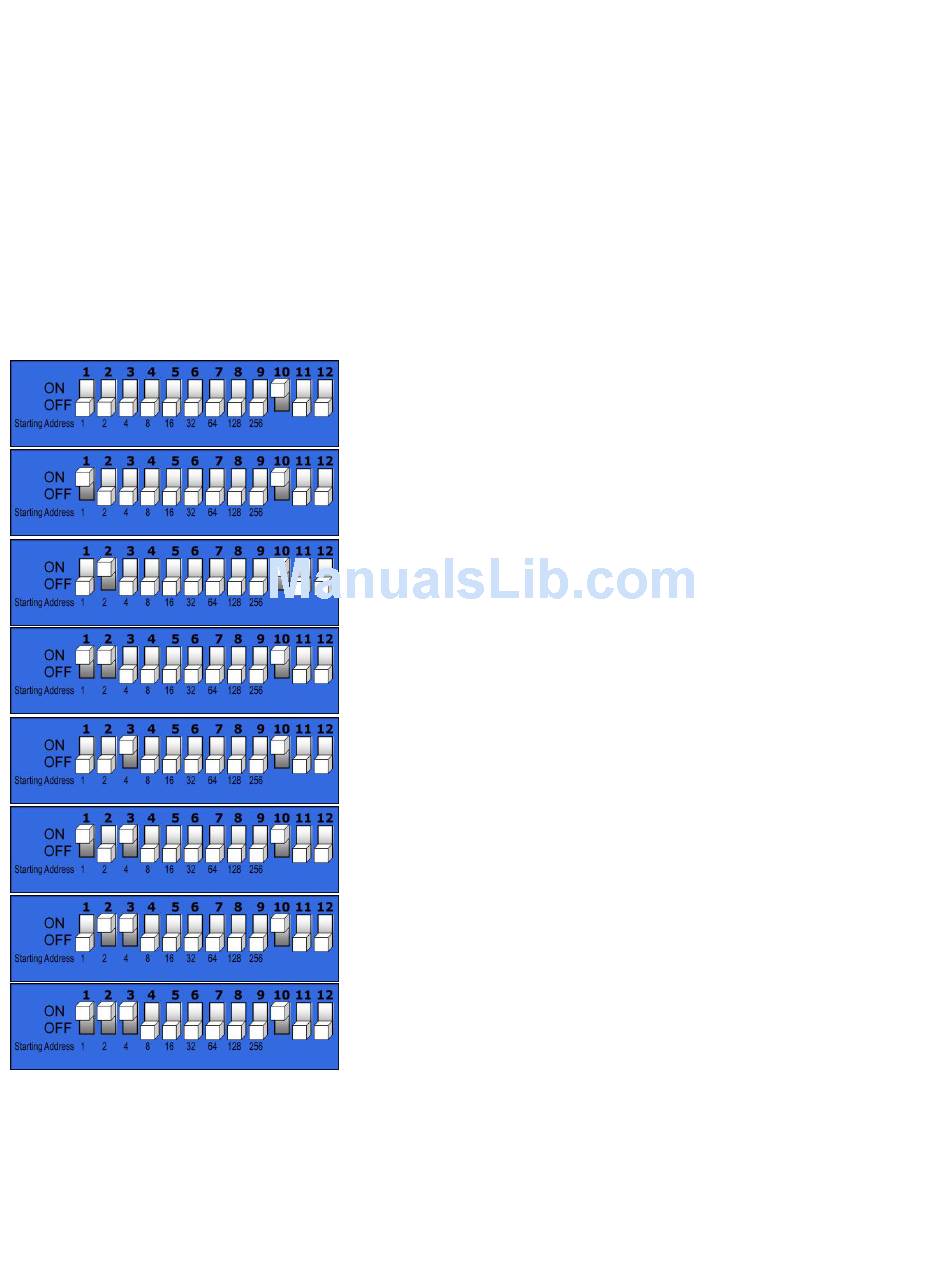

You can use dipswitches #1, #2 and #3 to set 8 different chases.
Note : You must also set dipswitch #10 to ON.
Chase 1 : Red and Green Chase loop
Chase 2 : Green and Blue Chase loop
Chase 3 : Blue and Red Chase loop
Chase 4 : Cyan and Red Chase loop
Chase 5 : Magenta and Green Chase loop
Chase 6 : Yellow and Blue Chase loop
Chase 7 : Black and White Chase loop
Chase 8 : 7 Chases loop
