Description of the device
Features
The LED Sphere Direct Control 30 is designed for the more demanding user:
• 3 DMX Channels (Red, Green, Blue)
• Controllable by DMX or built-in programs.
• Built-in Microphone
• 12 Dipswitches
• Only use Indoor
• RGB colourmixing
• Standalone, music control, Master-slave
• Fuse 1A 250V
• DMX IN and DMX OUT.

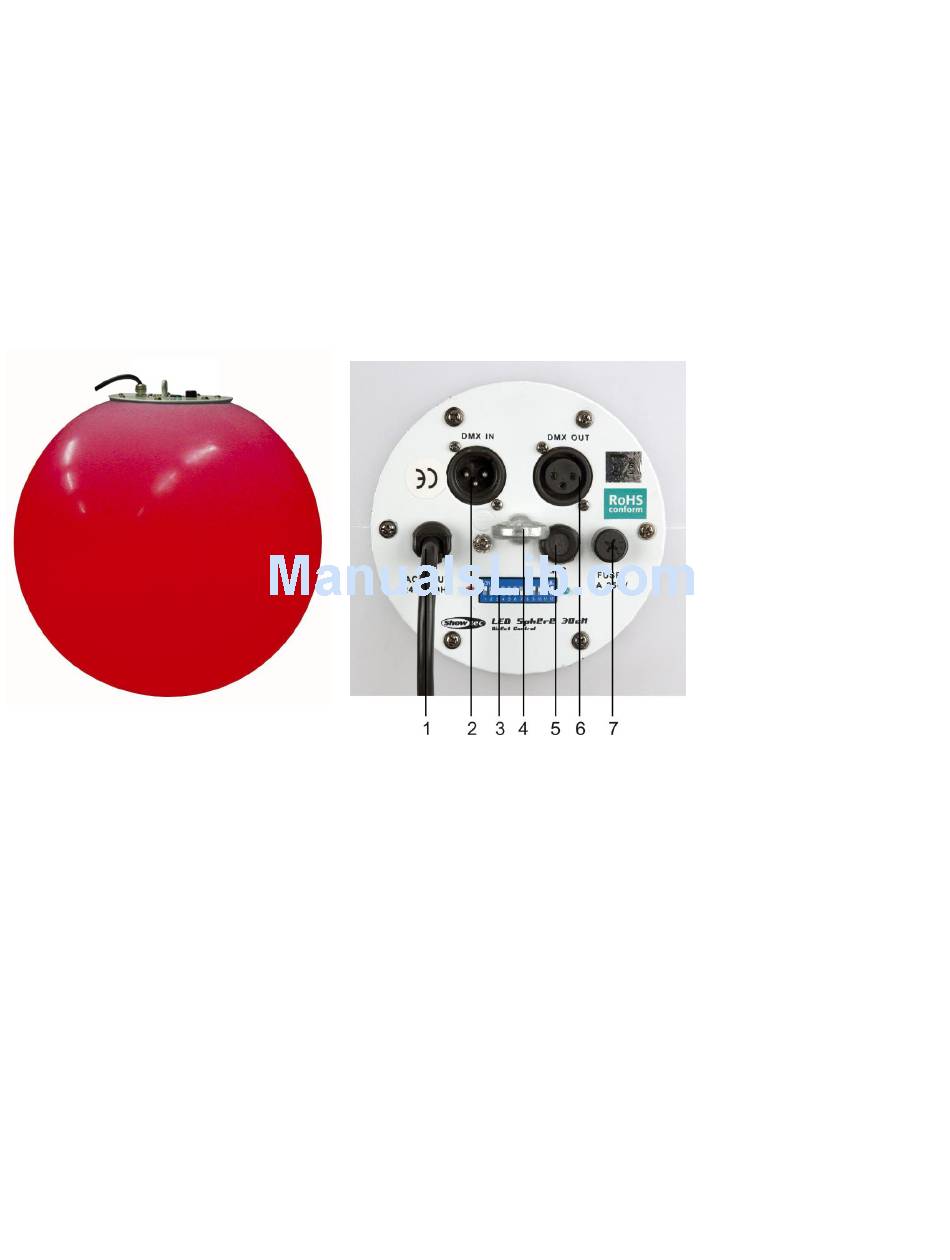

Overview
1) Power cable
2) DMX signal connector (IN)
3) Dipswitches
4) Safety Eye
5) Microphone
6) DMX signal connector (OUT)
7) Fuse 1A 250V

Installation

Remove all packing materials from the LED Sphere Direct Control 30. Check that all foam and plastic
padding is removed. Connect all cables.
Note: It's necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure proper
transmission on the DMX data link.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
4
Fig. 1
