Magic Icecycle
ORDERCODE 43105
Highlite International B.V.
Vestastraat 2
6468 EX Kerkrade
The Netherlands
Phone: +31 45-5667700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magic Icecycle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SHOWTEC Magic Icecycle

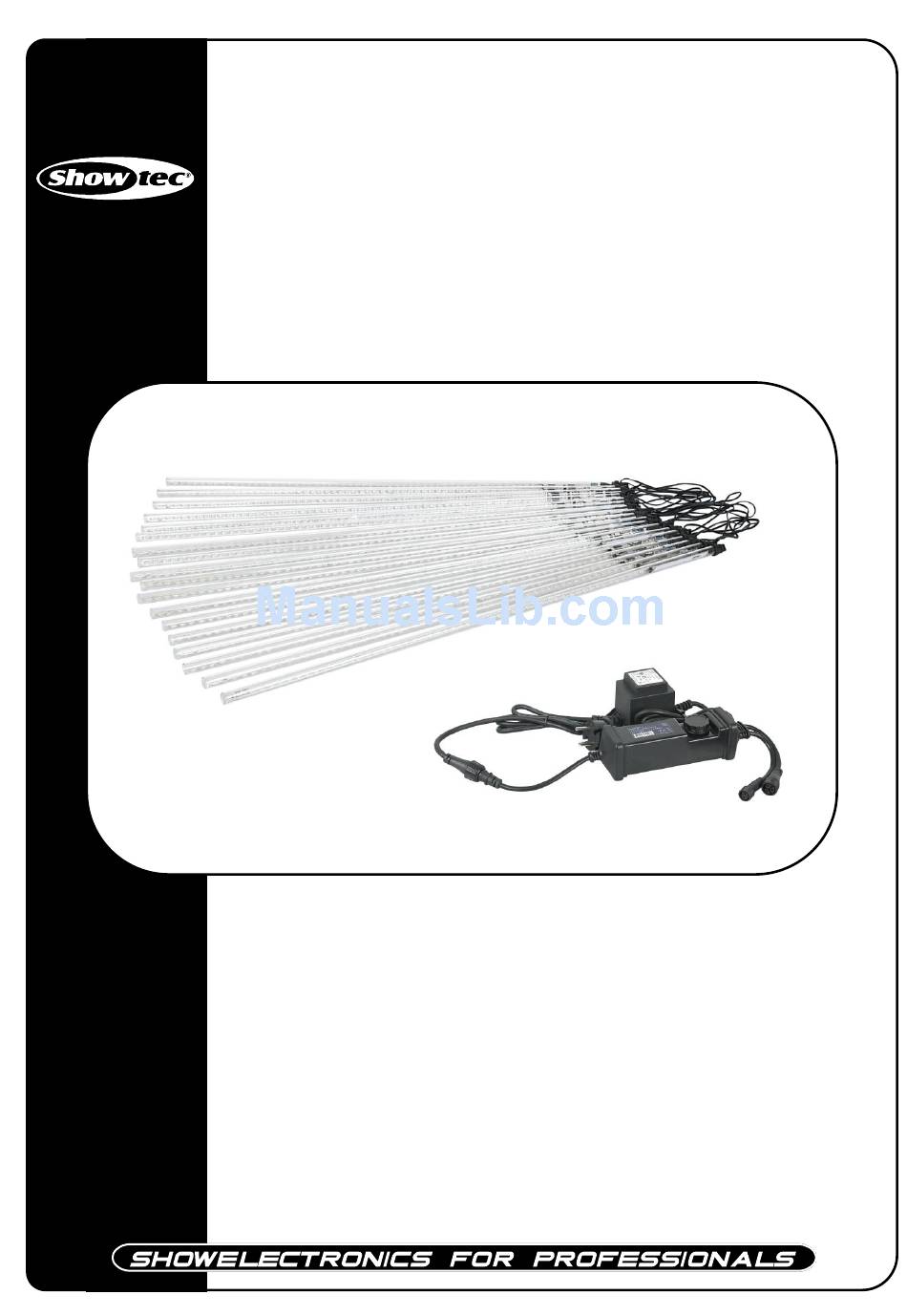

  • Page 1 Magic Icecycle ORDERCODE 43105 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
  • Page 3: Table Of Contents

    Showtec Showtec Magic Icecycle Product Guide ™ Warning ................................... 3 Safety Instructions ..............................3 Operating Determinations ............................5 Rigging ..................................5 Return Procedure ..............................6 Claims ..................................6 Description of the device ............................. 7 Overview ..................................7 Installation ..................................8 Set Up and Operation ..............................
  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Magic Icecycle • Controller • End cap for buffer connector •...
  • Page 5  If the external cable is damaged, it has to be replaced by a qualified technician.  If the Magic Icecycle is obviously damaged, it has to be replaced. So that its functions are not impaired.  Never hit the Magic Icecycle with a hammer or other tools, as this may lead to damage.
  • Page 6: Operating Determinations

    Always let the installation be carried out by an authorized dealer ! Procedure:  If the Magic Icecycle is lowered from the ceiling or high joists, professional trussing systems have to be used.  Use a clamp to mount the Magic Icecycle, with the mounting-bracket, to the trussing system.
  • Page 7: Return Procedure

    Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...
  • Page 8: Description Of The Device

    Description of the device Features The Showtec Magic Icecycle is a light effect with high output and great effects. • Play traditional snowfall effects as well as several other built in effects • Dipswitch selectable programs • Indoor and outdoor use •...
  • Page 9: Installation

    Do not attempt to operate a 120V specification product on 230V power, or vice versa. 1) Carefully unfold the Magic Icecycle and install it. 2) Connect the controller and power supply to the curtain. Make sure that the connectors are plugged in properly, then tighten the nut.
  • Page 10: Coupling Magic Icecycles

    Coupling Magic Icecycles If you want to run more than one Magic Icecycle synchronously, you have to obtain an optional buffer (43105-01) for each additional Magic Icecycle. 1) Connect the controller and the powersupply to the Magic Icecycle as you would do with a single standalone Magic Icecycle.
  • Page 11: Controller

    4) Connect the other side of the (optional) buffer to the second Magic Icecycle and so on. You can connect up to 50 Magic Icecycles in this way. 5) Make sure that each connection is set up properly and tighten the according nuts.
  • Page 12: Maintenance

    5) Replace the rubber seal (10) and reinstall the plastic cover (9). Maintenance The Showtec Magic Icecycle requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
  • Page 13: Troubleshooting

    1. The power supply. Check that the unit is plugged into an appropriate power supply. 2. The controller. Disconnect the controller and connect the power supply directy to the Magic Icecycle. The Magic Icecycle should run the standalone pattern. If the controller is not functioning, return the device to your Showtec dealer.
