LED Spere Direct Control 30
ORDERCODE 41125

Advertisement

Table of Contents
loading

Related Manuals for SHOWTEC led spere direct control 30

Summary of Contents for SHOWTEC led spere direct control 30

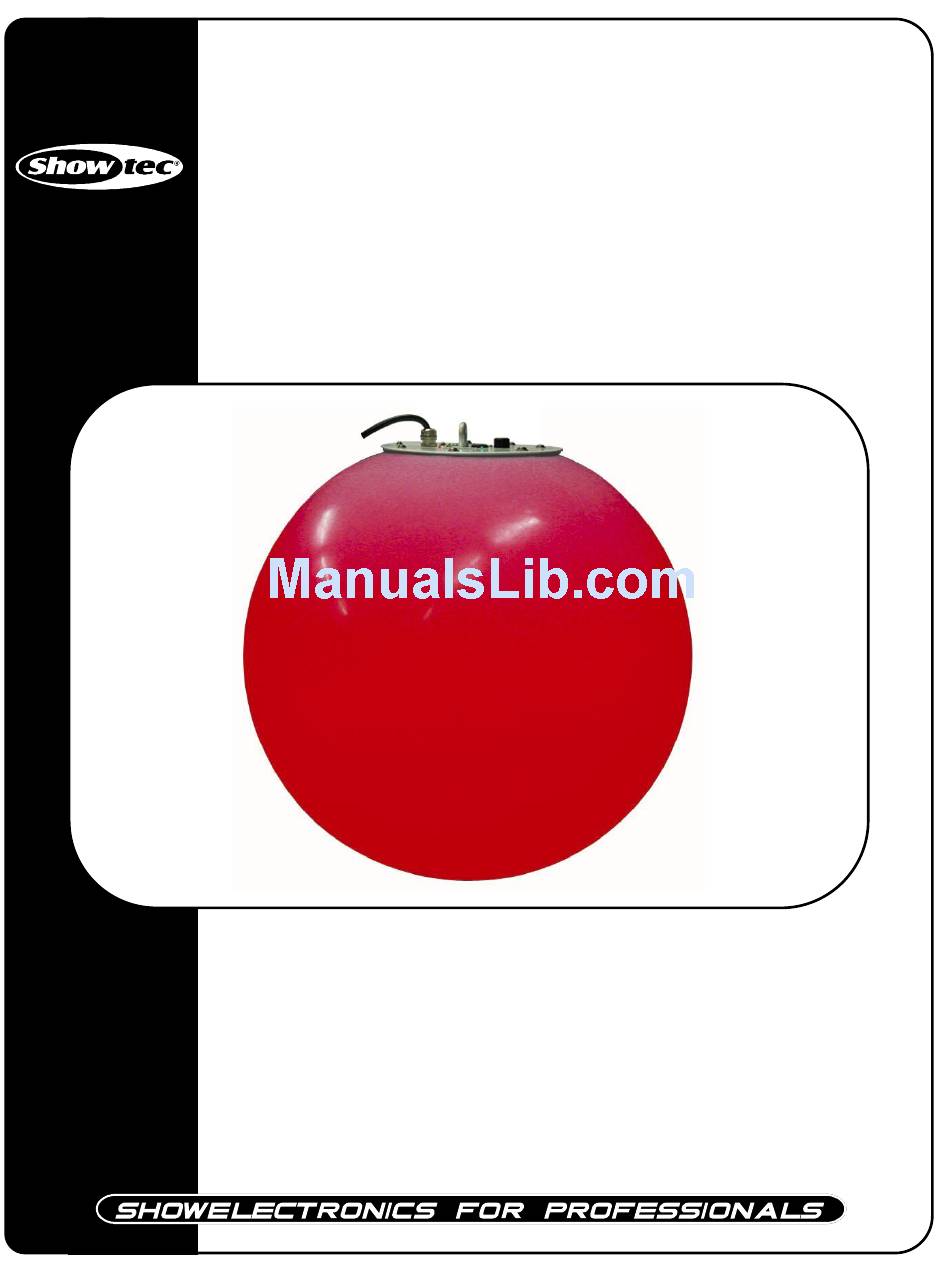

  • Page 1 LED Spere Direct Control 30 ORDERCODE 41125...
  • Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!

  • Page 3: Table Of Contents

    Showtec Showtec LED Sphere Direct Control 30 Product Guide ™ Warning..…...................……………………………………………………….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations……………………………………………………………………………………………… Rigging……………………………………………………………………………………………………………………... Description..…................……….………………………………………………. Features and Overview ………………………………...….……………….………….……….……….……………... Backside…………………………………………………...…...….……………….…………………...…………………. Installation................…...………………………………………….………..…. Set Up and Operation..............……..……………………………………………… Control Modes...……………………………………………………………………………..….……………………..…. Chase Mode….………………………………………………………………………..….……………………..….. Speed Mode………………………………………………………………………..….……………………………. Master/Slave Mode……………………………………………………………..….………………………………. Sound Control Mode…………………………………………………………..….……………………………….. DMX-controlled………………………………………………………………………..….………….…………………… DMX Protocol……………………………………………………………………..….………….…………………………...

  • Page 4: Warning

    WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations.

  • Page 5: Operating Determinations

    The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 6: Description

    Description of the device Features The LED Sphere Direct Control 30 is designed for the more demanding user: • 3 DMX Channels (Red, Green, Blue) • Controllable by DMX or built-in programs. • Built-in Microphone • 12 Dipswitches • Only use Indoor •...

  • Page 7: Set Up And Operation

    Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Control Modes When using the LED Sphere in stand-alone Mode, you must always set dipswitch #10 to ON.

  • Page 8: Speed Mode

    2. Speed Mode You can use dipswitches #4, #5 and #6 to set 8 different chases. Note : Speed mode will only work if you have selected a chase. You must also set dipswitch #10 to ON. Fastest (0,5 sec.) (1,5 sec.) (3 sec.) (4,5 sec.)

  • Page 9: Sound Control Mode

    4. Sound Control Mode When dipswitch #11 is turned on, the LED Sphere will automatically change its color to the beat of the music. With the Sensitivity control you can adjust its music-sensitivity. Note : You must also set dipswitch #10 to ON. DMX Controlled 1.
  • Page 10 DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Sw itch Pos ition DM X Addre s s...

  • Page 11: Dmx Protocol

    DMX Protocol Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue 0-255 Gradual adjustment Blue from 0 – 100% Channel 4 – Dimmer intensity 0-255 From black to brightest Channel 5 –...

  • Page 12: Maintenance

    2. Check power from the wall, all cables, the fuse, etc. 3. If all of the above appears to be O.K., plug the unit in again. 4. If nothing happens after 30 seconds, unplug the device. 5. Return the device to your Showtec dealer.

  • Page 13: Product Specifications

    Product Specification Model: Showtec LED Sphere Direct Control 30 (41125) Total LEDs: 81 (27 red, 36 green, 18 blue) Power Supply: 240V Power Consumption: 12W 3 DMX Channels (Red, Green, Blue) Controllable by DMX or built-in programs. Built-in Microphone Dipswitches...
