Main Headphone Setup; Setting Up Your Main Headphone - Zaxcom Nomad User Manual

NOMAD OPERATIONS

Main Headphone Setup

Setting up your main Headphone

There are 12 individual Headphone matrices available to store a monitor configuration consisting of any combination of
the following:
• Card tracks (C)
• Output Buses (OUT)
• Camera Returns (RET)
• ZaxNet Wireless (ZNET) (not available in Nomad Lite)
To set up your headphone selects:
1. To access the headphone setup matrix - simultaneously press MENU knob and HEADPHONE knob.
2. While in the matrix, scroll the MENU knob to highlight the cross-point you want to choose.
(L selections are sent to the Left ear and R selections are sent to the Right ear)
3. Press the MENU knob to put an X in the matrix.
4. Select the E to enable that setup to be active when toggling through while listening.
5. Press the Headphone knob to advance to the next matrix.
6. To exit, press and hold the
7. You can also add a custom name to each setup. Go to the ENG Setup page and select MONITOR NAME
NOTE: To add the optional phase invert - press the STAR key. Then by pressing the MENU knob, you
will be able to cycle through the selections with phase invert.
Power cycling the unit will reset it to NO INVERSION mode but keep your phase invert choice.
Headphone matrix setup to decode MS stereo:
The following is the proper setting for M-S headphone decoding. This example uses card track 1 as the Mid and
card track 2 as the Side:
Allows you to monitor ZaxNet Frequencies directly
NOTE: You can only choose one ZaxNet Frequency at a time.
IFB RX Channel Setup page
(click
HEADPHONE
)
knob.
62

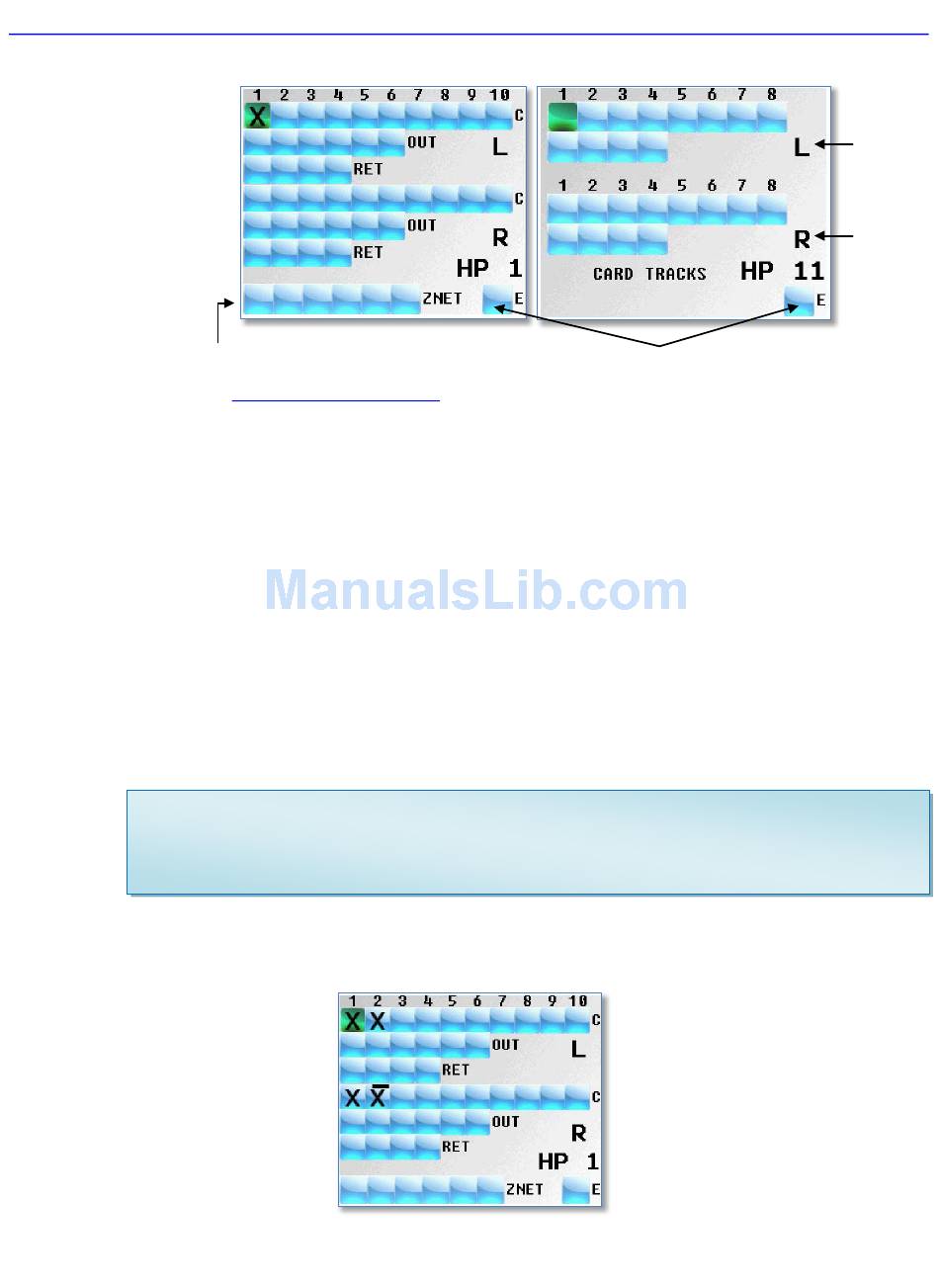

Headphone Setup
Check the Enable box to include this
monitor configuration while cycling
through the HP selections.
Left Ear
Right Ear
