Home Screen Explained

Headphone Selection

ENG Panning shortcut Matrix
Input/Virtual Fader Meter

Transport Status field

Displays the current operating mode RECORD,

Timecode field

Displays the current timecode.

MP3 Indicator

Displays if your files are being marked to write as an MP3 file.
Headphone Selection
Displays which headphone setup is being monitored.
• Once the PFL key is pressed, the name in the Headphone Monitor field is replaced with "PFL" alternating with the
selected channel number(s) as follows:
• Press the corresponding multi-function key to select a channel to PFL. If you want to listen to multiple channels at
the same time, just press and hold an additional multi-function key for approximately 1 second to add that channel
to the PFL circuit.
• Press the HEADPHONE knob to restore normal headphone monitoring.

Battery Indicator

Displays the power source (I – Internal / E - External), a numeric display of the current voltage

Save Indicator

A moving pixel on bottom of screen moving right to left indicates that the Nomad is saving a parameter setting to its
memory. If you power down while the pixel is moving the settings will not be saved.

Card Information Field

Top Line - Mirror Card Free Space
Displays available Mirror Card space
Second Line - Mirror File Progress
Displays what percentage of mirroring is left
Third Line
• Time left on the Primary Card
• Segment number and total running time of current take being recorded.
• Mirror process – File number currently being written to the Mirror Card
• Mirror Status (ON, OFF or Continuous)
Transport Status
Battery Indicator
- This line will alternate between:
MP3 Recording Indicator
PLAY or STOP.
14

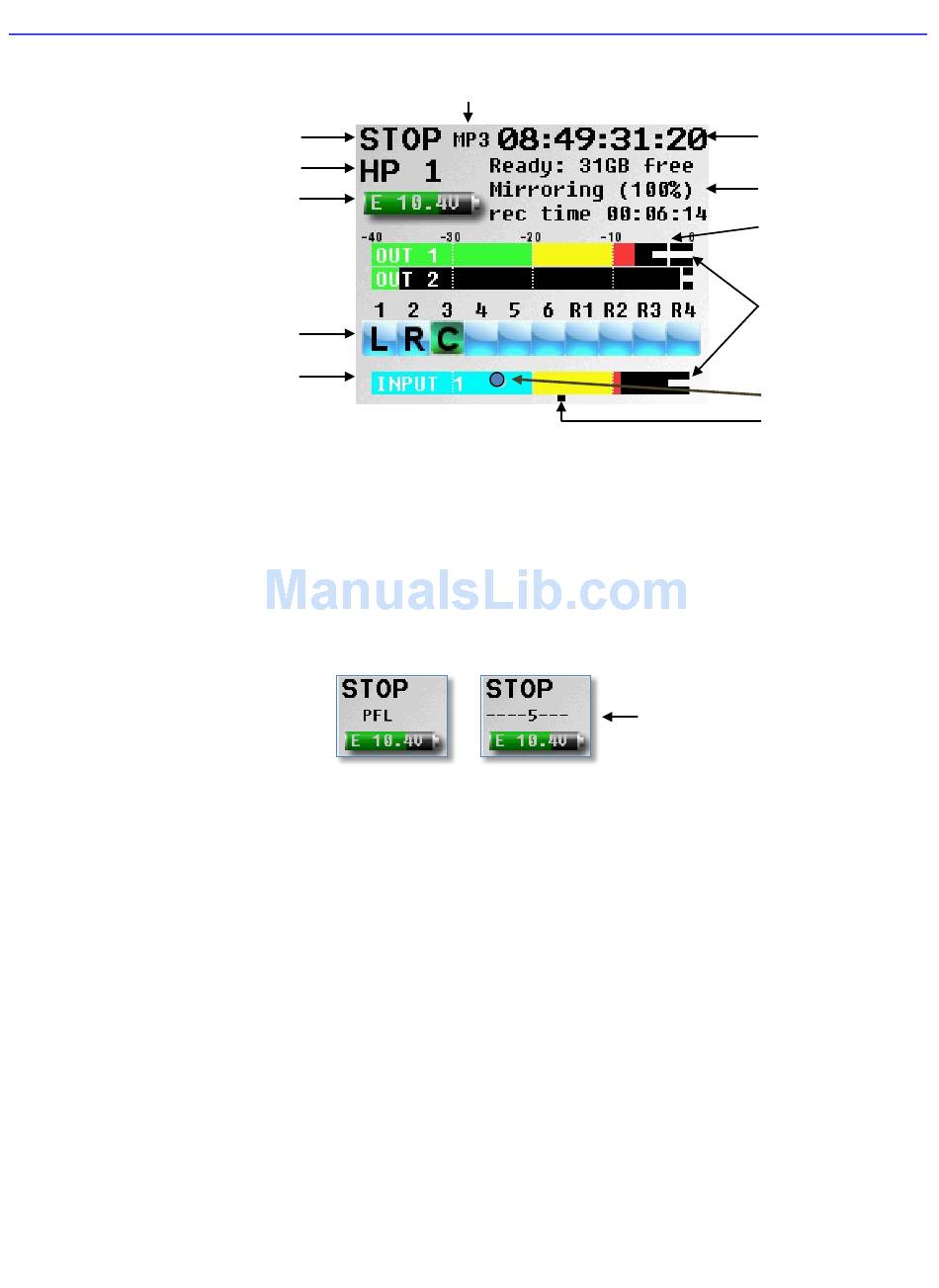

Meters / Home Screen
Timecode
Card information field
Peak Hold Indicator
Limiter reduction indicators
Trim Level Indicator
Save Indicator
Shows which inputs are
being listened to pre fader
