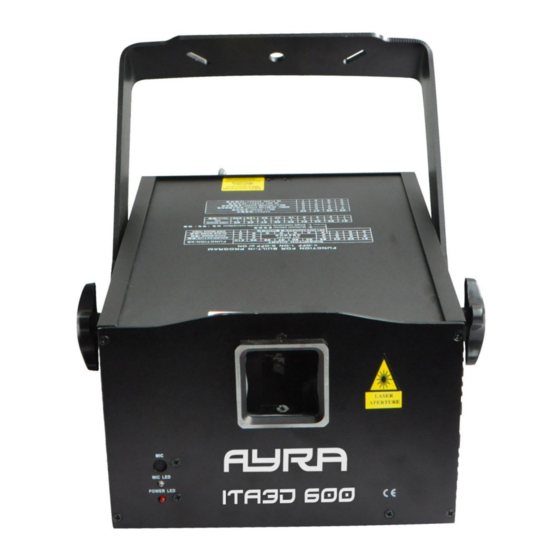

Ayra ITA3D 600 User Manual

Rgb ilda laser with effect wheel
Hide thumbs

Advertisement

Quick Links

Download this manual

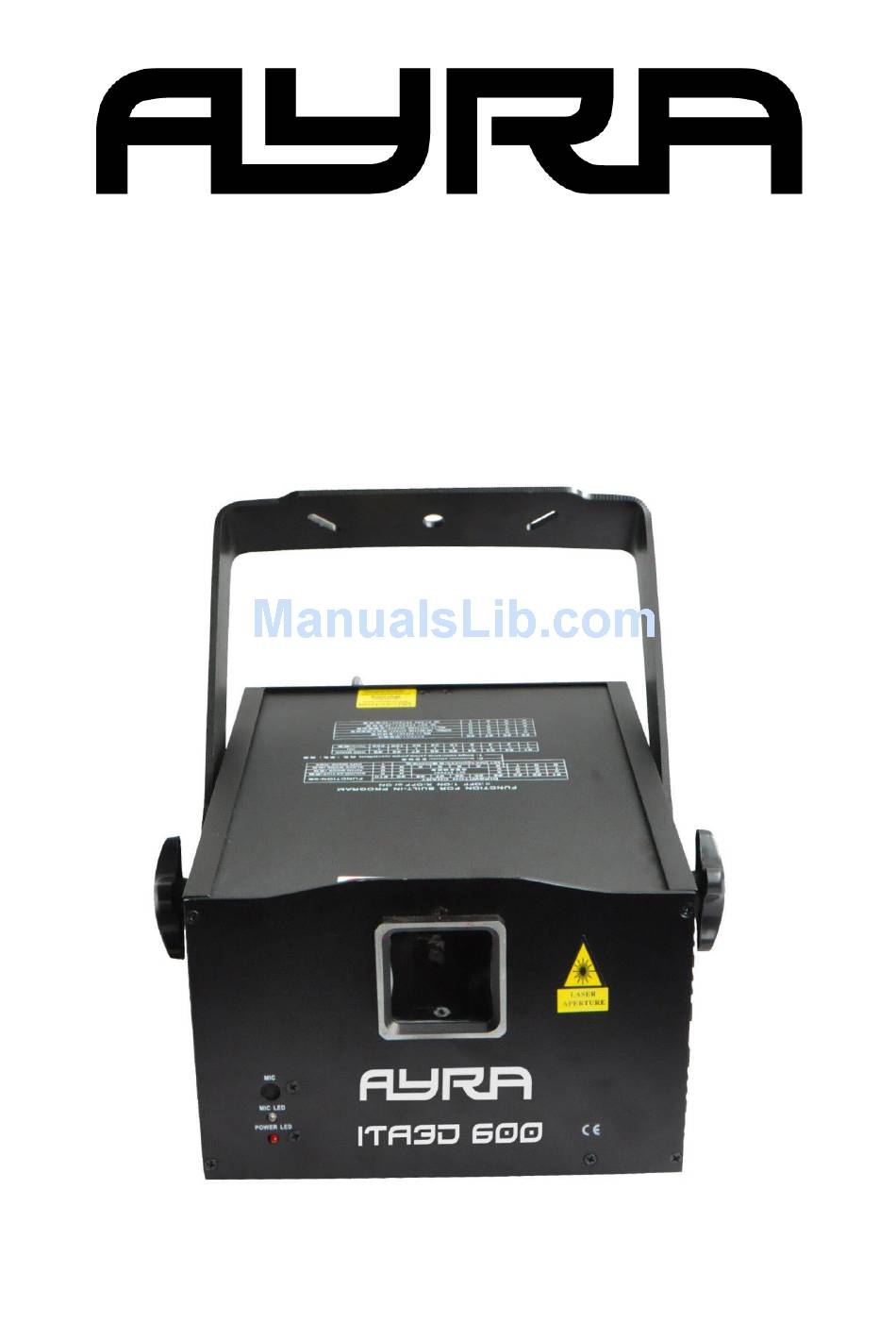

ITA3D 600
RGB ILDA laser with effect wheel
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 2.0
Creation date + author initials: 05-12-2013 RV Revision date + author initials: 18-02-2014 RV

Advertisement

loading
Need help?

Need help?

Do you have a question about the ITA3D 600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayra ITA3D 600

Summary of Contents for Ayra ITA3D 600

  • Page 1 ITA3D 600 RGB ILDA laser with effect wheel User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 05-12-2013 RV Revision date + author initials: 18-02-2014 RV...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
  • Page 4 rating. - Do not bridge the fuse with electrical wires, aluminum foil, as the fuse is used for protection against electrical shocks and short circuit. - Always mount the fuse cover back to the fuse compartment. Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 05-12-2013 RV Revision date + author initials: 18-02-2014 RV...
  • Page 5 Guidelines for laser devices Laser diode guidelines: WARNING! This device emits powerful laser beams! Do not look directly in the laser beam to avoid possible permanent injury to eyes and skin! This is a class 3B laser product. - This device is a professional show and entertainment laser product. The device emits laser beams with a wavelength spectrum between 400 and 700 nm.

  • Page 6: Box Contents

    Box contents Box contents 1x ITA3D 600 laser device 1x user manual 1x IEC to Schuko power cable 1x XLR – XLR DMX signal cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.
  • Page 7 Device overview 1. Beam output 2. Power status LED-indicator (red) 3. Microphone sensitivity LED indicator (blue) 4. Built-in microphone (used for sound-active mode) 5. DMX input 6. DMX output 7. ILDA (DB25) input 8. ILDA (DB25) output 9. Pattern size (small-large) 10.

  • Page 8: Setting Up The Device

    Setting up the device Setting up the device - When the power supply is connected, the unit will first calibrate the stepping motors of the unit. It is normal that this may cause any noise. When the calibration is done, the unit is ready to be used (in the selected DMX, automatic or music controlled mode) - It is possible that the unit may shut off the beam projection when no music or sound is detected.
  • Page 9 Slave mode: It is possible to link several ITA3D 600 fixtures for a synchronized lasershow, without the use of a DMX controller. Connect your devices with standard XLR-XLR cables. The first device in the chain needs to be set to a basic function, such as sound-active or one of the auto shows.
  • Page 10 ‘touch’ your audience. A minimum projection height of 1,5m above your audience should prevent this. Ayra can not be held responsible for any damage or injuries caused by incorrect use of this laser device.
  • Page 11 DMX operating mode While in the DMX mode, it is possible to select the working mode of the laser. That way, you can either choose to use your own programmed presets of your DMX controller, or to activate the music activated/automatic working mode of the laser to have a fully-automatic lasershow.
  • Page 12 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
  • Page 13 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.

  • Page 14: Technical Specifications

    Technical specifications TYPE: ITA3D 600 Laser diodes Type ITA3D 600: - 100mW red laser (wavelength: 635nm) - 100mW green laser (wavelength: 532nm) - 400mW blue laser (wavelength: 450nm) - mixed output: 500mW white max. Tech specs: - scanset: 25 kpps high-speed optical scanner with a maximum angle of +/- 30 degrees...
