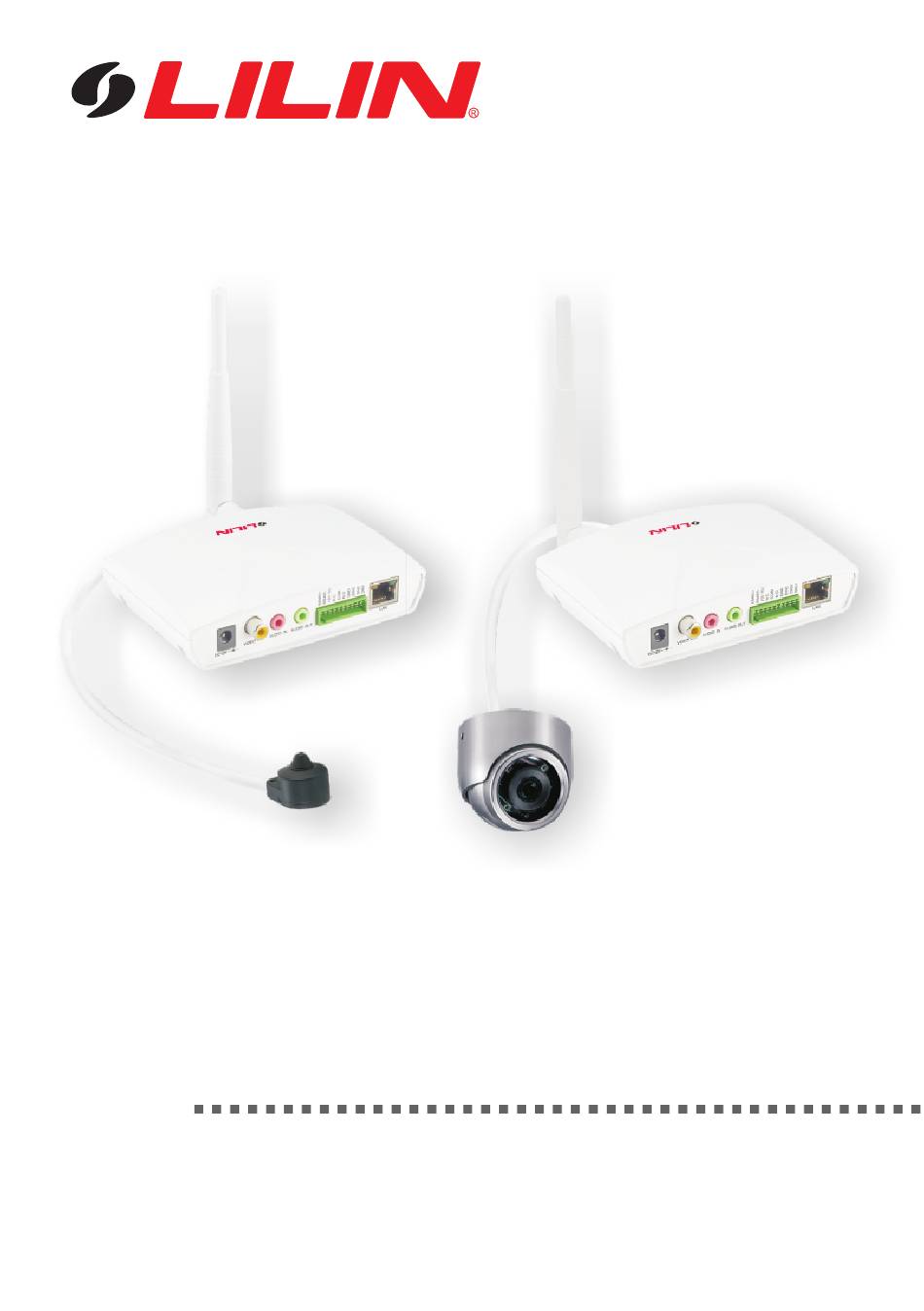

- Page 1 IPC0122P3 / IPC0122WP3 1080P HD Covert (WIFI) IP Camera IPC0422E / IPC0422WE 1080P HD Covert Dome (WIFI) IP Camera Quick Installation Guide...
- Page 2 CAUTION Do not drop or strike this equipment Do not install the equipment near any naked flames or heat sources Do not expose this unit to rain, moisture, smoke or dust environment Do not cover the opening of the cabinet with cloth and plastic or to install this unit in poor ventilated places.
-
Page 3: Product Overview
Product Overview Unit: mm ① Indicator LEDs Green: System status display. Orange: SD status display. Red: Alarm status display. ② RJ-12 Image Sensor Unit Input Connector ③ Detection Sensor Input Connector (optional) ④ Micro SD Card Slot ⑤ Reset Key... -
Page 4: Installation
⑥ Wi-Fi Antenna Plug (Wi-Fi Model Only) ⑦ QR Scan Button (Wi-Fi Model Only) 1. Press and hold the button for 2–5 seconds to enter the QR Scan Mode. 2. Press and hold the button for more than 6 seconds to enable the AP mode. - Page 5 (FIG.1), insert the provided screws (M4.0 x 25, wooden screw) through the holes marked as "a," and secure the main unit to the desired position (FIG.2). Image Sensor Unit Installation 1. Drill a 5mm hole in the panel or on the wall (FIG.3). 2.
- Page 6 Image Sensor Unit Installation (Dome Model) 1. To remove the bracket, loosen the screws on the left and right sides of the sensor with a hex wrench (FIG.7), and remove the three screw hole plugs off the bracket (FIG.8). 2.
- Page 7 3. Connect the image sensor to the camera unit, and adjust the angle of the lens (FIG.11). 4. To secure the upper housing and lens, tighten the screws on the left and right sides of the lens with a hex wrench (FIG.12)
- Page 8 System Architectures To connect the Covert IP Camera to the network, please deploy one of the following system architectures: (1). Use a DC12V power adapter and a network switch to connect to the network. (2). Use a PoE network switch to connect to the network. (3).
- Page 9 Wi-Fi Setting Indicator (Wi-Fi Model) STATUS ALARM QR SCAN MODE STATUS, SD, and ALARM are Enter the QR Scan Mode all lit STATUS and SD remains lit, Scanning and recognizing the and ALARM is off QR code Wi-Fi network connected STATUS remains lit, and SD successful and AP router login and and ALARM are off...
-
Page 10: Emergency Factory Default
How to Activate Connection in the AP Mode 1. Use a Wi-Fi enabled computer or smartphone to configure the Wi- Fi IPCAM. 2. Search for a Wi-Fi IPCAM with an SSID of “IPCam-the last 6 digits of MAC.” E.g., Wi-Fi MAC = 00-0F-FC-57-49-74, SSID = IPCam- 574974 3. -
Page 11: Software Requirements
JPEG or H.264 Full HD video. When you login to the IP camera by Internet Explorer, the security warning dialog box will prompt the installation of the LILIN Universal ActiveX. Click Install to download it. Configuring IP Addresses with IPScan Software To configure an IP address using the IP scan tool, you can copy the IPScan software from the installation CD, and paste to your computer. - Page 12 4. Change the IP address, subnet mask, gateway, or HTTP port for the IP camera. 5. Click Apply to submit the settings. 6. Click Refresh to verify the settings. Configuring IP Addresses via Web Interface To change an IP address via web interface, type the default IP address (192.168.0.200) in the Internet browser and follow the steps below: 1.
- Page 13 Internet Browser Settings & Application Required Make sure your Internet browser allows the signed ActiveX plug-in to work on your computer. Set “Download Signed ActiveX plug-in controls” to “Prompt” and “Run ActiveX control and plug-in” to “Enable”. You can set this option via Internet Explorer-> Tools-> Options->...
- Page 14 The default usernames and passwords are as follows: Administrator Username admin Password pass To logon the H.264 FULL HD IP camera, please type username and password in logon HTML page and click on Submit button to enter the system. -12-...
- Page 15 66-IPC0122CSM...
