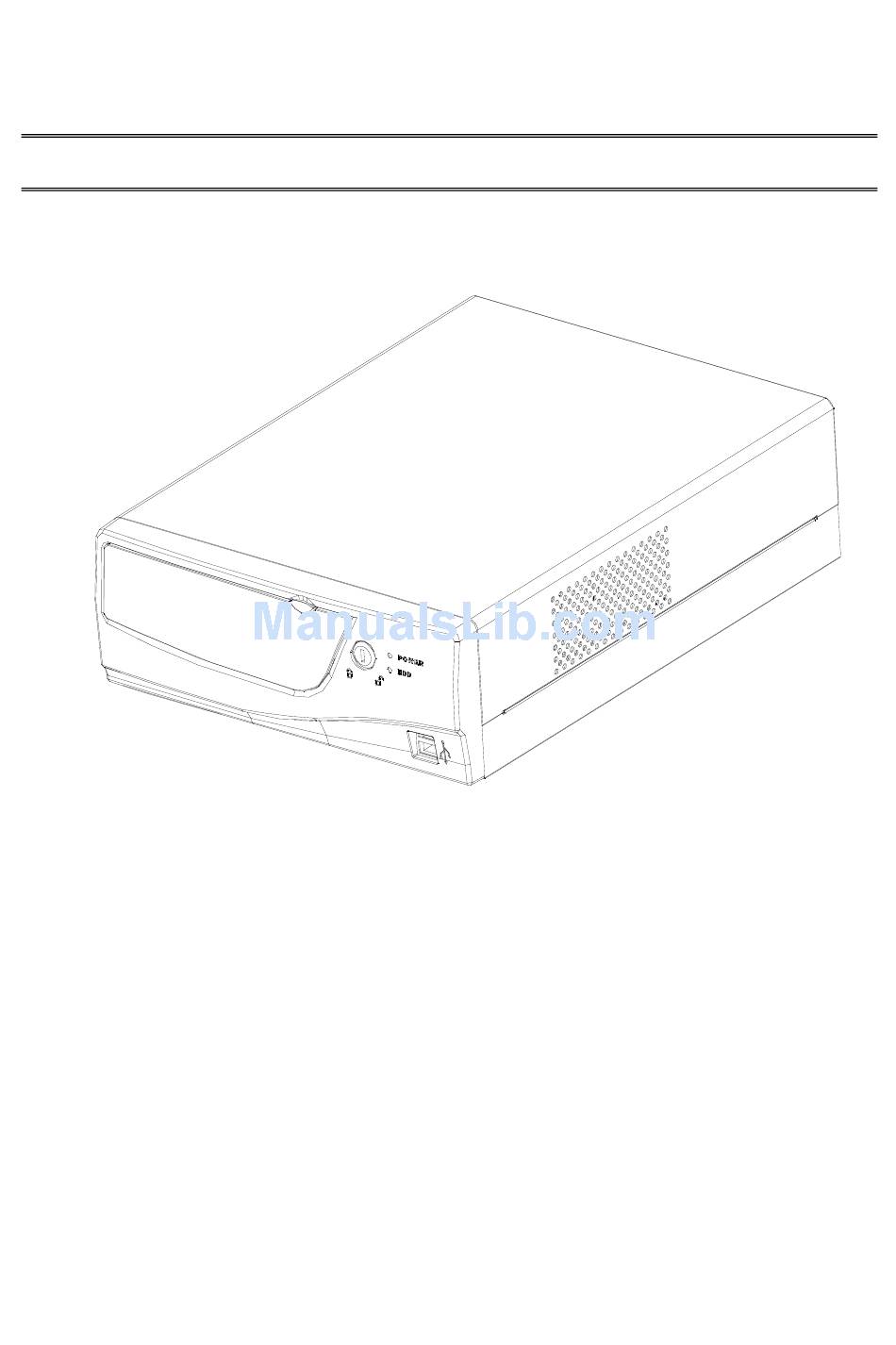

  • Page 1 User’s Manual V1.0...

  • Page 2: Preface

    This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Copyright 2003 Version 1.0 The information in this document is subject to change without notice.

  • Page 3: Federal Communications Commission (Fcc)

    This equipment has been tested and found to comply with the limits for a Class a digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions,...

  • Page 4: About This Manual

    ♦ Chapter 2: Setting Up the System: provides information on attaching peripheral and optional devices. ♦ Chapter 3: Upgrading the PT-1300: provides instructions for installing a CD-ROM drive, and installing or upgrading the HDD, memory, and CPU. Instructions for installing an add-on card are also provided.

  • Page 5: Safety Information

    Before installing and using the PT-1300 POS Terminal, take note of the following precautions: ♦ Read all instructions carefully. ♦ Do not place the unit on an unstable surface, cart, or stand. ♦ Do not block the slots and opening on the unit, which are provided for ventilation.

  • Page 6: Table Of Contents

    Federal Communications Commission (FCC) ........ii Declaration of Conformity ..............ii About this Manual ................iii Safety Information………………………..........iv A Tour of the PT-1300 ................7 Package Contents ....................8 Options......................... 8 OUT LOOK......................9 Attaching Peripheral Devices ............. 10 Connecting a PS/2 Keyboard and Mouse ............
  • Page 7 Contacting Your Dealer ..............42 Mainboard Components ..............44 Mainboard Components..................45...

  • Page 8: A Tour Of The Pt-1300

    The PT-1300 provides you with a fast and accurate point-of-sales (POS) solution for use in supermarkets, information kiosks, restaurants, and other hospitality service areas. The PT-1300 POS Terminal’s mainboard supports Intel Celeron-M processors 1.3 GHz. The mainboard supports 100 MHz frontside bus speeds and accommodates DDR SDRAM memory up to 1024 MB.

  • Page 9: Package Contents

    The PT-1300 POS Terminal comes securely packaged in a sturdy cardboard shipping carton. Upon receiving your PT-1300 POS Terminal, open the carton and carefully remove the contents. If anything is missing or damaged, please contact your dealer immediately. The shipping carton should contain the following items: •...

  • Page 10: Out Look

    Cover Release Status Lock Status Front Power Button Figure 1 – PT-1300 POS Terminal front view PCI card slot cover Figure 2 – PT-1300 POS Terminal rear view This concludes Chapter 1. The next chapter covers installation of the system.

  • Page 11: Attaching Peripheral Devices

    The PT-1300 accommodates standard peripheral devices such as a PS/2 mouse and keyboard, The PT-1300 POS Terminal supports many peripheral devices to expand the functionality of the terminal: Serial Printer Device Network (LAN) C OM 3 C OM 4 L AN...

  • Page 12: Connecting A Ps/2 Keyboard And Mouse

    PS/2 keyboard and mouse to the PS/2 keyboard and mouse ports located at the rear of the ports located at the rear of the PT-1300. PT-1300. Note! The purple PS/2 port is Note! The purple PS/2 port is...

  • Page 13: Connecting Serial Devices

    Figure 6 – Connecting an external monitor Connect serial devices to the 9-pin D-type serial ports on the I/O port array. You can connect a CCD barcode scanner or Smart Card reader to these ports. Connect a customer display to COM3. Caution! These serial ports are voltage selectable and can cause damage to external devices if not set up correctly.

  • Page 14: Connecting Usb Devices

    Connect the cash drawer RJ-11 connector to the RJ-11 port on the I/O port array at the rear of the PT-1300. Figure 8 – Connecting a cash drawer Connect USB devices to the USB ports on the I/O port array:...

  • Page 15: Connecting To A Lan

    Connect speakers and a microphone to the line-out and MIC jacks on the I/O port array: Figure 10 – Connecting stereo speakers and a microphone Note! You must install the audio driver before you can listen to audio output with the speakers. Connect a 10/100 Base-T Ethernet LAN to the RJ-45 jack on the I/O port array: Figure 11 –...

  • Page 16: Checking The Power Supply

    Starting the System The PT-1300 power supply automatically detects the power rating (115 or 230 volts) at your location. AC power jack This connector Connect the power supply cable to the power jack on the I/O port array:...

  • Page 17: Turning The System On

    Press the power switch to turn the system on: Power switch Figure 12 – Turning the system on This concludes this chapter. The next chapter covers upgrade options.

  • Page 18: Precautions

    This chapter covers upgrades to the PT-1300. You can attach a slim-type CD-ROM drive and FDD, or upgrade the HDD, CPU, and memory. POS Terminal components and electronic circuit boards can be damaged by discharges of static electricity. Working on POS Terminals that are still connected to a power supply can be extremely dangerous.

  • Page 19: Before You Begin

    Make sure you have a stable, clean working environment. Dust and dirt can get into POS Terminal components and cause a malfunction. Use containers to keep small components separated. Putting all small components in a safe container keeps them from becoming lost. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components.

  • Page 20: Removing The Chassis Cover

    Disconnect the AC power cable. • Disconnect all peripherals. Remove the three ¢ screws (6 x 6) securing the chassis cover to the chassis: Slide the cover towards the rear of the PT-1300 and lift up to remove the cover.

  • Page 21: Attaching The Cd-Rom

    To install a CD-ROM drive in your PT-1300 POS Terminal, refer to the following instructions. Components Required • Slim-type CD-ROM drive • Control PCB • CD-ROM plate • (M2 x 4) screws x 2 • (M2 x 3) screws x 2 Before Proceeding •...
  • Page 22 Slide the CD-ROM into the CD-ROM plate as shown by the arrow and secure the CD- ROM plate to the CD-ROM with two (M2 x 3) screws and two (M2X6) screws. Remove the CD- ROM blanking plate, if installed:...
  • Page 23 Slide the CD-ROM assembly into place and secure the assembly to the chassis with two screws: Connect the CD- ROM cable to the CD-ROM drive connector (A). Connect a power cable to the PCB board power connector (B).

  • Page 24: Replacing The Hard Disk Drive

    To upgrade the Hard Disk Drive (HDD) on your PT-1300 POS Terminal, refer to the following. Components Required • Replacement HDD • HDD cable • HDD holding plate • ¢ x 4) screws x 4 • (M3 x 4) screws x 2...
  • Page 25 Slide the HDD holding plate in the direction of the arrow to move it from under the HDD chassis clips (B) and remove the HDD assembly (C). Disconnect the IDE cable (B) and the power cable (A) Remove the four ¢...

  • Page 26: Replacing Memory

    To upgrade the SDRAM memory on your PT-1300 POS Terminal mainboard, refer to the following. The following illustration shows memory installation components: Figure 13 – PT-1300 memory slots Components Required Replacement memory...
  • Page 27 Note! The PT-1300 mainboard accommodates 168-pin SDRAM chips. The memory bus runs at 66/100/133 MHz. The mainboard accommodates two memory modules. You must install at least one module in any of the two slots. Each module can be installed with up to 256 MB; total memory capacity is 512 MB.
  • Page 28 Install the DIMM module into the slot and press it firmly down until it seats correctly. The slot latches are levered upwards and latch on to the edges of the DIMM. Reconnect the HDD IDE cable. Replace the FDD/CD-ROM cable Replace the chassis cover.
  • Page 29 Installing the CPU ® ® The PT-1300 board supports a Socket 479 processor socket for Intel Pentium ® or Celeron M processors. The processor socket comes with a screw to secure the processor. As shown in the left picture below, loosen the screw first before inserting the processor. Place the processor into the socket by making sure the notch on the corner of the CPU corresponds with the notch on the inside of the socket.

  • Page 30: Installing A Pci Card

    To install a PCI card to your PT-1300 POS Terminal mainboard, refer to To install a PCI card to your PT-1300 POS Terminal mainboard, refer to the following. the following. Note: Note: Before installing an add-on card, check the documentation for the Before installing an add-on card, check the documentation for the card carefully.
  • Page 31 Remove the ADD on card bracket screw Remove the blanking plate from the chassis. Slide the PCI card into place as shown:...
  • Page 32 Line up the PCI card bracket with the bracket slot (A). Insert the edge connector of the PCI card into the expansion slot (B). Replace the add on card bracket screw. Ensure that the edge connector is correctly seated in the slot.

  • Page 33: Installing A Cable Management Box

    To add on the cable management box on your PT-1300 POS terminal refer To add on the cable management box on your PT-1300 POS terminal refer o the following o the following Components Required Components Required Cable management plate Cable management back plate 1.Remove the three...
  • Page 34 4 Secure the back plate the with a screw...

  • Page 35: Installing The Customer Display

    To add on the customer display ( CD-7220 ) on your PT-1300 POS To add on the customer display ( CD-7220 ) on your PT-1300 POS terminal refer o the following terminal refer o the following Components Required Components Required...
  • Page 36 The display base assembly into cable management box with three (M3X6) screws Lock the display base cover into the base 6 slide in the display long or short pipe by your need 7 RS-232 cable through the display pipe from bottom to up 8 The D-sub connector plug into the COM 1 or...
  • Page 37 The 8-pin phone jack plug into the CD-7220 display. 10. The display lock into the display pipe This concludes this chapter. The next chapter explains how to install device drivers.

  • Page 38: Pt-1300 Pos Terminal Specifications

    • Intel Celeron-M 1.3 GHz • Intel 852GM + ICH4 • 100 MHz front side bus (FSB) • 256 MB Memory, expandable to 1024 MB • 3.5-inch IDE hard drive • I/O Interfaces: – One PS/2 keyboard port – One PS/2 mouse port –...
  • Page 39 —Notes—...

  • Page 40: Locating A Problem

    This appendix describes locating and solving problems that you may encounter while using your POS Terminal. Problems with your POS Terminal can be caused by something as minor as an unplugged power cord—or as major as a damaged hard disk. The information in this appendix is designed to help you find and solve minor problems.

  • Page 41: Checking Cables And Connections

    To check the power cables, and connections: • Check the power outlet, the power cord, and any power switches that may affect your POS Terminal. Check the wall outlet or power strip with an item that you know is functioning properly (a lamp or radio is a convenient item for checking the power).

  • Page 42: General Hardware Problems

    If failure is detected in an area other than the mainboard (such as the keyboard or an adapter card), an error message is displayed on the screen and testing is stopped. If your system does not successfully complete the POST, but displays a blank screen, emits a series of beeps, or displays an error code, consult your dealer.
  • Page 43 Problem Solution An unidentified message is displayed. Reboot the POS Terminal and run the BIOS Setup Utility. Confirm the Setup Utility parameters. If the same message is displayed after booting up again, contact your dealer for support. The system cannot access the CD- Check that a CD/DVD is properly ROM/DVD-ROM drive.
  • Page 44 your dealer.
  • Page 45 This appendix provides information on jumper settings on the PT-1300 POS Terminal. The following table and illustration shows the mainboard components. 2 Keyboard CASH PRINT Jumper Mouse Drawer 6 COM1 (DL) 7 USB (DL MIC (DL) COM3 COM4 COM2 (UL)
  • Page 46 The following illustration shows the mainboard components: The following illustration shows the mainboard components: Figure 15 – Mainboard components...
  • Page 47 The following table shows the jumper settings: Jumper Description Setting Clean 1-2: Normal CMOS 2-4: clear CMOS For PCB Rev: 0.3 Extend KB/MS J9 / J12 For PCB Default Rev: 0.3For 1. KB_CK & KBCK adaptor CLOSE 2. KB_DT & KBDT CLOSE...
  • Page 48 For PCB 1-2, 3-4 for Power Rev: 0.3 Front Panel 5-6 FOR IDE 7-8 For Power Button 9-10 For Reset Button For PCB 1-2, 3-4 for Power Rev: 1.2 Front Panel 5-6 FOR IDE 7-8 For Power Button 9-10 For Reset Button USB 3/4 FOR PCB...
  • Page 49 FOR PCB Rev: 1.2 COM 3 CN10 FOR PCB Rev: 0.3 COM 4 CN10 FOR PCB Rev: 1.2 COM 4...
