Summary of Contents for Partner PT-5900

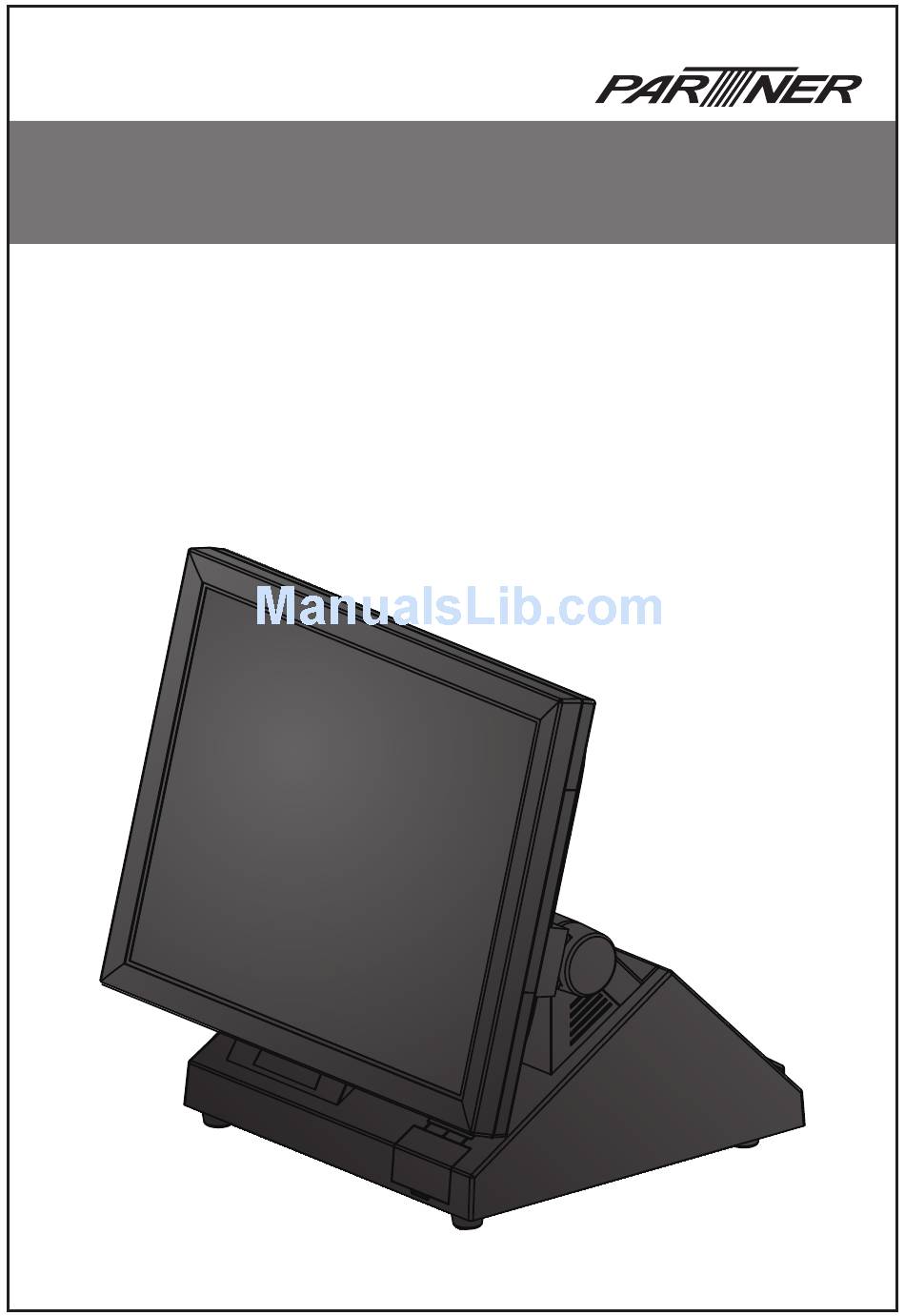

- Page 1 All in one POS Terminal PT-5900 User Manual...
-
Page 3: Declaration Of Conformity
Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. -
Page 4: About This Manual
PT-5900 serviced, and technical specifications. Safety information Before installing and using the PT-5900, take note of the following precautions: • Read all instructions carefully. • Do not place the unit on an unstable surface, cart, or stand. -
Page 5: Table Of Contents
TABLE OF CONTENTS CHAPTER 1 GETTING STARTED ..........1 Unpacking the machine .................1 Checking the package contents ..............2 Identifying components .................3 Connecting peripheral devices ...............6 Powering the machine on and off ..............7 Setting COM ports..................8 CHAPTER 2 BIOS SETUP ............15 About the Setup Utility .................15 Entering the Setup Utility ................16 BIOS navigation keys ................16... - Page 6 APPENDIX .................. 39 Troubleshooting ...................39 Tips for Troubleshooting ................39 The Power-On Self Test ................39 Beep Errors at POST ...................39 Beep Message Errors at POST ..............40 General Problems ..................41 Having the PT-5900 Serviced ..............42 Specifications ....................43...
-
Page 7: Chapter 1 Getting Started
CHAPTER 1 GETTING STARTED This chapter describes the procedures from unpacking the PT-5900, to powering it on. The following topics are described. • Unpacking the machine on page 1 • Checking the package contents on page 2 • Identifying components on page 3 • Connecting peripheral devices on page 6... -
Page 8: Checking The Package Contents
Checking the package contents After you unpack the device check that the following items are included. Driver CD with drivers and PT-5900 the user manual PDF file. Adapter Power Cable If any item is missing or appears damaged, contact your dealer immediately. -
Page 9: Identifying Components
Identifying components This section describes the parts and connectors on the machine. Front-right view Figure 1.2 Front-right view Component Description 15-inch TFT LCD Power LED indicator Power Button IO Panel... -
Page 10: Rear View
Rear view Figure 1.3 Rear view Component Description MSR (optional) Slot VFD Customer Display (optional) Slot Rear Cover Rear Cover Latches C H A P T E R 1 G E T T I N G S T A R T E D... - Page 11 I/O connectors Figure 1.4 PT-5900 I/O connectors Connector Description DC 12V input connector COM3 port Microphone jack Line-Out jack USB port VGA port COM1 port PS/2 port (for MSR) HDD cable hole COM4 port Line-In jack LAN jack LPT port...
-
Page 12: Connecting Peripheral Devices
Connecting peripheral devices Peripheral devices such as a printer or scanner can be connected to the machine. Refer to the user manual of the device you are connecting for instructions on installing drivers where needed. USB Compliant devices Microphone Monitor Adapter MSR (Default)/ KB (Optional) -
Page 13: Powering The Machine On And Off
Powering the machine on and off Refer to the following to power on and off the machine. 1. Locate the I/O panel that is at the bottom of the machine. 2. Connect the power cable to the adapter. 3. Connect the adapter to the DC 12V input connector on the IO panel. -
Page 14: Setting Com Ports
Setting COM ports Before you connect devices to COM3, COM4, COM5 ports, the drivers must be installed first. Follow these instructions to install drivers: 1. Browse to the \DRIVER\USB to Serial COM port. 2. Double-click PL2303-Driver.exe. The following screen appears. Click Next to continue. 3. Click Continue Anyway. C H A P T E R 1 G E T T I N G S T A R T E D... - Page 15 4. Click Finish to close. 5. Go to Start → Control Panel → System → Hardware tab → Device Manager. 6. Right click on Universal Serial Bus controllers, and select Scan for hardware changes. The system will detect USB devices.
- Page 16 7. When Found New Hardware Wizard appears, check Yes, now and every time I connect a device and then click Next to continue. 8. Check Install the software automatically, and then click Next to continue. C H A P T E R 1 G E T T I N G S T A R T E D...
- Page 17 9. Click Continue Anyway. Step7 to Step9 need to repeat three times. 10. Next browse to the \DRIVER\Com_Setting. Double-click Com_Setting.msi to install Partner Com- port Manager. Click Next to continue. Partner Comport Manager requires .Net Framework, if it is not installed then it will prompt to install it.
- Page 18 11. Click Next to continue. 12. Click Next to continue. C H A P T E R 1 G E T T I N G S T A R T E D...
- Page 19 13. Click Close to complete the installation. 14. Go to Start → All programs → Partner Comport Manager → Com_setting.
- Page 20 15. When the following screen appears. Click Start and then restart the system. C H A P T E R 1 G E T T I N G S T A R T E D...
-
Page 21: Chapter 2 Bios Setup
CHAPTER 2 BIOS SETUP The primary function of the BIOS (Basic Input and Output System) is to identify and initiate component hardware. The BIOS parameters are stored in non-volatile BIOS memory (CMOS). CMOS contents don’t get erased when the computer is turned off. The following topics are described in this chapter. • About the Setup Utility on page 15 • Main Screen on page 18 • OC Tweaker on page 19... -
Page 22: Entering The Setup Utility
Entering the Setup Utility When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears: Press F2 or DEL to run Setup Press the delete key <Delete>... -
Page 23: Using Bios
Using BIOS When you start the Setup Utility, the main screen appears. The main screen of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. -
Page 24: Main Screen
Main Screen This screen includes System BIOS Information, Processor, System memory and displays the System Time and System Date. Figure 2.2 Main Screen System Overview This screen displays System BIOS Information, Processor, System memory, System Time and System Date. System Time/ System Date The System Time and System Date items show the current date and time held by the machine. -
Page 25: Oc Tweaker
OC Tweaker In the OC Tweaker screen, you can set up overclocking features. Figure 2.3 OC Tweaker Screen Boot Failure Guard Boot Failure Guard is a boot failure restore feature. While system could not bootup normally at overclocking setting, the safe boot up mode will be issue from Boot Failure Guard and provide a BIOS setting Interface to parameter reset/correction. -
Page 26: Advanced Settings
Advanced Settings This setup screen includes sub-menus for CPU Configuration, Chipset Configuration, ACPI Configurations, Storage Configurations, PCIPnP Configurations, SuperIO Configurations and USB Configurations. Figure 2.4 Advanced Settings Screen ASRock Instant Flash This item is used to execute the BIOS update utility. The utility can search BIOS files in USB and hard disk drive automatically for updating. C H A P T E R 2 B I O S S E T U P... -
Page 27: Cpu Configuration
CPU Configuration Figure 2.5 CPU Configuration sub-menu Hyper Threading Technology This item is used to enable/ disable the Hyper Threading technology. Hyper Threading technology allows one processor to work on two separate operations at the same time. -
Page 28: Chipset Configuration
Chipset Configuration Figure 2.6 Chipset Configuration sub-menu Primary Graphics Adapter This item specifies which graphics card is your primary graphics adapter. DVMT Mode Select Intel’s Dynamic Video Memory Technology (DVMT) allows the system to dynamically allocate memory resources according to the demands of the system at any point in time. The key idea in DVMT is to improve the efficiency of the memory allocated to either system or graphics processor. It is recommended that you set this BIOS feature to DVMT Mode for maximum performance. -
Page 29: Acpi Configuration
ACPI Configuration Figure 2.7 ACPI Configuration sub-menu Suspend Mode Use this item to define how the system suspends. In the default, S1(POS), the suspend mode is equivalent to a software power down. If you select S3(STR), the suspend mode is a suspend to RAM - the system shuts down with the exception of a refresh current to the system memory. Restore on AC/Power Loss This item sets the system status after restore on AC power loss. -
Page 30: Storage Configuration
Storage Configuration Figure 2.8 Storage Configuration sub-menu SATA Operation Mode This feature allows users to select SATA operation mode. C H A P T E R 2 B I O S S E T U P... -
Page 31: Sataii_1, Sataii_2
SATAII_1, SATAII_2 Figure 2.9 SATAII sub- menu Type Select [Auto] to automatically detect hard disk drive. If auto detection is successful, the BIOS Setup automatically fills in the correct values for the remaining fields on this sub-menu. If the auto detection fails, it may due to that the hard disk is too old or too new. If the hard disk was already formatted on an older system, the BIOS Setup may detect incorrect parameters. -
Page 32: Pcipnp Configuration
PCIPnP Configuration Figure 2.10 PCIPnP Configuration sub-menu PCI Latency Timer This item allows you to adjust the PCI Latency Timer of all PCI devices on the PCI bus. C H A P T E R 2 B I O S S E T U P... -
Page 33: Superio Configuration
SuperIO Configuration Figure 2.11 SuperIO Configuration sub-menu Serial Port Address These items are used to assign the I/O address for the serial port. Parallel Port Address This item allows user to select the I/O address for the parallel port. Parallel Port Mode This item allows user to select the parallel port mode. -
Page 34: Usb Configuration
USB Configuration Figure 2.12 USB Configuration sub-menu USB Controller This item is used to enable/disable the USB controller. USB 2.0 Support This item is used to enable/disable the USB 2.0 support. Legacy USB Support When enabled, the BIOS will enable legacy support for USB keyboards, mice and floppy drives. You will be able to use these USB devices even with operating systems that do not support USB. USB Keyboard/Remote Power On This item is used to enable/disable USB keyboard/remote to turn on the system. -
Page 35: H/W Monitor
H/W Monitor This screen allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, mainboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. Figure 2.13 H/W Monitor sub-menu CPU Quiet Fan If you set this option as [Disabled], the CPU fan will operate in full speed. -
Page 36: Boot Settings
Boot Settings This screen allow you to configure the boot options. Figure 2.14 Boot Settings screen 1st Boot Device Set the boot device options to determine the sequence in which the computer checks which device to boot from. C H A P T E R 2 B I O S S E T U P... -
Page 37: Boot Settings Configuration
Boot Settings Configuration Figure 2.15 Boot Settings Configuration sub-menu Quick From Onboard LAN This item is used to enable/disable the boot from onboard LAN function. Bootup Num-Lock This setting is to set the Num Lock status when the system is powered on. Setting to [On] will turn on the Num Lock key when the system is powered on. -
Page 38: Security Settings
Security Settings This screen allows you to configure the system security settings. Figure 2.16 Security Settings screen Supervisor/User Password Indicates whether a supervisor/user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays. Change Supervisor/User Password You can use this option change the supervisor/user password. User Access Level This item allows you to set the user access rights to the BIOS Setup Utility. -
Page 39: Exit Menu
Exit Menu This screen allows you to load the optimal or failsafe default values, and save or discard changes. Figure 2.17 Exit Menu screen Save Changes and Exit Highlight this item and press <Enter> to save the changes that you have made in the Setup Utility and exit the Setup Utility. - Page 40 Load Performance Setup Default (IDE/SATA) This option opens a dialog box that lets you load performance defaults for all appropriate items in the Setup Utility. The IDE/SATA defaults place demands on the system that may be greater than the performance level of the components, and set the SATA mode to IDE/SATA.
-
Page 41: Chapter 3 Upgrading Components
CHAPTER 3 UPGRADING COMPONENTS This chapter describes how to upgrade components for the PT-5900. The following topics are described. • Safety and precautions on page 35 • Before you begin on page 36 • Upgrading the hard drive on page 37 Safety and precautions Computer components and electronic circuit boards can be damaged by discharges of static electricity. -
Page 42: Before You Begin
Before you begin Make sure you have a stable, clean working environment. Dust and dirt can get into components and may cause malfunction. Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the electrical and mechanical connections can be disconnected by using your fingers. It is recommended that you do not use needle-nosed pliers to disconnect connectors as these can damage the soft metal or plastic parts of the connectors. -
Page 43: Upgrading The Hard Drive
Upgrading the hard drive Refer to the following to remove and replace the hard drive. 1. Turn off the device properly through the operating system. 2. Disconnect the power cord from the power outlet. 3. Rotate the LCD screen forward . 4. - Page 44 6. Remove the two screws to remove the hard drive tray. 7. Disconnect the power cable and SATA cable from the hard drive. 8. Remove the four screws, then remove the hard drive out from the tray. To replace the hard drive, reverse the above procedure. C H A P T E R 3 U P G R A D I N G C O M P O N E N T S...
-
Page 45: Appendix
If failure is detected in an area other than the mainboard (such as the keyboard or an adapter card), an error message is displayed on the screen and testing is stopped. If your system does not successfully complete the POST, but displays a blank screen, have the PT-5900 serviced. -
Page 46: Beep Message Errors At Post
Replace the battery. FAILED The battery may be weak. Replace the battery. CMOS CHECKSUM ERROR The CMOS may be corrupt. Have the PT-5900 serviced. HARD DISK(S) FAIL (80) HDD reset failed. Have the PT-5900 serviced. HDD controller diagnostics HARD DISK(S) FAIL (40) Have the PT-5900 serviced. -
Page 47: General Problems
Refer to the following general problems you may encounter. PROBLEM SOLUTION The display screen is dark. Make sure that the PT-5900 is not in suspend mode. An incorrect date and time are displayed. Correct the date and time using the DOS DATE and TIME commands or the options in the Setup Utility. -
Page 48: Having The Pt-5900 Serviced
Having the PT-5900 Serviced If you are unable to solve the problem, you should have the terminal serviced. Pack the terminal in the original carton. (See “Unpacking the PT-5900” on page 1.) Include a description of the problem and a checklist of the steps you took when trying to fix the problem. The information may be useful to the service personnel. Return the terminal to the place you purchased it. A P P E N D I X... -
Page 49: Specifications
Specifications Intel Atom™ processor D410 (512K Intel Atom™ processor D425 (512K ® ® CPU Type L2 Cache, 1.66 GHz, single core ) L2 Cache, 1.80 GHz, single core ) Chipset Intel NM10 Express ® 15” Active TFT color LCD, resolution 1024 x 768 Touch 5-wire Resistive touch (USB Interface) Memory 1GB DDRII 800/667 DIMM (up to 4 GB) Ethernet... - Page 50 Operating Temp. 0~+40˚C Storage Temp. -20˚C~+60˚C Humidity 15%~80% A P P E N D I X...
