Page 1: User Manual

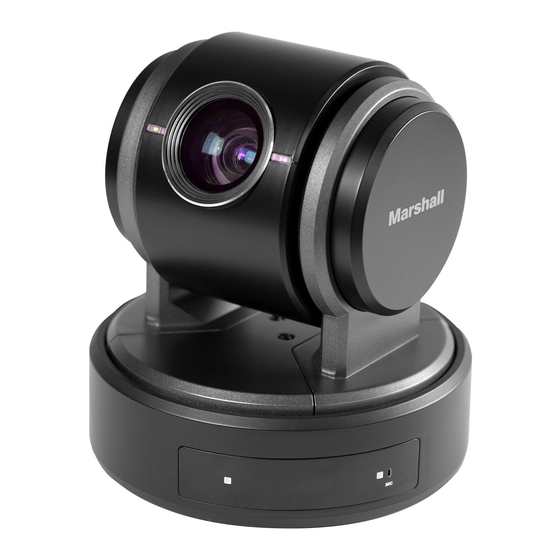

Marshall Electronics CV610-U3 Full HD Teleconference PTZ USB3.0 Camera User Manual Ver. 2.0 1 ... -
Page 2: Table Of Contents
Operating Instructions OPERATING INSTRUCTIONS ............................3 WHAT’S IN THE BOX..............................5 FEATURES ..................................6 CAMERA DIAGRAMS ..............................7 ..................................7 AMERA ..............................8 EMOTE ONTROLLER ..............................8 XTENSION ODULE SYSTEM CONFIGURATION ............................9 ................................. 9 ONNECTION ..............................10 BTAIN IDEO IGNAL .............................. -
Page 3: Operating Instructions
Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. Thank you for purchasing our product. If there are any questions, please contact the authorized dealer. IMPORTANT INFORMATION Legal Notice Attention: To ensure account security, please change the password after your first login. You are recommended to set a strong password (no less than eight characters). - Page 4 Regulatory Compliance FCC Part 15 This equipment has been tested and found to comply with the limits for digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: What's In The Box
WHAT’S IN THE BOX 5 ... -
Page 6: Features
Features 2 Megapixel 1/2.8-inch Sensor Full-HD Video: 1920x1080p, 1280x720p &1920x1080i High Speed: 60, 50, 30, 25 fps 10x Optical Zoom 6.53~62.18mm (F1.8~2.8) - 12x Digital Zoom USB3.0 (only) plus HDMI & Composite (CVBS) simultaneous outputs ... -
Page 7: Camera Diagrams
Camera Diagrams Camera 1. 12V DC Power Port Connect the supplied AC power adaptor and cord. 2. Extension Module Port Composite port for extra features to provide RS-232, RS-422/RS-485, CVBS, HDMI, Audio Line functionalities 3. USB 3.0 Port Outputs the images from this unit as a USB3.0 video signal. Do not apply the voltage higher than the rated value to the USB terminal. -
Page 8: Remote Controller
Remote Controller 1. CAMERA SELECT 2. FOCUS Auto Far Near Manual 3. DATA SCREEN On screen menu display ON/OFF 4. PAN-TILT Pan and Tilt direction control HOME: Home position, Resolution reset 5. L/R DIRECTION SET ... -
Page 9: System Configuration
System Configuration Connection When the camera is connected to a computer and joystick keyboard via Extension Module with a VISCA cable (cross type, RS-232), you can operate the camera with the computer and the joystick keyboard. When the camera is connected to a joystick keyboard via Extension Module with a control cable (cross type, RS- 422/485), you can operate the camera’s pan, tilt, zoom with the joystick keyboard. -
Page 10: Obtain Video Signal
Obtain Video Signal USB3.0 Video Signal 1. Install video client software on the computer that you want to use the camera on. 2. Use the USB3.0 cable to connect the camera to the computer. Connect the power adapter to the camera and the power outlet. 3. -
Page 11: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations This unit has multiple ways of controlling the USB3.0 camera and various system configuration capabilities using optional products. This section describes ways of controlling and typical system examples with the required components and usage of each system. 1. - Page 12 Use camera built-in virtual COM port To operate the camera third party control software / interface, control distance may be short. System Configuration B Before you use the virtual COM port, you need to install the driver onto your PC/Mac. You can download the driver (PL2303 Prolific Driver Installer v1.12.0) here: http://plugable.com/drivers/prolific You can use this Virtual COM port to control the USB camera.
- Page 13 RS232 Connection 1. Set Bottom Dip Switch SW1-B6 to OFF. (See page 16). 2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 16). 3. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly. 4.
- Page 14 RS422 (VISCA) connection 1. Set Bottom DIP Switch SW1-B6 to OFF. (See page 16). 2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using. (See page 16). 3. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly. 4.
- Page 15 Operating Multiple Cameras Using RS-422/485 Using RS-422 (VISCA), you can connect up to 7 cameras. Using RS-485 (PELCO), you can connect up to 255 cameras. Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the camera address by operating OSD menu.
- Page 16 be used without any permission. If the computer to check USB images is connected to a network, there may be a risk of information leaks, obstructed viewing due to infection by a virus, or other risks. Connect to these environments at your own risk. 16 ...
-
Page 17: Bottom Dip Switch Settings
BOTTOM DIP SWITCH SETTINGS The bottom dip switch is for setting the camera configuration for following items: 1. Camera ID Address for VISCA protocol 2. Video output / Video color space 3. RS-232 / RS-422/485 selection 4. Video resolutions selection 5. - Page 18 RS-232 / RS-422 Baud Rate Setting 9600 bps 9600 bps 9600 bps 9600 bps Bit 1~4: Video resolution setting Bit 5~6: Reserve Bit 7~8: IR remote controller ID setting 1. Video Resolution Setting Video Resolution 1080P60 1080P50 1080P30 1080P25 720P60 720P50 2.
-
Page 19: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. -
Page 20: Exposure Menu
EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris. BRIGHT: Adjust the brightness level (LEVEL) manually. SHUTTER PRI: Shutter Priority mode. The exposure is adjusted automatically using the sensitivity and iris. -
Page 21: Picture Menu
PICTURE Menu The PICTURE menu is used to set the items related to the picture. SHARPNESS: Picture sharpness value ranges from 0 to 20. You can enjoy emphasized edge and high-resolution images. EFFECT: (Picture Effect) It consists of the following functions: Neg. -
Page 22: Factory Reset
DISPLAY INFO When this item is set to ON, the message of the camera configuration appears for about 3 seconds on the screen, after the camera is powered on or rebooted. FACTORY RESET You can select this item to set camera back to Factory Default setting by pressing HOME button to confirm the action. -
Page 23: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. 2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 24: Operating Multiple Cameras With The Infrared Remote Controller
Zooming Press either of the ZOOM buttons. Note When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky. Operating Multiple Cameras with the Infrared Remote Controller 1. -
Page 25: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. -
Page 26: Menu Configuration
Menu Configuration The menus of the camera are configured as described below. For more details, refer to the pages in parentheses. The initial settings of each item are in bold. -
Page 27: Troubleshooting
Troubleshooting Check the following as a guide for troubleshooting the problem. If the problem cannot be corrected, consult your dealer. Symptom Cause Remedy The power of the camera is not turned The AC power adaptor is not connected Insert the power cord firmly as far as it will to the DC 12 V connector firmly. -
Page 28: Dimensions
Changing the video format on OSD The camera hasn’t been restarted. After setting the video format, confirm with menu doesn’t work. pressing HOME button on the remote controller. Camera will restart. There is no audio. The audio device setting on video Select the device listed as “Digital audio client software is not set correct. - Page 29 Marshall Electronics Tel: (800) 800-6608 • (310) 333-0606 Fax: 310-333-0688 www.LCDRacks.com sales@lcdracks.com...
