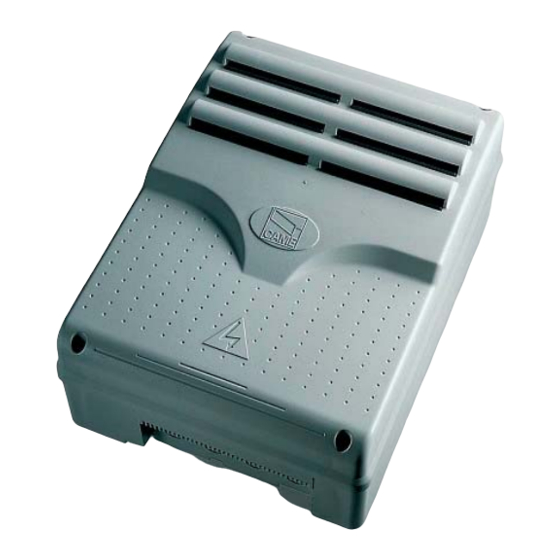

CAME ZM3E Installation Manual

Control panel for 230 v operators
Hide thumbs Also See for ZM3E:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
CONTROL PANEL
31 9U 75E N
FOR 230 V OPERATORS
ZM3E - ZM3EC
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZM3E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CAME ZM3E

Summary of Contents for CAME ZM3E

  • Page 1 CONTROL PANEL 31 9U 75E N FOR 230 V OPERATORS Installation Manual ZM3E - ZM3EC...
  • Page 2 The overall power of the motors must not exceed 750 W. 3 Reference Standards For its quality processes management Came Cancelli Automatici is ISO 9001 certified, and for its environmental management it is ISO 14001 certified. Came designs and manufactures entirely in Italy.
  • Page 3 4.1 Dimensions, spans and anchoring holes (mm) ZM3E ZM3EC 4.2 Main components 1 - Transformer 2 - M1 gearmotor condenser (black wires) 3 - M2 gearmotor condenser (red wires) 4 - Card fuse 5 - Accessories fuse 6 - Electrolock fuse...
  • Page 4 5 Installation Installation must be carried out by expert qualified personnel and in full observance of regulations in force. 5.1 Preliminary checks Before installing do the following: • Check that the panel’s anchoring point is protected from possible blows, and that the anchoring surface is solid. Also check that the anchoring is done using the appropriate bolts, screws etc.;...
  • Page 5 5) Snap the cover into place onto the hinges. Close it and fix it using the provided screws. 6) After the adjustments and settings, fix the cover using the provided screws. 6 Electrical connections 6.1 Cable and type and section Type Length of cable Length of cable...
  • Page 6 Signalling and Lighting devices Signal Flasher (socket rating: 230 V Open gate indicator-light - 25 W max.) Flashes during opening (socket rating: 24 V - 3 W max.). and closing phases. Turns on when the gate is ajar or open. It turns off when the gate is closed.
  • Page 7 Gearmotor, mechanical stops M1 - 230 V AC gearmotor featuring delayed action on opening M2 - 230 V AC gearmotor featuring delayed action on closing FERNI FROG A FROG A FERNI KRONO F7001 KRONO F7001 F4000 F4000 Gearmotor, encoder ENCODER A ENCODER B M1 - 230 V AC gearmotor featuring M2 - 230 V AC gearmotor featuring...
  • Page 8 Confi gure either (N.C.) contacts CX, CY or CZ, input for EN 12978 compliant safety devices such DF with DFI connections as sensitive edges. See CX input functions in: monitor card - C7 «Open while closing», During gate closing, opening the contact causes inversion of movement until gate is fully open;...
  • Page 9 7 Programming 7.1 Description of display commands Lingua < > the <...> symbols on the display are for: Italiano -pointing out the currently, selected item The ESC key is for: The ENTER key is for: - exiting the menu; - entering the menu; - cancelling modifications.

  • Page 10: Menu Structure

    7.3 Menu structure <Deutsch> <English <Francais> > > > ENTER < > LANGUAGE > > <Italiano> <Espanol> > > < FUNCTIONS > ENTER > The “ENCODER” function, appears only if selected from the “Config.” function in the FUN- < ENCODER > ENTER CTIONS menu.
  • Page 11 < Turn on > < Disabled > < AutoClose > > ENTER > > <when close> < Disabled > < Turn on > > > <Maintained Act> ENTER > > < Turn on > < Disabled > < Obstacle Det. > >...
  • Page 12 7.4 Main menu < LANGUAGE > < FUNCTIONS > < ENCODER > English Press ENTER < TIMING ADJ. > for 1 second It appears only if selected from the “Config.” Section in the FUNCTIONS menu. < TEST MOT. > < INFO >...
  • Page 13 Obstacle detected: when motor is stopped (gate closed or after a total stop command) it prevents any movement if safety devices, such as photocells, detect any obstacles. < LANGUAGE > English <Obstacle Det.> Obstacle Det. FUNCTIONS Disabled < Disabled > TIMING ADJ.
  • Page 14 Total Stop: this function stops the gate and consequently excludes any automatic closing cycle; for movement to resume, you need to use the keypad or transmitter. Insert safety device on [1-2]; Insert the safety device on [1 -2]; if unused, select “Deactivated” <...
  • Page 15 CZ input: safety contact input can take on the following functions: C1 (re-opening when closing), C2 (re-closing when opening), C3 (partial stop), C4 (obstacle stall), C7 (re-opening when closing, for sensitive edges), C8 (re-closing when opening, for sensitive edges) or, be deactivated. See safety devices on electrical connections. <...
  • Page 16 Deceleration configuration: configuring decelerations when opening or closing: - slow run: decelerations when opening and closing; - Fcap-RallCh.: end stop when opening and deceleration when closing; - ecoder: managing decelerations, obstacle detection and sensitivity; -> FROG-AE, AXO, F7001E - Time of Run: timed end stop (default function); -> FROG-A, FERNI 230V, ATI 230V, FAST 230V, KRONO - Limit switch (endstop): opening and closing endstop.
  • Page 17 E3 lamp: configuring the lamp connected to E-E3: - cycle: outdoor lamp, which can be positioned at leisure, for better illumination in the parking/driveway area. It stays on from the moment the gate leaf begins to open, until it is fully closed (including automatic closing time). In case the automatic closing function is not inserted, it stays on only during gate movement.
  • Page 18 7.7 Encoder Menu Sensitivity: the obstacle detection function is activated during gate operation and deceleration. N.B.: before setting the functions in the encoder menu, run the gearmotor checks to verify the proper turning direction. < LANGUAGE > English FUNCTIONS Sensibility <...
  • Page 19 M1 closing deceleration%: this adjusts the (M1) first motor’s deceleration starting point before the closing endpoint. The deceleration starting point is calculated as a percentage (from 1% to 40% of a full gate run). See illustration on page 28. N.B.: this function appears only if it is activated in the “decel. Enc” function in the ENCODER menu. <...
  • Page 20 M2. Opening approach %: sets the point at which the gate begins adjusting deceleration before making contact with the closing endpoint of the second motor (M2). The beginning point of adjustment is calculated as a percentage ( between 1% and 15%) of the total gate run time. See illustration on page 30 <...
  • Page 21 X 12 < LANGUAGE > Set Encoder < Set Encoder > English <confirm?(no)> FUNCTIONS ENCODER TIMING ADJ. USERS Set Encoder <confirm?(yes)> INFO See detailed TEST MOT. TEST MOT. description on page 29 7.8 Time setting menu Automatic closing: to set the waiting time when gate is in the open position. Once this time is elapsed, the gate closes automatically.
  • Page 22 Cycle time: the working time of the motor during opening or closing phases is anywhere from 10” to 150”. < LANGUAGE > English E li h FUNCTIONS < Cycle Time > Cycle Time TIMING ADJ. 90s. < 90s. > USERS Cycle Time INFO <...
  • Page 23 Lock time: the time required for releasing the electro-lock after each opening command. The time of operation can be set to between 1” and 5”. < LANGUAGE > English English FUNCTIONS < Lock time > Lock time < > TIMING ADJ. USERS Lock time INFO...
  • Page 24 7.9 Users Radio Menu Add User: to create a new user and assigned function (max. 250 users). < LANGUAGE > Add User < Add User > English E li h <confirm? (no) > FUNCTIONS TIMING ADJ. Add User USERS Code waiting Related Func.
  • Page 25 Remove user: to remove an exisiting user. Confirm the use you wish to remove with the ENTER key. < LANGUAGE > Choose User < Remove Usr. > English < 001:--001-- > FUNCTIONS Choose User TIMING ADJ. < 002:--002-- > USERS Remove Usr.
  • Page 26 : 5.0 FUNCTIONS < Standby Msg. > < System Reset > TIMING ADJ. USERS INFO - WWW.CAME.IT ZM3E TEST MOT. TEST MOT. 7.11 Motor test menu TEST MOT.: Test to check the proper direction of the gearmotors. < LANGUAGE > English...
  • Page 27 7.13 Inputting users 1) From the Users 2) Select “ confirm menu, select “Add Add User Add User (yes)” and press User”. ENTER key to confirm. confirm? (yes) Press ENTER to confirm. 3) Choose which 4) ..will ask to input function to assign to Related Func.
  • Page 28 7.15 Changing code 1) From the Users 2) Choose the user menu, choose Mod. Code Choose User name for which you “Mod. Code”. 001:--U001-- wish to change the Press ENTER to Choose User code and press ENTER confirm. to confirm. 002:--U002-- 3) ..
  • Page 29 7.17 Gate run calibration N.B. before calibrating the gate run, check that the manoeuvring area is free of any obstacles and check the proper direction of rotation of the gearmotors. (para. 7.11) 1) From the Encoder 2) Select “confirm Set Encoder menu, select “Set Set Encoder (yes) and press ENTER...
  • Page 30 7.19 Illustration depicting the areas and points of deceleration and final opening and closing approaches per encoder device. Note: the areas and points of deceleration and fi nal opening and closing approaches are tested according to the parameters set forth by Technical Norms EN12445 and EN12453 regarding compatibility of impact forces generated by moving gate leaves.
  • Page 31 UNI EN ISO 14001 standard to ensure environmental protection. Please continue our eff orts to protect the environment—which CAME considers one of the cardinal elements in the development of its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING The packaging components (cardboard, plastic, etc.) are all classifi...
  • Page 32 HR • Za sve dodatne informacije o poduzeću, proizvodima i tehničkoj podršci: UK • Для отримання будь-якої іншої інформації про компанію, продукцію та технічну підтримку: www. came.com www. came.com CAME Cancelli Automatici S.p.a. CAME Cancelli Automatici S.p.a. Via Martiri Della Libertà, 15 31030 Dosson Di Casier...
