CAME ZM3E Installation Manual

Z series
Hide thumbs Also See for ZM3E:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

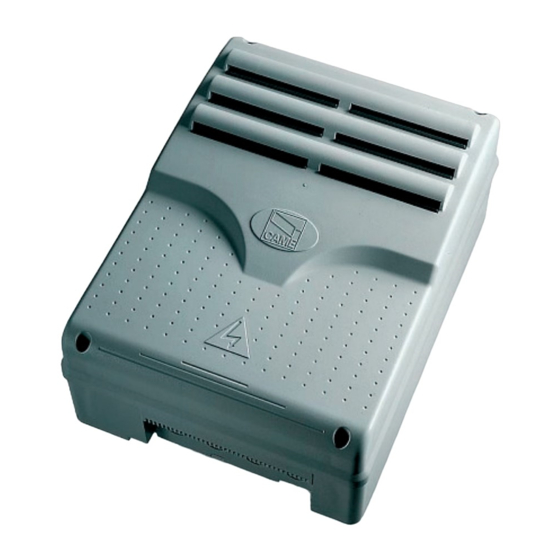

CONTROL PANEL FOR 230V OPERATORS
INSTALLATION MANUAL
ZM3E - ZM3EC
EN
English

Advertisement

Table of Contents
loading

Related Manuals for CAME ZM3E

Summary of Contents for CAME ZM3E

  • Page 1 CONTROL PANEL FOR 230V OPERATORS INSTALLATION MANUAL ZM3E - ZM3EC English...

  • Page 2: Legend Of Symbols

    750 W. 3 Reference Standards For its quality processes management Came Cancelli Automatici is ISO 9001:2000 certified, and for its environmental management it is ISO 14001 certified. Came designs and manufactures entirely in Italy. This product complies with the following...

  • Page 3: Main Components

    4.1 Dimensions, spans and anchoring holes (mm) ZM3C ZM3EC 4.2 Main components 1 - Transformer 2 - M1 gearmotor condenser (black wires) 3 - M2 gearmotor condenser (red wires) 4 - Card fuse 5 - Accessories fuse 6 - Electrolock fuse 7 - Display 8 - Display lighting adjustment trimmer 9 - Memory roll card connector...

  • Page 4: Installation

    5 Installation Installation must be carried out by expert qualified personnel and in full observance of regulations in force. 5.1 Preliminary checks Before installing do the following: • Check that the panel’s anchoring point is protected from possible blows, and that the anchoring surface is solid. Also check that the anchoring is done using the appropriate bolts, screws etc.;...

  • Page 5: Electrical Connections

    5) Snap the cover into place onto the hinges. Close it and fix it using the provided screws. 6) After the adjustments and settings, fix the cover using the provided screws. 6 Electrical connections 6.1 Cable and type and section Type Length of cable Length of cable...
  • Page 6 Signalling and Lighting devices Signal Flasher (socket rating: 230V - 25W max.) Flashes during opening Open gate indicator-light and closing phases. (socket rating: 24V - 3W max.). Turns on when the gate is ajar or open. It turns off when the gate is closed. Cycle lamp: (contact rating: 230V –...
  • Page 7 Gearmotor, mechanical stops M1 - 230V A.C. gearmotor featuring delayed action on opening M2 - 230V A.C. gearmotor featuring delayed action on closing FERNI FERNI FROG A FROG A F7001 KRONO KRONO F7001 F4000 F4000 Gearmotor, encoder ENCODER A ENCODER B M1 - 230V A.C.
  • Page 8 Confi gure either (N.C.) contacts CX, CY or CZ, DF with DFI connections input for EN 12978 compliant safety devices such monitor card as sensitive edges. See CX input functions in: - C7 «Open while closing», During gate closing, opening the contact causes inversion of movement until gate is fully open;...
  • Page 9 7 Programming 7.1 Description of display commands Lingua the <...> symbols on the display are for: Italiano -pointing out the currently, selected item The ESC key is for: The ENTER key is for: - exiting the menu; - entering the menu; - cancelling modifications.

  • Page 10: Menu Structure

    7.3 Menu structure ENTER > > <Deutsch> < > <English <Francais> LANGUAGE > > > > > <Italiano> <Espanol> < FUNCTIONS > ENTER > See detailed functions on pages 17, 18, 19 and 20 (the “ENCODER” function, appears only if <...
  • Page 11 < Turn on > < Disabled > < AutoClose > > ENTER > > <when close> < Disabled > < Turn on > > > <Maintained Act> ENTER > > < Turn on > < Disabled > < Obstacle Det. > >...
  • Page 12 7.4 Main menu < LANGUAGE > < FUNCTIONS > < ENCODER > English Press ENTER It appears only if selected from the “Config.” < TIMING ADJ. > for 1 second Section in the FUNCTIONS menu. < TEST MOT. > < INFO >...
  • Page 13 Obstacle detected: when motor is stopped (gate closed or after a total stop command) it prevents any movement if safety devices, such as photocells, detect any obstacles. < LANGUAGE > English <Obstacle Det.> Obstacle Det. FUNCTIONS Disabled < Disabled > TIMING ADJ.
  • Page 14 Total Stop: this function stops the gate and consequently excludes any automatic closing cycle; for movement to resume, you need to use the keypad or transmitter. Insert safety device on [1-2]; Insert the safety device on [1 -2]; if unused, select “Deactivated” <...
  • Page 15 CZ input: safety contact input can take on the following functions: C1 (re-opening when closing), C2 (re-closing when opening), C3 (partial stop), C4 (obstacle stall), C7 (re-opening when closing, for sensitive edges), C8 (re-closing when opening, for sensitive edges) or, be deactivated. See safety devices on electrical connections. <...
  • Page 16 Endstop: configure the endpoints are normally closed or open contacts. N.B.: this function appears only if selected from the “Config.” function in the FUNCTIONS menu. < LANGUAGE > X 13 English < endstop > endstop FUNCTIONS < > TIMING ADJ. TIMING AD endstop USERS...
  • Page 17 B1-B2 output: setting contact B1-B2 to MONO-STABLE or BI-STABLE (switch) mode. < LANGUAGE > X 17 English English < output B1-B2 > output B1-B2 FUNCTIONS Monostable < Monostable TIMING ADJ. TIMING AD output B1-B2 USERS < Bistable > INFO TEST MOT. TEST MOT Slow Down: setting the deceleration speed when opening or closing, or, only when closing if said deceleration is configured as (Fcap- RallCh.).
  • Page 18 7.7 Encoder Menu (the ENCODER menu, appears only if selected from the “Config.” function in the FUNCTIONS menu.) N.B.: before setting the functions in the encoder menu, run the gearmotor checks to verify the proper turning direction. Sensitivity: the obstacle detection function is activated during gate operation and deceleration. <...
  • Page 19 M1 closing deceleration%: this adjusts the (M1) first motor’s deceleration starting point before the closing endpoint. The deceleration starting point is calculated as a percentage (from 1% to 40% of a full gate run). See illustration on page 28. N.B.: this function appears only if it is activated in the “decel. Enc” function in the ENCODER menu. <...
  • Page 20 M2 closing acceleration %: this adjusts the (M2) second motor’s percentage rate of approach to the final closing and opening points before reaching the opening and closing endpoints. The percentage rate of approach to (goes from 1% to 15% of the full gate run). See illustration on page 28.
  • Page 21 Cycle time: the working time of the motor during opening or closing phases is anywhere from 10” to 150”. < LANGUAGE > English English FUNCTIONS FUNCTION < Cycle Time > Cycle Time TIMING ADJ. 90s. < 90s. > USERS Cycle Time INFO <...
  • Page 22 Lock time: the time required for releasing the electro-lock after each opening command. The time of operation can be set to between 1” and 5”. < LANGUAGE > English English FUNCTIONS FUNCTION < Lock time > Lock time < > TIMING ADJ.
  • Page 23 7.9 Users Radio Menu Add User: to create a new user and assigned function (max. 250 users). < LANGUAGE > Add User < Add User > English English <confirm? (no) > FUNCTIONS FUNCTION TIMING ADJ. TIMING AD USERS Add User <confirm? (yes)>...
  • Page 24 Remove user: to remove an exisiting user. Confirm the use you wish to remove with the ENTER key. < LANGUAGE > Choose User < Remove Usr. > English English < 001:--001-- > FUNCTIONS FUNCTIONS Choose User TIMING ADJ. IMING ADJ <...
  • Page 25 FUNCTION < System Reset > < Standby Msg. > TIMING ADJ. TIMING AD USERS INFO - WWW.CAME. IT ZM3E TEST MOT. TEST MOT 7.11 Motor test menu TEST MOT.: Test to check the proper direction of the gearmotors. < LANGUAGE >...
  • Page 26 7.13 Inputting users 1) From the Users 2) Select “ confirm menu, select “Add Add User Add User (yes)” and press User”. ENTER key to confirm. confirm? (yes) Press ENTER to confirm. 3) Choose which function to assign to Related Func. 4) ..
  • Page 27 7.15 Changing code 1) From the Users menu, choose Mod. Code Choose User “Mod. Code”. 2) Choose the user 001:--U001-- Press ENTER to name for which you Choose User confirm. wish to change the 002:--U002-- code and press ENTER to confirm. 3) ..
  • Page 28 7.17 Gate run calibration N.B. before calibrating the gate run, check that the manoeuvring area is free of any obstacles and check the proper direction of rotation of the gearmotors. (para. 7.11) 1) From the Encoder 2) Select “confirm Set Encoder menu, select “Set Set Encoder (yes) and press ENTER...

  • Page 29: Demolition And Disposal

    UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the development of its operational and market strategies—simply by observing brief recommendations as regards...
  • Page 30 (+33) 4 91 60 69 05 (+49) 71 5037830 (+49) 71 50378383 CAME Automatismos S.a. CAME Automatismos S.a. CAME Americas Automation Llc CAME Americas Automation Llc C/juan De Mariana, N. 17-local 1560 Sawgrass Corporate Pkwy, 4th Floor 28045 Madrid -...
