PR Lighting XL WASH 1200 PR-2905 Product Manual

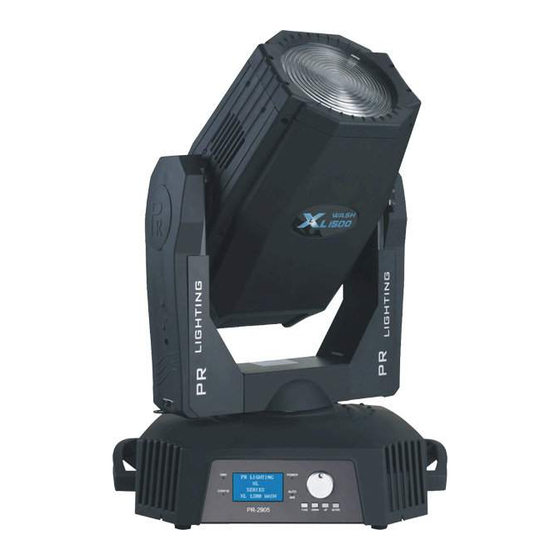

Moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

XL WASH 1200
PR-2905/PR-2905M
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL WASH 1200 PR-2905 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting XL WASH 1200 PR-2905

Summary of Contents for PR Lighting XL WASH 1200 PR-2905

  • Page 1 XL WASH 1200 PR-2905/PR-2905M This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU ERROR MESSAGES DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR WARNING SAFETY CORD (2PCS) To pass 2 SAFETY CORDS through 4 HOLES for safety! CLAMPS (2PCS) HANDLES (2PCS) Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp.

  • Page 5: Power Supply – Mains

    POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 7: Operation Menu

    OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL PR LIGHTING XL SERIES DMX Address=001 XL 1200 WASH DMX Address DMX Address (001-512) Reset Reset Are You Sure? DMX Mode Standard 16 DMX Mode DMX Mode Extended 16 DMX Mode...
  • Page 8 Defaults Defaults Defaults Restore Defaults Display On Always Display Mode Display Off After Delay Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Dimming Display Options Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level...

  • Page 9: Error Messages

    ERROR MESSAGES In the course of launch, XL WASH 1200 examines automatically whether there are errors and if there are, it will display information as follows: Display Message Sensor Err S1-M1 Colour wheel 1 (1# drive board motor 1) error Sensor Err S1-M2 CTO (1# drive board motor 2) error Sensor Err S1-M3...

  • Page 10: Dmx Protocol

    DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode 000-010 Black 011-025 Open Strobe 026-225 Strobe speed from slow to fast 226-255 Open 000-007 Black Dimmer 008-255 Dimming from dark to light (0-100%) Dimmer Fine 000-255 Dimmer in 16 Bit precision 000-016 White 017-035...
  • Page 11 140-145 Rainbow rotation speed 3 146-151 Rainbow rotation speed 4 152-157 Rainbow rotation speed 5 158-163 Rainbow rotation speed 6 164-169 Rainbow rotation speed 7 170-175 Rainbow rotation speed 8 176-181 Rainbow rotation speed 9 182-187 Rainbow rotation speed 10 188-195 Stop in current position Rainbow reverse rotation speed...
  • Page 12 188-195 Stop in current position Rainbow reverse rotation speed 196-201 1(slowest) 202-207 Rainbow reverse rotation speed 2 208-213 Rainbow reverse rotation speed 3 214-219 Rainbow reverse rotation speed 4 220-225 Rainbow reverse rotation speed 5 226-231 Rainbow reverse rotation speed 6 232-237 Rainbow reverse rotation speed 7 238-243...

  • Page 13: Led Indication

    LED INDICATION DMX signal OK Green No DMX signal Flash DMX signal error Yellow Setting the panel Blue Power Running self test mode Red/Green Green Reserved MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced.

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM ACTION Check the fuse on the power socket. The projector doesn’t switch on Replace the lamp. The lamp comes on but the projector Make sure that the projector is correctly configurated. doesn’t respond to the controller Replace or repair the DMX cable. The projector only functions intermittently Make sure the fan is working and not dirty.

  • Page 15: Technical Data

    TECHNICAL DATA VOLTAGES: Electronical ballast（PR-2905）: 100V/120V/200V/220V/230V/240V AC，50/60Hz Magnetic ballast（PR-2905M）: 230V AC，50/60Hz Options: 200/220/240V AC，50/60Hz POWER CONSUMPTION: Electronical ballast（PR-2905）: 1500W@220V Magnetic ballast（PR-2905M）: 1600W@220V LAMP: PHILIPS MSR Gold 1200 SA/2 DE Colour Temperature 7500°K Socket SFc10-4，double ended Manufacturers Rated Lamp Life 750 Hours replacement OSRAM HMI 1200 W/S Colour Temperature...
  • Page 16 HEAD MOVEMENT: Pan 450º, Tilt 270º with auto position correction BEAM ANGLE: 10°narrow angle mode 15°～42° CONTROL: DMX512, 3 pin, 5 pin interfaces 14 channels in short mode, 17 channels in standard mode, and 23 channels in extended mode. Self-test mode OTHER FUNCTIONS: Adjustable Pan &...
  • Page 17 SIZES: See at below LIGHT OUTPUT: 42° （ lux ） 6010 1500 15° （ lux ） 30610 7650 3400 1910 1220 10° （ lux ） 64330 16080 7140 4020 2570 10° 15° 42° DISTANCE (m) 10° DIAMETER (m) 0.89 1.77 2.66 3.55 4.43...
  • Page 18 DMX-SENS2 DMX-SENS1 LED4 LED1 LED3 LED2 Thermostat FAN-POWER FAN-POWER FAN-POWER FAN-POWER DC-SELECT HIGH Ballast LOW Ballast...
  • Page 19 DMX-SENS2 DMX-SENS1 LED4 LED1 LED3 LED2...

  • Page 20: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK POWER SUPPLY 190010098 POWER SUPPLY 190010099 MAINS FILTER 193020008 20A 115/250VAC THERMOSTAT 190010074 150℃ CAPACITOR**** 140010043 70µF/370V BALLAST**** 040070059 230V/50-60Hz, 575W BALLAST 040070079 1200W 90~264V AC IGNITOR**** 040090036 575~1200W 6~8KV IGNITOR 040090043 575~1200W LAMP 100050064...
  • Page 21 21/22...
  • Page 22 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 321010252 Last Revision: 28:05:2007 22/22...
