Gold Note VALORE Plus 425 Owner's Manual page 10

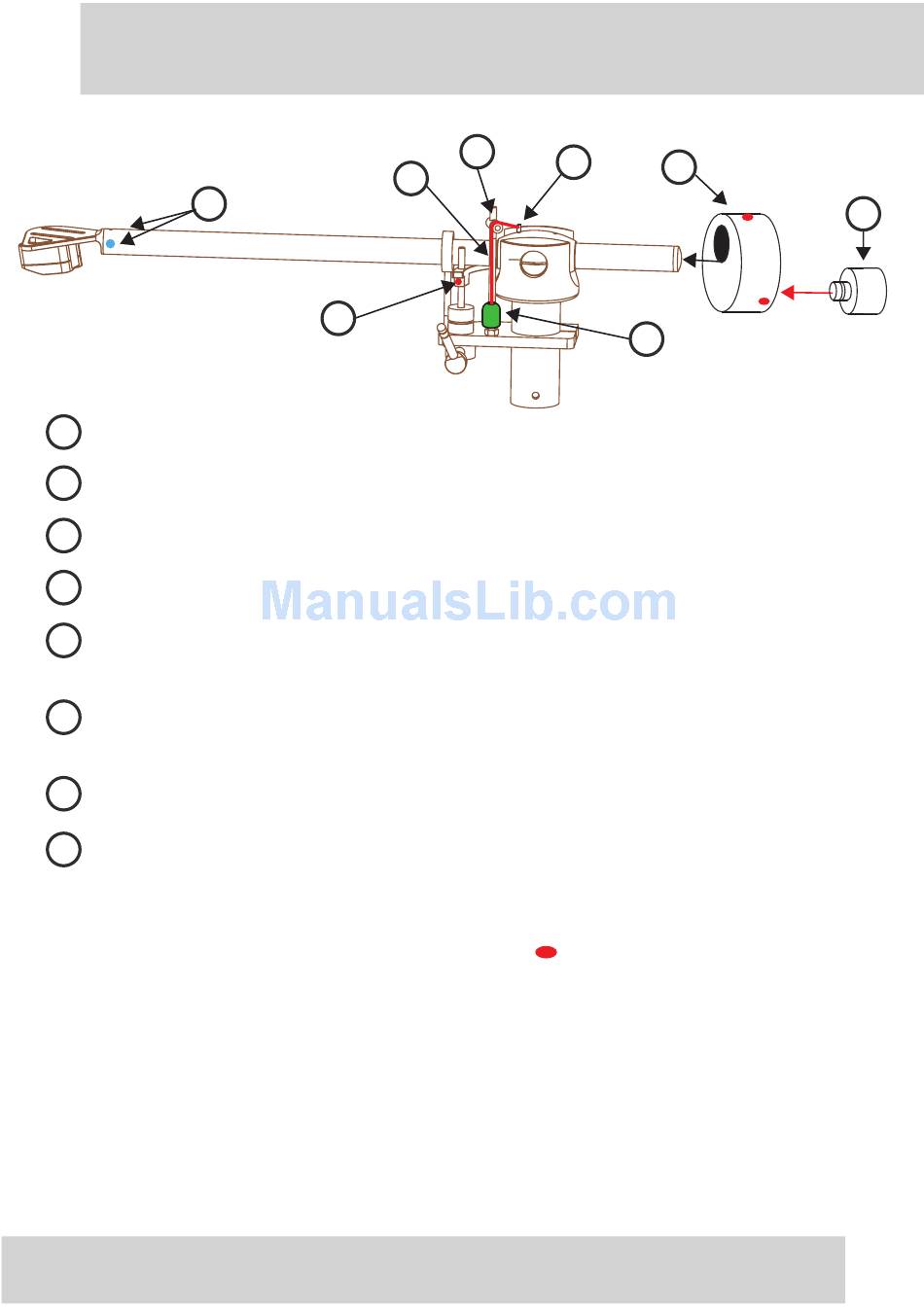

ANTI-SKATE, AZIMUTH & COUNTERWEIGHT ADJUSTMENT
8
1 - Anti-Skate Nylon Wire with lead stopping spot supplied in the tone arm accessories.
2 - Anti-Skate Nylon Nire arm Cylinder Eye
3 - Anti-Skate Bullet Counterweight
4 - Anti-Skate Bar
- Adjusting Lift Bent Bar Hex-Bolt. The Lift Bent Bar can be adjusted loosing the hex-bolt with the
5
1,5mm Allen wrench supplied in the tone arm accessories.
6
- Tone-Arm Large Counterweight to manually set up the main tracking force depending on the phono
cartridge used.
7
- Tone-Arm Small Counterweight to finely set up the tracking force on the phono cartridge.
- Shell Azimuth Adjustment with the 0,9mm Allen Wrench supplied to eventually correct the
8
right alignment of the tone-arm head-shell
Once the right position of the counterweights are set up the counterweight maybe
solidally blocked with hex bolt indicated in the picture as RED
proper Allen Wrench supplied in the tone arm accessories.
Please Note: To adjust the wanted tracking force is necessary to have a precion scale (not included)
Installing the Anti-Skate Nylon Wire:
After the insertion of Anti-Skate Bullet Counterweight (3) into the Anti-Skate Nylon Wire (1) pass through the
other side nylon wire into the small Cylinder Eye (2) and make a knot to block the wire in it as the pitcure shows
above. Lay the wire across the external groove of the Anti-Skate Bar (4). If necessary it is possible increasing
the friction stepping the Nylon Wire on the internal groove of the Anti-Skate Bar (4)
OWNER'S MANUAL
4
1
5
(see the image on next page)
2
6
3
spots with the help of the
7
