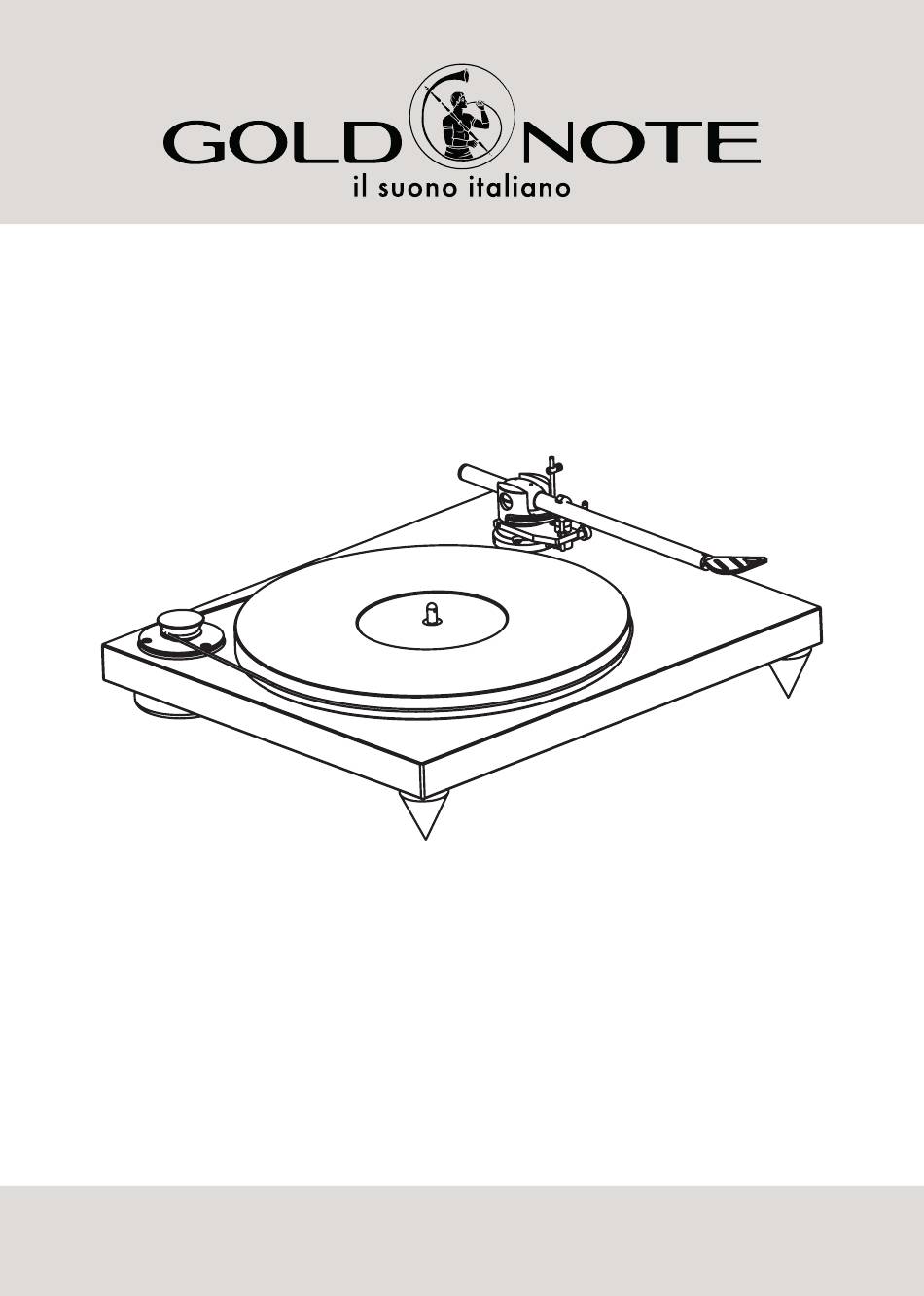

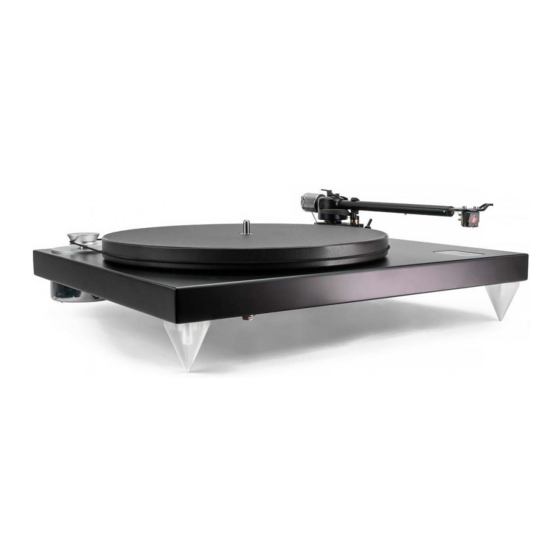

  • Page 1 VALORE 425 LITE THE ITALIAN TURNTABLE USER MANUAL...

  • Page 3: Table Of Contents

    INDEX PACKAGE CONTENT............................ P. 3 INTRODUCTION............................P. 4 KEY FEATURES ............................P. 5 TECHNICAL SPECIFICATIONS........................P. 6 SET-UP INSTRUCTIONS......................... P. 7 INSTALLING THE PLATTER ........................... P. 8 INSTALLING THE BELT ..........................P. 10 ANTI-SKATING, AZIMUTH, COUNTERWEIGHT ADJUSTMENTS ................P.

  • Page 4: Package Content

    PACKAGE CONTENT •1 Turntable Plinth •1 Dust Cover completed with hinges •1 Power Adapter with connecting cables •1 B-5 Ball Bearing with tonearm cable already installed •1 Counterweight •1 Platter Spindle tip that clamps the platter •1 Drive Belt •1 Allen Key of 2,5mm for arm lift board blocking •1 Allen Key of 2,0mm for din pillar removing •1 Allen Key of 1,5mm for VTA tonearm adjustment, lift cueing removing, anti skate cylinder adjust...

  • Page 5: Introduction

    The Valore 425 Lite features a 12Volt synchronous motor The plinth of the Valore 425 Lite is available in black or developed by Gold Note using a special designed micro white lacquer. controlled D/A Converter able to perfectly reshape the sinusoidal AC curve.

  • Page 6: Key Features

    425 Lite turntable, the construction details, the reasons for the technical choices and the originality of the design. • The Valore 425 Lite is a rigid turntable that uses a plinth made of high damped lacquered MDF. • The plinth bears three acrylic spikes for ensuring great insensitivity to vibrations.

  • Page 7: Technical Specifications

    Motor: 12 Volt High Torque synchronous Platter: 20 mm black solid HDF covered with POM Platter Spindle: Split-Spindle™ clamping design Platter Bearing: Chromed Steel 5mm ball bearing Tonearm: B-5 Gold Note Dust Cover: transparent acrylic with hinges POWER Power supply: 18V output...

  • Page 8: Set-Up Instructions

    When the red LED light shuts down, the unit is ready for left side corner. the fine speed adjustment. POSITIONING THE VALORE 425 LITE • PITCH – press repeatedly the 33⅓rpm button until the correct Your VALORE turntable has been designed for home Hi-Fi speed is reached.

  • Page 9: Installing The Platter

    INSTALLING THE PLATTER CONTENT OF THE TURNTABLE BOX 1 Platter 2 Oil Vessel 3 Ball bearing 4 Platter Spindle Tip + Platter spindle PLATTER SPINDLE TIP PLATTER PLATTER SPINDLE BEARING HOUSING...
  • Page 10 INSTALLING THE PLATTER INSTRUCTIONS 1 Remove plug from the middle of the turntable 2 Insert the Ball Bearing into the Bearing Housing* of the turntable taking care to center it on the bottom seat 3 Oil the Platter Spindle as shown in figure 3 4 Insert the Platter Spindle into the Bearing Housing 5 Lay the Platter on the Platter Spindle 6 Secure the Platter Spindle Tip in the threaded hole of the...

  • Page 11: Installing The Belt

    INSTALLING THE BELT Wrap the belt around the pulley and the platter as shown in the pictures:...

  • Page 12: Anti-Skating, Azimuth, Counterweight Adjustments

    ANTI-SKATING, AZIMUTH, COUNTERWEIGHT ADJUSTMENTS ANTI-SKATING nylon wire with bullet counterweight 2 ANTI-SKATING adjustment bar 3 TONEARM COUNTERWEIGHT: to set up the correct tracking force depending on the phono cartridge in use 4 SHELL AZIMUTH ADJUSTMENT: to adjust the alignment of the tonearm head-shell (0,9mm Allen Wrench) INSTALLING THE ANTI-SKATING SYSTEM Slip the loop of the ANTI-SKATING nylon wire over the groove of the ADJUSTMENT BAR Feed the wire through the loop of the SUPPORT HOOP...

  • Page 13: Vta Setup

    VTA SETUP VTA SETUP Loose the Hex -bolt indicated by the arrow on the collar using the 1,5mm Allen Wrench supplied to lift up or down the correctly adjusting the VTA as necessary. Allen-key 1,5 mm Arm board AZIMUTH After the cartridge has been properly installed on the tone arm, adjust the Azimuth of the shell with the supplied 0,9mm Allen Wrench.

  • Page 14: Power Supply

    POWER SUPPLY POWER SUPPLY ADAPTER Is necessary to use the correct AC plug based on your local area. Size: 67.3 x 43.5 x 37.5 mm 43.5 mm PLEASE NOTE: Before plugging the AC adapter plug the round connector indicated here.

  • Page 15: Power Adapter And Speed Control

    • OUTER BUTTON starts and stops the 45rpm speed. When the 45rpm is playing its red LED light turns on. The Valore 425 Lite also features a fine speed adjustment “Pitch Control” function to achieve a precise control over the speed of the turntable.

  • Page 16: Calibration: Cartridge Overhang, Alignment And Speed

    CALIBRATION: CARTRIDGE OVERHANG, ALIGNMENT AND SPEED Our turntables and tone arms are always supplied with the Gold Note Calibration Tool to calibrate correctly the setup. With this tool you will be able to adjust: A) Phono Cartridge alignment B) Overhang allignment 66 mm.

  • Page 17: Cartridge Alignment

    CARTRIDGE ALIGNMENT PHONO CARTRIDGE ALIGNMENT To correctly align the phono cartridge and achieve the best tracking position, point the tip of the phono cartridge into the white circles as in the picture below. The body of the phono cartridge must be aligned to the vertical stripes in order to achieve the best position for musical reproduction.

  • Page 18: Detachable Dust Cover

    DETACHABLE DUST COVER The new Gold Note dust cover features detachable hinges, a new proprietary design developed to let you enjoy your turntable at the best in any situation. The new dust cover is incredibly versatile and allows the usage of the turntable with or without it.

  • Page 19: Warranty And Service

    WARRANTY AND SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused.

  • Page 20: Troubleshooting

    Gold Note may warm up to 50° Celsius without creating any problem. Noise on startup The turntable produces a slight It is normal for the belt to produce a slight noise rubbing noise upon startup when starting. For spare parts visit the official Gold Note store at: www.akamaiaudio.it...

  • Page 21: Important Safety Information

    Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel.
  • Page 22 IMPORTANT SAFETY INFORMATION 1. Follow the instructions and store them 10. Unplug this apparatus during lightning storms or when unused for long periods of time. 2. Heed all warnings 11. Refer all servicing to qualified service personnel only. 3. Do not use this apparatus near water Servicing is required when the apparatus has been dam- 4.
  • Page 24 Gold Note Audio Gold Note Akamai S.r.l. service@goldnote.it www.goldnote.it...
