VALORE 425 Lite
Italian Prestige Turntable
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Valore 425 Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Gold Note Valore 425 Lite

Summary of Contents for Gold Note Valore 425 Lite

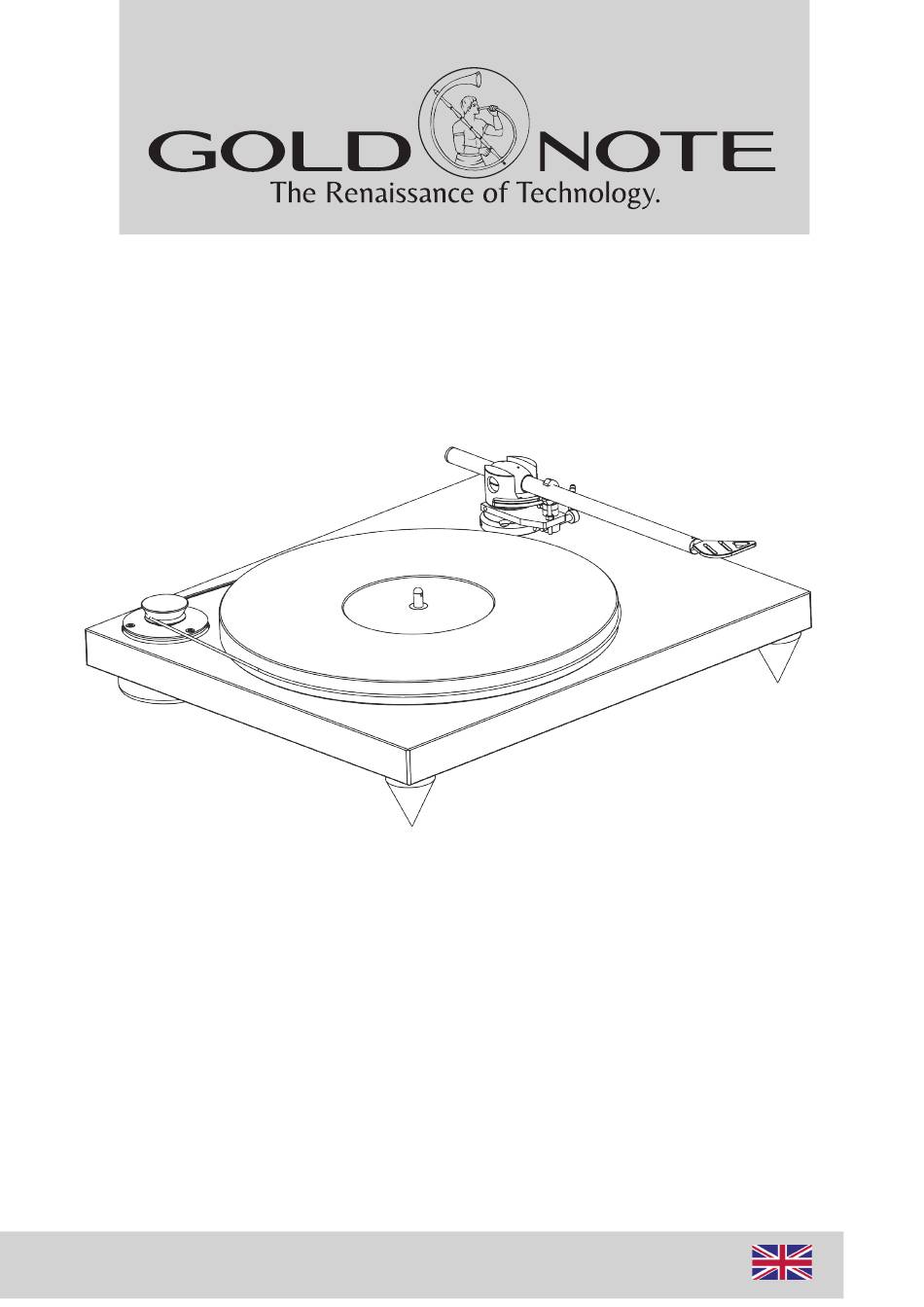

  • Page 1 VALORE 425 Lite Italian Prestige Turntable OWNER’S MANUAL...

  • Page 2: Important Safety Information

    The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel. Please record the model and serial numbee and retain them for your records.
  • Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.
  • Page 4 All Gold Note products are proudly designed, manufactured and assembled in Italy 100% page 3 OWNER’S MANUAL...
  • Page 5 •1 TURNTABLE plinth • The Valore 425 Lite is a rigid turntable that uses a •1 DUST COVER completed with Hinges plinth made of high damped lacquered MDF. •1 POWER ADAPTER with CONNECTING CABLES •...
  • Page 6 SPECIFICATION & TECHNICAL FEATURES MAIN FEATURES FINISHES •PLINTH 30mm thick Black or White lacquered • WOW & FLUTTER 0,3% • RUMBLE -72dB • METAL PARTS Silver Tone Arm Black & Silver • SPEED 33⅓ and 45 rpm ±0,1% • SPEED CHANGING Electronic with fine pitch control •...

  • Page 7: Set-Up Instruction

    To get out the PITCH CONTROL MODE press and hold for 5seconds both 33⅓ and 45 buttons together. POSITIONING THE VALORE 425 LITE REFERENCE IMAGE PAG.12 Your VALORE turntable has been designed for home Hi-Fi systems. It must be protected from direct sunshine rays and humidity.

  • Page 8: Installing The Platter

    Installing the platter For the assembling the Turntable Platter you need these parts: 20mm thick Platter made of MDF/POM Platter Spindle Tip that clamps the platter (1x) STEP 1 Lay down the Platter of the turntable as shown in the picture taking care it perfectly fits the spindle flat surface.

  • Page 9: Installing The Belt

    Installing the belt For installing the belt you need these parts: - Belt supplied Wrap the belt around the puelly and the Platter as shown in the picture. OWNER’S MANUAL page 8...
  • Page 10 ANTI-SKATING, AZIMUTH, COUNTERWEIGHT ADJUSTMENTS 1 - ANTI-SKATING nylon wire with bullet counterweight - ANTI-SKATING support hoop - ANTI-SKATING adjustment bar - TONEARM COUNTERWEIGHT: to set up the correct tracking force depending on the phono cartridge in use - SHELL AZIMUTH ADJUSTMENT: to adjust the alignment of the tonearm head-shell (0,9mm Allen Wrench) INSTALLING THE ANTI-SKATING SYSTEM 1 - Slip the loop of the ANTI-SKATING nylon wire over the groove of the ADJUSTMENT BAR 2 - Feed the wire through the loop of the SUPPORT HOOP...
  • Page 11 VTA SETUP VTA SETUP Loose the Hex-bolt indicated by the arrow on the collar using the 1,5mm Allen Wrench supplied to lift up or down the arm correctly adjusting the VTA as necessary. AZIMUTH After the cartridge has been properly installed on the tone arm, adjust the Azimuth of the shell with the supplied 0,9mm Allen Wrench.

  • Page 12: Power Supply

    POWER SUPPLY - Power Supply Adapter AC Plug It is necessary to select the correct AC plug of the local working area to insert into the adapter. U.S.A plug European plug U.K. Plug Australian plug PLEASE NOTE WELL: Before plugging the AC adapter plug the low voltage rounded connector.
  • Page 13 POWER ADAPTER & SPEED CONTROL - Connecting the Power Supply Adapter Use exclsuively the original GOLD NOTE AC adapter to power the turntable to ensure the correct performance. PLEASE NOTE WELL: Before plugging the AC adapter plug the rounded connector indicated here.
  • Page 14 The Inner line is for checking the 45rpm OVERHANG: To get the right Overhang it is necessary to insert the Gold Note Calibration Tool into the turntable record Pin and position the cartridge Tip on the indicated overhang of the phono cartridge manufacturer as well indicated in the picture below.

  • Page 15: Cartridge Alignment

    CARTRIDGE ALIGNMENT PHONO CARTRIDGE ALIGNMENT: To correctly align the phono cartridge having the best tracking position, point the tip of the phono cartridge into the red circle both of the Green and the Blue ones indicated in the picture below. The phono cartridge body must be aligned on the stripes around to have a correct working geometry.
  • Page 16 WARRANTIES WARRANTIES REGISTRATION To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different coun- try of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused.

  • Page 17: Troubleshoting

    • Be sure to always use shielded cables for the amp connections. For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 16...
  • Page 18 Do not use any alcohol to clean the turntable anodised label, pulley and motor spindle. Only dry cloth is allowed • Leather covered plinth may be cleaned with special dedicated cream for that. For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 17...
  • Page 19 USER NOTE OWNER’S MANUAL page 18...
  • Page 20 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
