Summary of Contents for Gold Note Valore 400

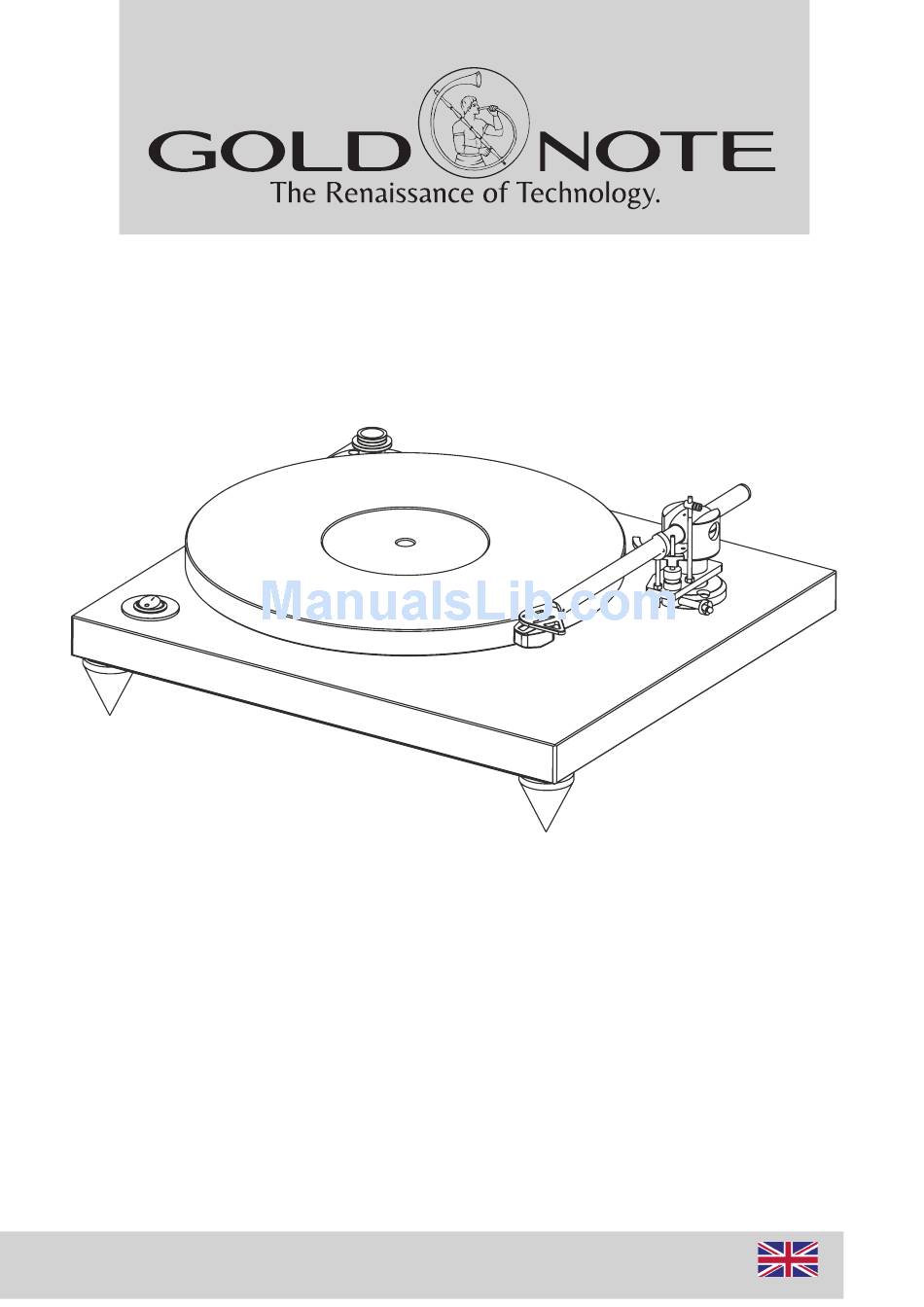

- Page 1 Valore 400 Italian Prestige Turntable OWNER’S MANUAL...
-
Page 2: Important Safety Information
The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel. Please record the model and serial numbee and retain them for your records. - Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.
- Page 4 The Valore is a genuine Plug&Play unit and due to its compact size can be used in a large variety of applica- tions. All Gold Note products are proudly designed, manufactured and assembled in Italy 100% page 3 OWNER’S MANUAL...

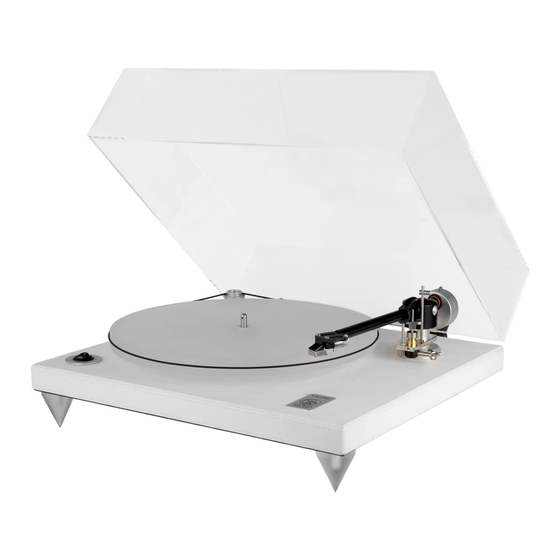

- Page 5 VALORE 400 turntable, the construction details, the reasons for the technical choices and the originality of the design. The VALORE 400 is a rigid turntable that uses a plinth made of high damped lacquered MDF. The plinth bears three acrylic spikes for ensuring great insensitivity to vibrations.
- Page 6 • POWER CONSUMPTION 5 Watt Max. UPGRADES • 12V SYNCHRONOUS MOTOT 12 Volt Hight Torque externally powered motor • EXTERNAL AC FILTER Lucca AC Distributor • OTHER Gold Note Lucca Power Chord PHYSICAL • DIMENSIONS 400x120x360mm (WxHxD) • WEIGHT Kg. 8,00 OWNER’S MANUAL...
-
Page 7: Set-Up Instruction
POSITIONING THE VALORE 400 • BLACK damping ring area only Your VALORE 400 turntable is designed for home Hi-Fi systems. It must be protected from direct sunshine rays and humidity. Do not put it close to strong heating sources, electrical and electronic motors, mobile phones etc. - Page 8 ANTI-SKATE, AZIMUTH & COUNTERWEIGHT ADJUSTMENT - Anti-Skate Nylon Wire with lead stopping spot supplied in the tone arm accessories. - Anti-Skate Nylon Nire arm Cylinder Eye - Anti-Skate Bullet Counterweight - Anti-Skate Bar - Adjusting Lift Bent Bar Hex-Bolt. The Lift Bent Bar can be adjusted loosing the hex-bolt with the 1,5mm Allen wrench supplied in the tone arm accessories.
- Page 9 VTA SETUP CYLNDER EYE VTA SETUP Insert the supplied anti-skate weight Loose the indicated Hex-bolt of the arm (3)[see previous page] into the collar with the 1,5mm Allen Wrench sup- anti-skate Nylon then pass the Nylon plied in the tone-arm accessories, to lift Wire through the micro hole of the and down the arm correctly adjusting the...
- Page 10 The Inner line is for checking the 45rpm OVERHANG: To get the right Overhang it is necessary to insert the Gold Note Calibration Tool into the turntable record Pin and position the cartridge Tip on the indicated overhang of the phono cartridge manufacturer as well indicated in the picture below.
-
Page 11: Cartridge Alignment
CARTRIDGE ALIGNMENT PHONO CARTRIDGE ALIGNMENT: To correctly align the phono cartridge having the best tracking position, point the tip of the phono cartridge into the red circle both of the Green and the Blue ones indicated in the picture below. The phono cartridge body must be aligned on the stripes around to have a correct working geometry. - Page 12 WARRANTIES WARRANTIES REGISTRATION To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different coun- try of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused.
-
Page 13: Troubleshoting
For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 12... - Page 14 Any acid will irreversibly damage the unit fine finishes. Do not use any alcohol to clean the turntable anodised label, pulley and motor spindle. Only dry cloth is allowed For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 13...
- Page 15 USER NOTE OWNER’S MANUAL page 14...
- Page 16 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
