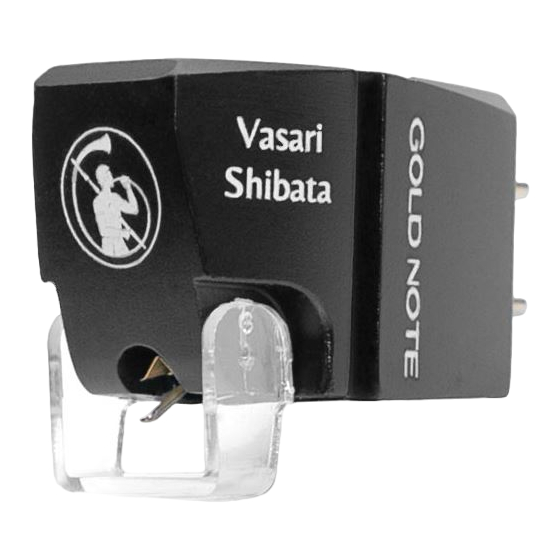

THANK YOU FOR PURCHASING THE
VASARI STEREO CARTRIDGE.
PACKAGE CONTENT
|
Cartridge body
|
Set of head-shell fixing 2,5mm screws
(non-magnetic)
|
2mm Allen Wrench
|
User Manual
TECHNICAL SPECIFICATION
Type
MM phono cartridge
Compliance
10×10-6cm/dyne
Output level
Frequency response
Impedance
Channel separation
Diamond
Diamond size
Total weight
VASARI
The innovative and beautiful design of the
Vasari benefits from 25 years of experience
in engineering High-End audio components.
Designed with computer modelling, the Vasari
Series achieves the peak performance of the
MM technology.
The high-damping body, made of superior
quality materials, and the ultra-rigid cantilever
in Aluminium make the Vasari a superb
tracker, a characteristic that allows our custom
diamond stylus to extract all the information
from the vinyl groove so that your system can
perfectly recreate the musical event in all its
details and complexity. The Vasari is available
in three models: Shibata, Gold and Red.
The Vasari Shibata and Vasari Gold feature a
Channel balance
<2dB
Cantilever
Aluminium
Shibata
4mV
10 - 30000Hz
500Ω
>25dB
Shibata
3.5×20µm
9.5g
BEFORE USING
1 The stylus is very delicate and applying excessive
force to the stylus, such as finger pressure, can
result in damages. Handle the cartridge with the
utmost care.
2 A powerful magnet is used in the cartridge.
Operating steel/magnetic tools or similar items
near the cartridge will exert a force on the
magnet and may result in damages to the stylus
and the cartridge.
Coil Wire
Copper
Magnet
Alnico
Gold
4mV
15 - 25000Hz
1000Ω
>22dB
Elliptical
7.5×15.5µm
9.5g
duralumin body while the Vasari Red features a special
ultra-damped photopolymer resin body that is 3D
printed. The three models also differ in the cut of the
diamond tip: shibata on the Shibata model, elliptical on
the Gold and conical on the Red.
With each model delivering an output level of 4mV, they
are the ideal cartridges for our turntables thanks to their
lightweight bodies.
Completing our range of cartridges, the Vasari Series is
the best MM design we have ever made, offering a new
and engaging musical experience.
Hole-diamond distance
9mm
Inductance
500mH
Red
4mV
15 - 25000Hz
1000Ω
>20dB
Conical
15.5µm
7g

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shibata and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold Note Shibata

Summary of Contents for Gold Note Shibata

  • Page 1 The three models also differ in the cut of the Designed with computer modelling, the Vasari diamond tip: shibata on the Shibata model, elliptical on Series achieves the peak performance of the the Gold and conical on the Red.
  • Page 2 24,9mm 15.8mm SET-UP Fig.1 Mount the cartridge on the tonearm head-shell using the supplied Allen Wrench and one set of the 2,5mm screws. Adjust it to the stylus position suggested for your turntable system (see Fig.1). The output terminals are colour coded for ease of use (see Fig.2).

  • Page 3: Technische Angaben

    9.5g VASARI Das innovative und schöne Design der wiedergeben kann. Vasari-Tonabnehmersysteme profitiert Das Vasari ist in drei Modellen erhältlich: Shibata, Gold 25 Jahren Erfahrung in der Entwicklung von und Red. High-End-Audiokomponenten. Vasari- Der Vasari Shibata und der Vasari Gold verfügen Serie wurde mithilfe von Modellbildung am über einen Duraluminiumlegierung, während der...

  • Page 4: Montage

    24,9mm 15.8mm MONTAGE Abbildung 1 Montieren Sie den Tonabnehmer mit dem mitgelieferten Inbusschlüssel und dem Satz 2,5mm-Schrauben am Headshell des Tonarms. Stellen Sie ihn auf die für Ihr Plattenspielersystem vorgeschlagene Nadelposition ein (siehe Abbildung 1). Ausgangsanschlüsse sind für eine leichte Handhabung farbcodiert (siehe Abbildung 2).

  • Page 5: Specifiche Tecniche

    9.5g VASARI Il design innovativo di Vasari è il risultato di Vasari Shibata e Gold sono caratterizzate da un corpo in 25 anni di esperienza nel settore dell’audio Duralluminio mentre quello di Vasari Red è stampato in High-End. Progettata al computer con l’uso...

  • Page 6: Istruzioni Di Montaggio

    24,9mm 15.8mm ISTRUZIONI DI MONTAGGIO Fig.1 Montare la testina sullo shell utilizzando la chiave a brugola e il set di viti da 2,5 mm in dotazione. Seguire le istruzioni del giradischi o del braccio che si sta utilizzando avendo cura di non inclinare né ruotare la testina (come illustrato in Fig.1).
