Using The Calf Plate - Excel 100 Technical Manual

Setting height of the elevating legrest(s)
Turn the black button on the elevating legrest, see Figure 12
-
Select the desired height, make sure the holes in the top two tubes are together and turn the black button
-
down
Make sure the comfort leg support in the desired position
-
Figure 10
Setting angle of the elevating legrest
Move the joystick with the black button toward the wheelchair. The gas spring in the comfort leg support
-
moves up automatically, see Figure 13
If you support the comfort leg downwards want to move, you control lever with the black button toward
-
the wheelchair to maintain and support the leg while gently pushing down
5.5

Using the calf plate

Folding the calf plate back

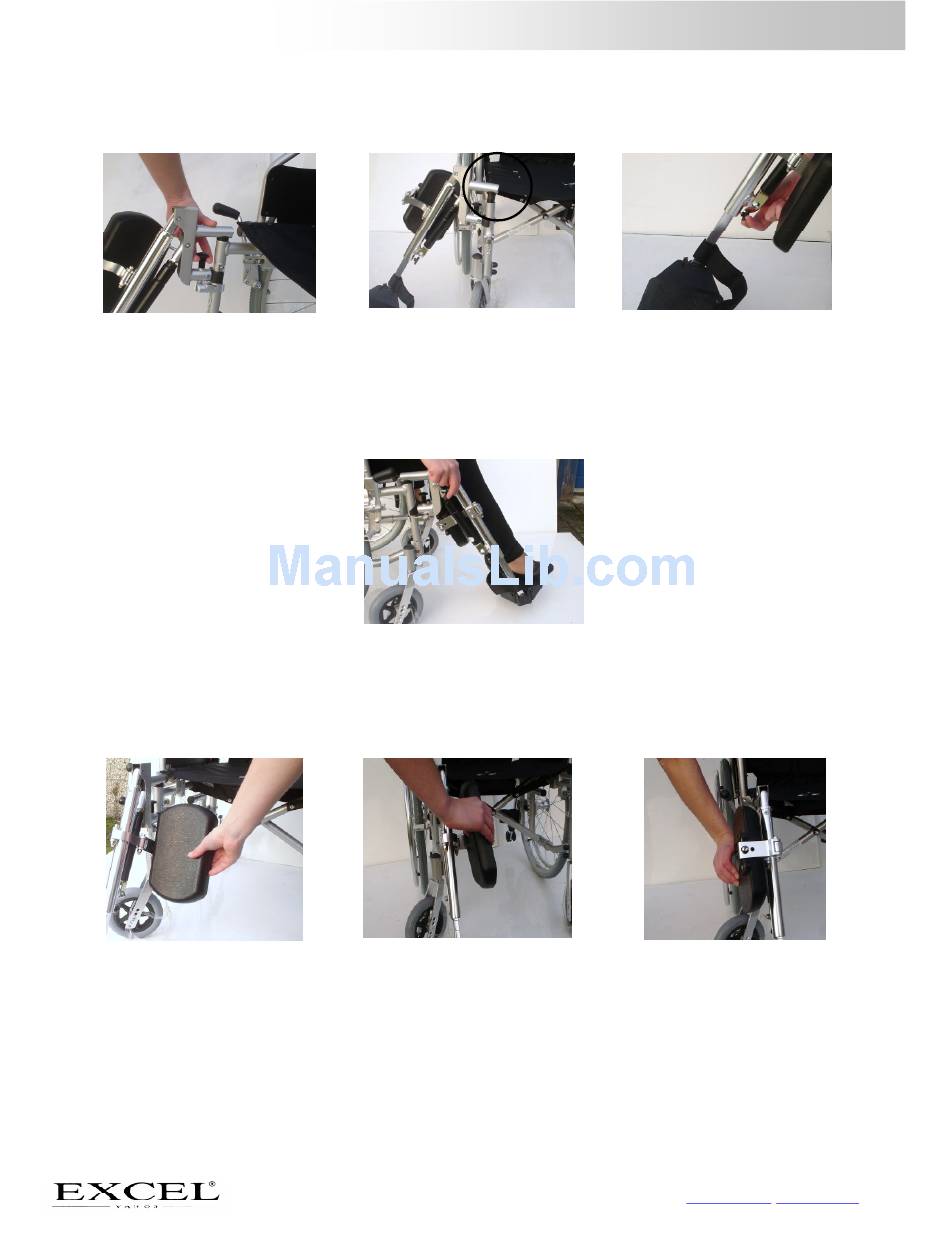

Get a hold of the calf plate and put it into the position shown on the first picture of figure 14. rotate
-
around the legrest as shown on the last two pictures of figure 14.
Figure 11
Figure 14
