Swing the footrests 90 ˚ to the outside of your wheelchair and pull the complete footrest straight up from
-
the mounting tube
Replacing the footrest back on your wheelchair
Attach your folded footrest back to the frame at an angle of 90° swung outwards
-
Turn the footrest so that it is parallel with your frame, as shown in Figure 5
-
You should hear a click. This click confirmed that the foot is in position
-
Setting height of the foot plate
Turn the black button on the footrest independently, see Figure 6
-
Select the desired height, make sure the holes in the top two tubes together and turn the black button until
-
tight
Make sure the foot plate is in place and that the length is equal on both sides
-
Setting height of the foot plate (socket)
For adjusting the height of the footplate you need to use the enclosed wrench number 6
Tighten the bolt on the footrest independently, see Figure 6
-
Select the desired height and tighten the bolt down
-
Make sure the foot plate is in place and that the length is equal on both sides
-
5.4

Using the elevating leg support

Swinging the elevating legrest(s) away
Pull the black button upwards, see Figure 10
-
You can now swing your elevating legrest(s) inwards and outwards
-
Removing the elevating legrest(s) from your wheelchair
Pull the black button upwards, see Figure 10. - You can now swing your elevating legrest(s) inwards and
-
outwards
Swing the elevating leg support 90 ˚ to the outside of the wheelchair and pull it straight up from the
-
receiving tube
Replacing the elevating legrest(s) back on your wheelchair
Attach your elevating legrest back to the frame at an angle of 90° swung outwards, figure 11
-
Turn the legrest so that it is parallel with your frame, as shown in Figure 10
-
You should hear a click. This click confirmed that the foot is in position
-

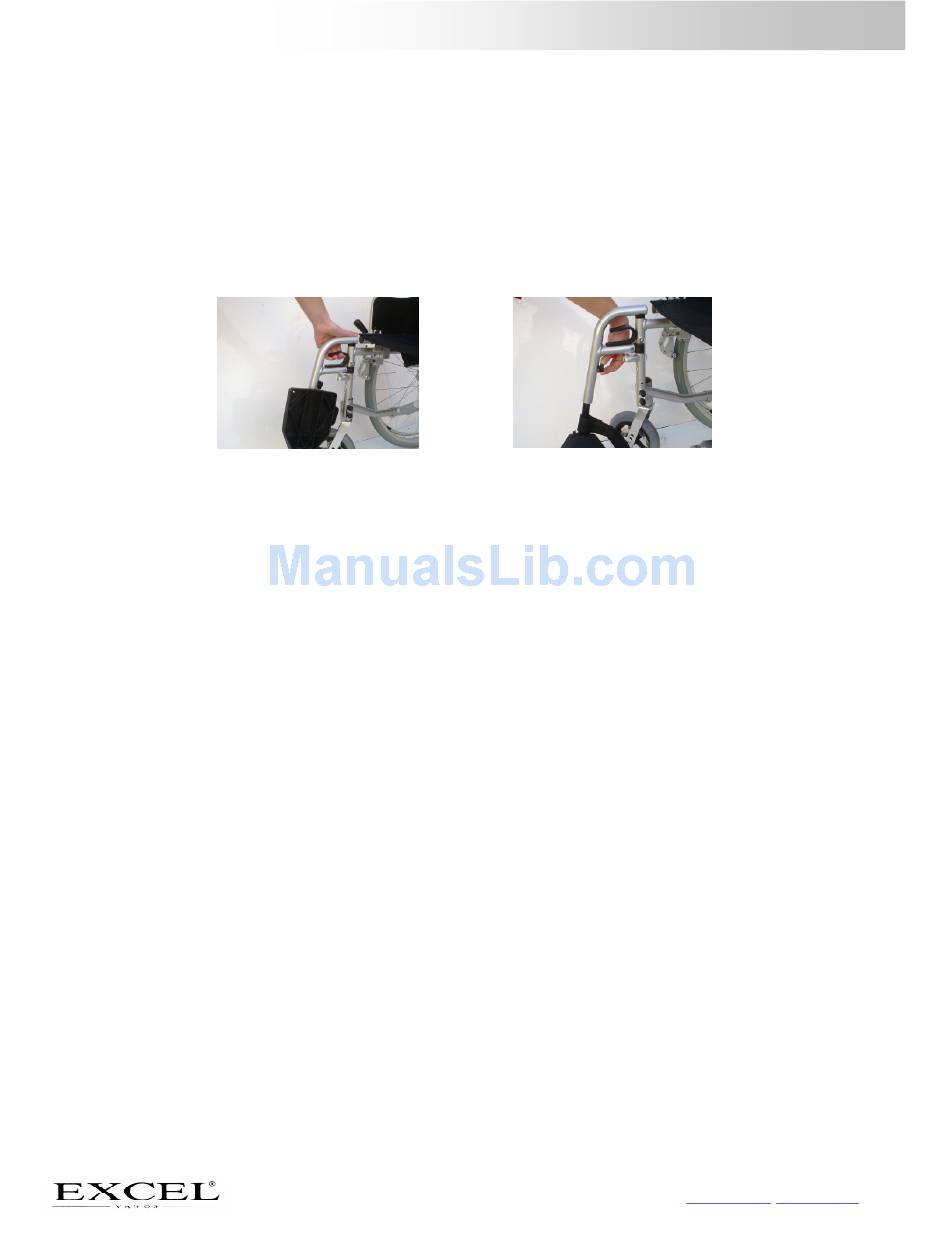

Figure 5
© 2008 VAN OS MEDICAL UK LTD., Corunna House Business Centre, 42-44 Ousegate, Selby, North Yorkshire, YO8 4NH
~ 15 ~
Excel 100 basic Technical
Figure 6
