Ganz ZN8 User Manual

Ir network high speed dome camera
Hide thumbs Also See for ZN8:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

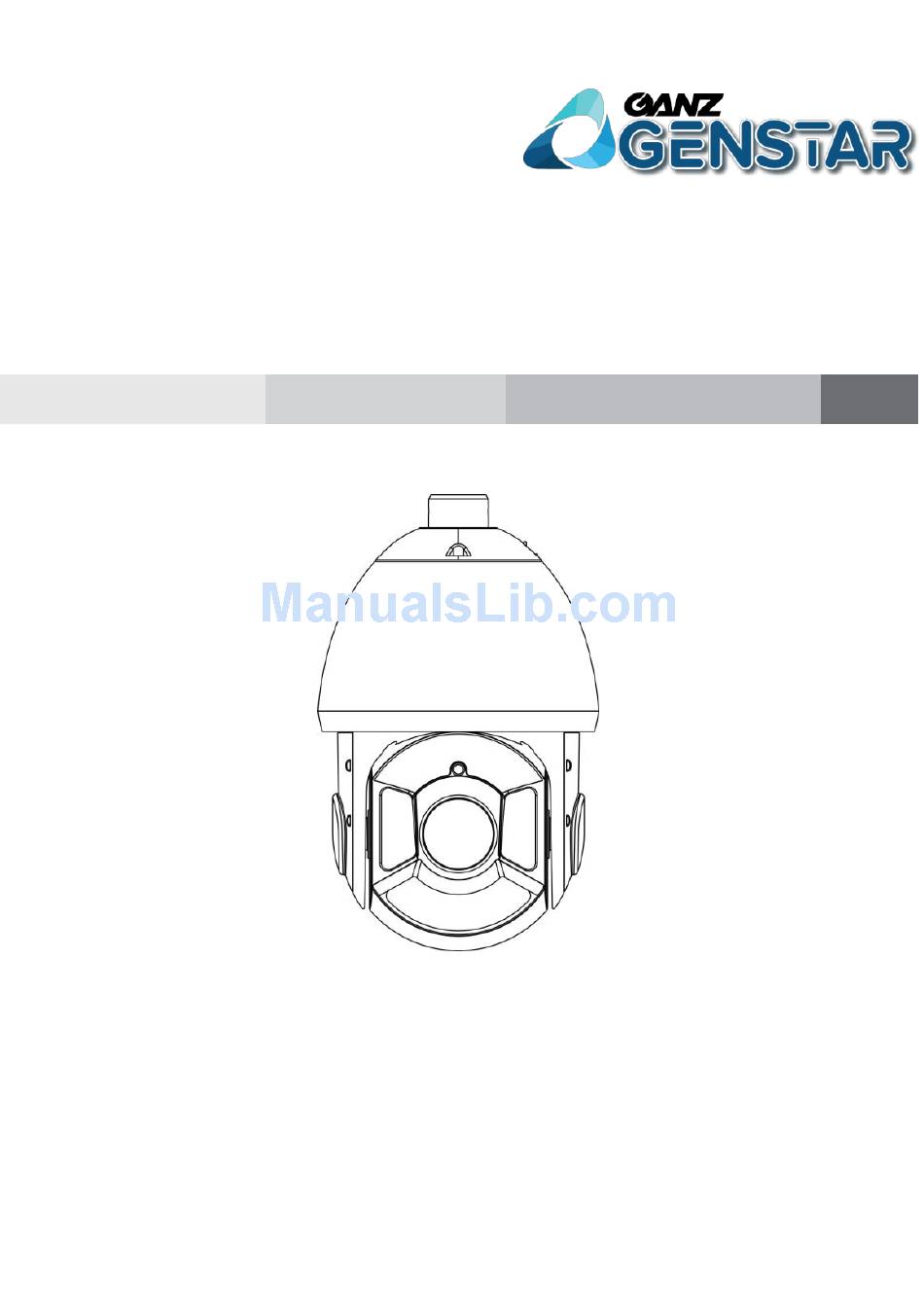

GANZ ZN8 IR Network High Speed Dome

User Manual

Issue
V1.1
Date
2016-02-22

Advertisement

Table of Contents
loading

Related Manuals for Ganz ZN8

Summary of Contents for Ganz ZN8

  • Page 1: User Manual

    GANZ ZN8 IR Network High Speed Dome User Manual Issue V1.1 Date 2016-02-22...
  • Page 2 Issue V1.1 (2016-02-22)

  • Page 3: Precautions

    IR Network High Speed Dome User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 IR Network High Speed Dome Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device.
  • Page 5 IR Network High Speed Dome User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.

  • Page 6: Table Of Contents

    IR Network High Speed Dome Contents User Manual Contents Precautions ........................i 1 Overview ........................1 1.1 Hardware connection ...................... 1 1.2 Features .......................... 3 2 Device Dimensions ....................5 3 Device Installation ....................6 3.1 Installation Preparation ....................6 3.2 Installing a Dome Camera ....................

  • Page 7: Overview

    IR Network High Speed Dome User Manual 1 Overview Overview 1.1 Hardware connection Figure 1-1 shows the appearance of an IR Network High Speed Dome. Figure 1-1 IR Network High Speed Dome Figure 1-2 shows the multi-head cable used by a dome camera. Table 1-1describes cores of the multi-head cable.
  • Page 8 IR Network High Speed Dome 1 Overview User Manual Figure 1-2 Multi-head cable Table 1-1 Hardware port connection Color Function Description Brown Alarm output channel Seven channels of switching-value alarm input and two channels of switching-value alarm output. Brown/Bl Alarm output channel 1 common terminal Alarm output channel Red/Black...

  • Page 9: Features

    IR Network High Speed Dome User Manual 1 Overview Color Function Description Green/Bla Alarm input channel 6 Blue Alarm input channel 7 Blue/Blac Alarm input channel common terminal Network port Connects to an external audio device such as a speaker. Red-taped Audio output Connects to an external audio device...
  • Page 10 IR Network High Speed Dome 1 Overview User Manual Experts Group (MJPEG) or H.264 standard. The frame rate and bit rate can be configured. I/O Features  Support bidirectional intercom and unidirectional broadcast.  Provides a 10/100 Mbit/s self-adaptive Ethernet port. Other Features ...

  • Page 11: Device Dimensions

    IR Network High Speed Dome User Manual 2 Device Dimensions Device Dimensions Figure 2-1 shows the camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.1 (2016-02-22)

  • Page 12: Device Installation

    IR Network High Speed Dome 3 Device Installation User Manual Device Installation 3.1 Installation Preparation When installing the camera, you may require the following tools and accessories listed in Table 3-1. You need to prepare only listed tools as accessories are delivered with the camera.
  • Page 13 IR Network High Speed Dome User Manual 3 Device Installation Step 3 Fix the connector to the bracket to constitute a wall bracket component, shown in Figure 3-1. Figure 3-1 Fix the connector to the bracket Step 4 Thread all the cables through the wall bracket component, shown in the Figure 3-2. Figure 3-2 Thread all cables through the wall bracket component Issue V1.1 (2016-02-22)

  • Page 14: Suspension Installation

    IR Network High Speed Dome 3 Device Installation User Manual Step 5 Attach the PTZ camera to the wall bracket component and fit it into the connector. Then tighten the four screws using to fix the connector and camera, shown in the Figure 3-3.
  • Page 15 IR Network High Speed Dome User Manual 3 Device Installation Figure 3-4 Fix the connector to the bracket base Step 4 Thread all cables through the cable hole on the side of the suspension bracket, shown in the Figure 3-5. Figure 3-5 Thread the cables through the cable hole on the bracket Issue V1.1 (2016-02-22)
  • Page 16 IR Network High Speed Dome 3 Device Installation User Manual Step 5 Attach the PTZ camera to the suspension bracket component and fit it into the connector. Then tighten the four screws fixing the PTZ dome and bracket, shown in the Figure 3-6.

  • Page 17: Quick Configuration

    IR Network High Speed Dome User Manual 4 Quick Configuration Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter.

  • Page 18: Main

    IR Network High Speed Dome 4 Quick Configuration User Manual logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system.

  • Page 19: Browsing Video

    IR Network High Speed Dome User Manual 4 Quick Configuration Element Description When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed.
  • Page 20 IR Network High Speed Dome 4 Quick Configuration User Manual Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.

  • Page 21: Download The Right Control In The Internet Explorer

    IR Network High Speed Dome User Manual 4 Quick Configuration The login page is display when the control is loaded. 4.3.2 Download the right control in the Internet Explorer Preparation  User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ...

  • Page 22: In The Google, Firefox, Or Safari Browsers Watch Live Video

    IR Network High Speed Dome 4 Quick Configuration User Manual Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen.
  • Page 23 IR Network High Speed Dome User Manual 4 Quick Configuration The Local Network page is displayed, as shown in Figure 4-7. Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting...
  • Page 24 IR Network High Speed Dome 4 Quick Configuration User Manual Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.

  • Page 25: Technical Specifications

    IR Network High Speed Dome User Manual Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Items parameters Module: CMD 8300DN Module Image sensor 1/2.8 Type SONY Exmor CMOS Sensor function Effective 2M Pixels pixels Horizontal >...
  • Page 26 IR Network High Speed Dome 5 Technical Specifications User Manual Items parameters Module: CMD 8300DN Slow shutter ON/OFF Sharpness 0-100 Contrast 0-100 Saturation 0-100 Light Support suppression Defogging 0-100 Nose reduction Manual/Auto >50dB Dome Horizontal 360 Degree continuous function range Horizontal 0.01-180 degree/sec speed...
  • Page 27 IR Network High Speed Dome User Manual Items parameters Module: CMD 8300DN H.264 (CBR): Use the stream control Video H.264 (VBR): encoding Can choose the image quality: 1-9 format MJPEG： Can choose the image quality: 1-9 Stream type CBR、VBR Image coding Support 1920*1080p@30fps Dual-stream Support...
  • Page 28 IR Network High Speed Dome 5 Technical Specifications User Manual Items parameters Module: CMD 8300DN multi-level management Browse IE7/IE8/IE9/IE10 Software development kit (Linux/Windows SDK) C++, provide a neutral SDK User 3 level: administrator, operator, ordinary users, ordinary permissions users can only browse Infrared Infrared lamp Manual/Auto...
  • Page 29 IR Network High Speed Dome User Manual Items parameters Module: CMD 8300DN features consumption Operating Temperature: -40℃–60℃ temperature Humidity: <90% and humidity Protection IP66(outdoor), 4K lightning protection, anti-surge, anti- level break Storage -50-85℃ humidity 0-95% environment Dimension(m Φ205×332 Weight(withou 4.3KG t the bracket) Installation Wall, ceiling, corner mounted...

  • Page 30: Troubleshooting

    IR Network High Speed Dome 6 Troubleshooting User Manual Troubleshooting Table 6-1 describes the common faults and solutions. Table 6-1 Common fault and solution Problems Possible Causes Remedies Power supply fault Replace No action when power is switched Bad connection of the power Correct Transformer damaged Replace...

  • Page 31: A Lightning Proof And Surge Signal Proof

    IR Network High Speed Dome User Manual Lightning Proof and Surge Signal Proof The product adopts TVS lightning proof technology to prevent from damage by lightning strike below 1500 W and impulse signals such as surge; but it is also necessary to abide by the following precautions to ensure electrical safety based on practical circumstances: ...

  • Page 32: B Hazardous Substance Declaration

    IR Network High Speed Dome User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit ×...
