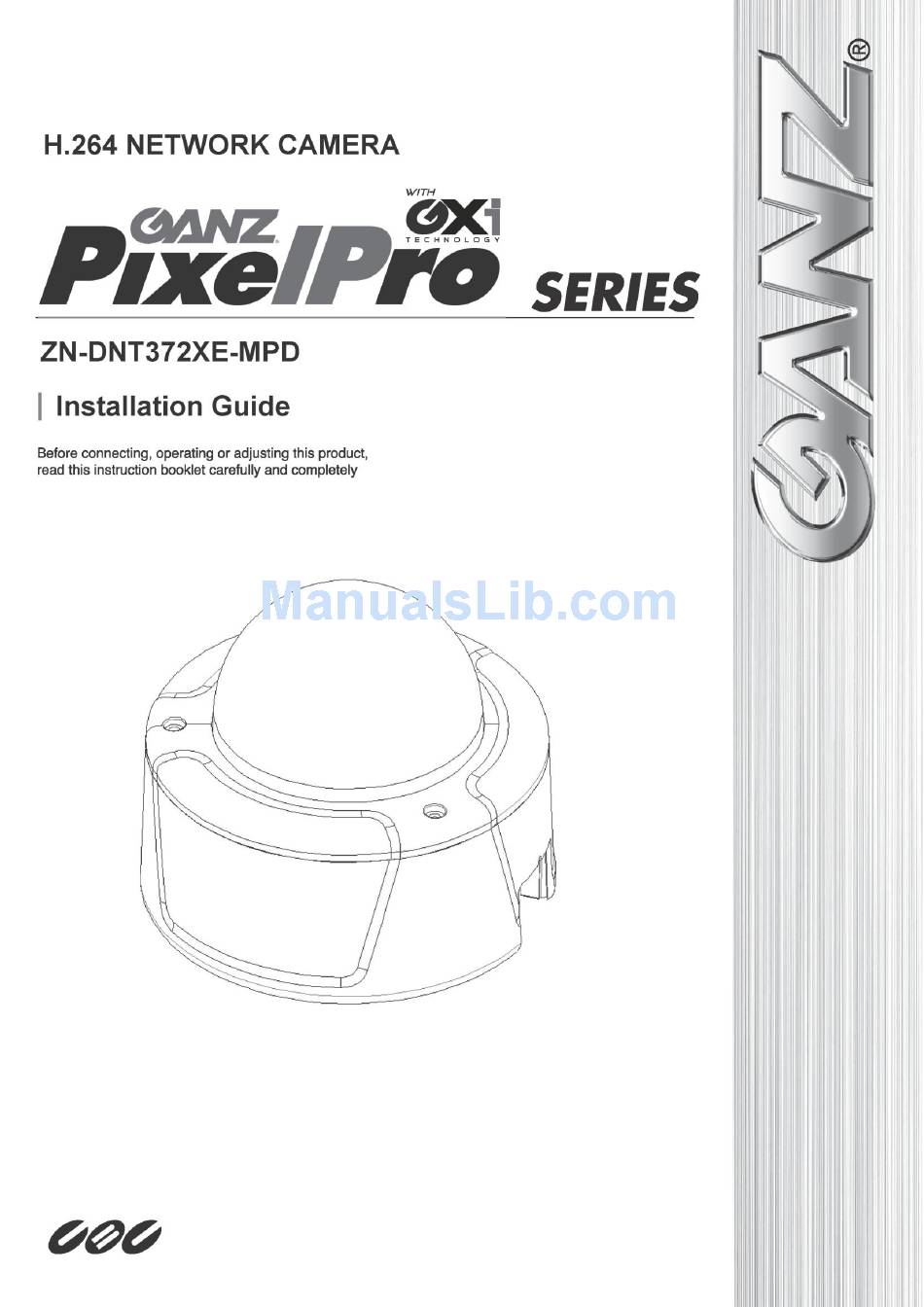

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide Precaution  Please read this manual carefully before installing the unit.  Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the camera in a place exposed to direct sunlight. ...

  • Page 3: Table Of Contents

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 8 4.1. Installing the camera ......................8 4.1. Adjusting the angle of the camera / zoom and focus ............10 4.3.

  • Page 4: Features

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 1. FEATURES Camera  1/2.7” 1080p CMOS Image Sensor  True Day/Night  DC Auto Iris Lens   Remote Zoom/Focus Control (One Click Focus)  Remote Pan/Tilt Control (Repositionable dome camera)  Weather Proof (IP66) ...

  • Page 5: Package Contents

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The packaging contains: Camera DC Power Adaptor DC Power Jack Cable Terminal Blocks Video Output Cable Screws and anchor blocks Side Plug Hex Wrench Driver Side Cover...

  • Page 6: Part Names

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 3. PART NAMES ⑦ ⑧ ⑥ ⑤ ① ② ④ ③ Ferrite Core Top View ⑪ ETHERNET RED : POWER + BLACK : POWER - ⑨ YELLOW : AUDIO IN BLUE : AUDIO GND ⑩...
  • Page 7 PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide ⑧ Pan buttons Use the buttons to control rotation of the lens in horizontal. ⑨ Terminal connector Connector for cable connection of audio input/output and digital input/output. Refer to “5. Connections” for more details. ⑩...

  • Page 8: Installation

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 4. INSTALLATION 4.1. Installing the camera 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes.

  • Page 9: Installation Template

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide Installation Template Installation template 37 V1.0 (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package separ ately. Caution 03-2014-A...

  • Page 10: Adjusting The Angle Of The Camera / Zoom And Focus

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 4.1. Adjusting the angle of the camera / zoom and focus 1) Remove the dome cover. 2) Use PAN buttons(+, -) to control rotation of the lens in horizontal plane. Use TILT buttons(+, -) to control rotation of the lens on vertical plane. 3) Use ZOOM buttons(+, -) to adjust the camera’s angle of view.

  • Page 11: Setting The Image Attribute

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation For more detailed information, refer to the provided “PixelPro GXi series Web Page User's...

  • Page 12: Connections

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 5. CONNECTIONS N / A N / A N / A N / A N / A N / A N / A N / A VIDEO VIDEO AUDIO AUDIO DC12V DC12V ETHERNET ETHERNET MICRO SD MICRO SD ...
  • Page 13 PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide ② Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor like the following figures. The interface type can be controlled by web user interface. Refer to the provided “PixelPro GXi series Web Page User's Manual”...
  • Page 14 PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide ④ LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. When the LAN cable is connected, the orange LED light will become solid and green LED will blink every 250 millisecond.

  • Page 15: Configuration

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device.

  • Page 16: Custom Ip Environment

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;...

  • Page 17: View Video On Web Page

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default user name and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install”...

  • Page 18: View Video Using Ipadmin Tool

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. 2.

  • Page 19: Reset

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 6.3. Reset Perform the following procedures to reset your device. Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings.

  • Page 20: Safe Mode

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default.
  • Page 21 PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.

  • Page 22: Appendix (A): Specifications

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS CMOS Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 0.5 lux ELECTRICAL Illumination BW: 0.001 Lux (DSS ON) AGC Control Auto 3.0(w) –...

  • Page 23: Electrical Characteristics

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide Electrical Characteristics Power Source 12VDC, 24VAC / PoE IEEE802.3af Power Consumption 16.20W @ 12VDC Video Output 1 Vp-p, 75Ω, Composite Audio Input MIC in, 0.178Vp-p, 10K Ω Audio Output Line out, 2.26Vp-p, 10K Ω Max 50mA@5VDC, TTL level 1.5V threshold Max 50mA@24VDC On-state resistance: 50 Ω...

  • Page 24: Appendix (B): Power Over Ethernet

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W of power the device.

  • Page 25: Appendix (C): Dimensions

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-A...

  • Page 26: Appendix (D): Hexadecimal-Decimal Conversion Table

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. BA 186 BD 189 AA 170 AB 171 AD 173 DA 218 DB 219 DD 221 03-2014-A...

  • Page 27: Revision History

    PixelPro GXi Series ZN-DNT372XE-MPD(-1) Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.00 09/25/2012 First release version 01A.01 10/05/2012 Operation Temp. confirmed 01A.02 10/12/2012 Pan/Tilt range and speed spec and description added 01A.03 10/29/2012 Setup Procedure description updated 01A.04 01/10/2013 Modification on Pan/Tilt Specification 01A.05 03/11/2013 Modification on Weight...
