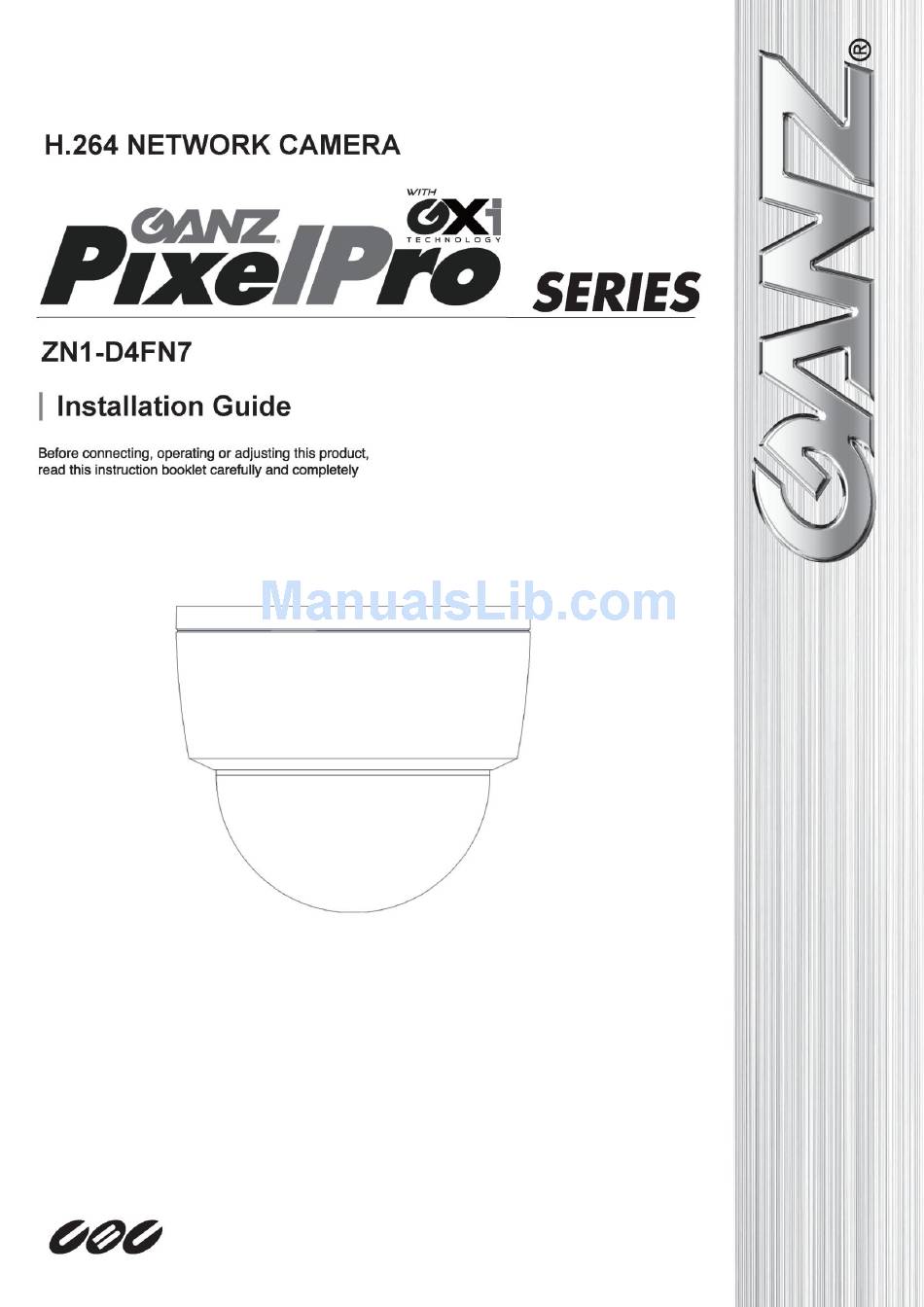

- Page 1 PixelPro GXi Series ZN1-D4FN7 Installation Guide 03-2014-A...
-
Page 2: Precaution
PixelPro GXi Series ZN1-D4FN7 Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. -
Page 3: Table Of Contents
PixelPro GXi Series ZN1-D4FN7 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.2. Manual adjustment for 3-axis movements ................ 9 4.3. -
Page 4: Features
PixelPro GXi Series ZN1-D4FN7 Installation Guide 1. FEATURES Camera SONY EXMOR 1/2.9” 1080p CMOS Image Sensor Digital Day / Night Video H.264 Baseline, Main, High Profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) Max 30fps in 1080p ... -
Page 5: Package Contents
PixelPro GXi Series ZN1-D4FN7 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor Universal Plugs Screws and anchor blocks Quick Installation Guide Camera Opener Ferrite Core Installation Template The contents above are subject to change without prior notice. -
Page 6: Part Names
PixelPro GXi Series ZN1-D4FN7 Installation Guide 3. PART NAMES * Models herein and their appearance are subject to change without any prior notice. ① Reset button Use the button to restart the device or to reset it to Factory Default. -
Page 7: Installation
PixelPro GXi Series ZN1-D4FN7 Installation Guide 4. INSTALLATION 4.1. Installing the camera 1) Place the installation template (outline shown on the next page) included in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes. - Page 8 PixelPro GXi Series ZN1-D4FN7 Installation Guide Installation Template lation template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. 03-2014-A...
-
Page 9: Manual Adjustment For 3-Axis Movements
PixelPro GXi Series ZN1-D4FN7 Installation Guide 4.1. Manual adjustment for 3-axis movements A. Rotate the lens B. Pan the lens with C. Tilt the lens with with upper lens shell reinforced lower body horizontal platform Adjust the lens to the desired position by manually moving its upper lens shell, reinforced body or horizontal platform in the following directions. -
Page 10: Setting The Image Attribute
PixelPro GXi Series ZN1-D4FN7 Installation Guide 4.3. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The... -
Page 11: Connections
PixelPro GXi Series ZN1-D4FN7 Installation Guide 5. CONNECTIONS In Com Out Com ④ ③ 03-2014-A... - Page 12 PixelPro GXi Series ZN1-D4FN7 Installation Guide ① Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor like the following figures. The interface type can be controlled by web user interface.
- Page 13 PixelPro GXi Series ZN1-D4FN7 Installation Guide ③ LAN Connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. Refer to “Appendix (B). Power over Ethernet”...
-
Page 14: Configuration
PixelPro GXi Series ZN1-D4FN7 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 15: Custom Ip Environment
PixelPro GXi Series ZN1-D4FN7 Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 16: View Video On Web Page
PixelPro GXi Series ZN1-D4FN7 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install” to proceed. -
Page 17: View Video Using Ipadmin Tool
PixelPro GXi Series ZN1-D4FN7 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 18: Reset
PixelPro GXi Series ZN1-D4FN7 Installation Guide 6.3. Reset Perform the following procedures to reset your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 19: Safe Mode
PixelPro GXi Series ZN1-D4FN7 Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 20 PixelPro GXi Series ZN1-D4FN7 Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 21: Appendix (A): Specifications
PixelPro GXi Series ZN1-D4FN7 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. ELECTRICAL Color: 1.0 lux, BW: 0.001 lux (DSS ON) Illumination... -
Page 22: Electrical Characteristics
PixelPro GXi Series ZN1-D4FN7 Installation Guide Electrical Characteristics Power Source 12VDC / PoE Power Consumption 2.64W @ 12VDC Video Output Audio Input Audio Output Max 50mA@5VDC, TTL level, VIL=0.8V(max), VIH=2.0V(min) Max 50mA@24VDC On-state resistance: 50 Ω (max continuous) Environment Condition... -
Page 23: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZN1-D4FN7 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 24: Appendix (C): Dimensions
PixelPro GXi Series ZN1-D4FN7 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-A... -
Page 25: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZN1-D4FN7 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec 03-2014-A... -
Page 26: Revision History
PixelPro GXi Series ZN1-D4FN7 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.03 07/05/2013 First release version 09-2013-A 09/04/2013 Minor updates 03-2014-A 03/31/2014 Correct explanation for PoE 03-2014-A...
