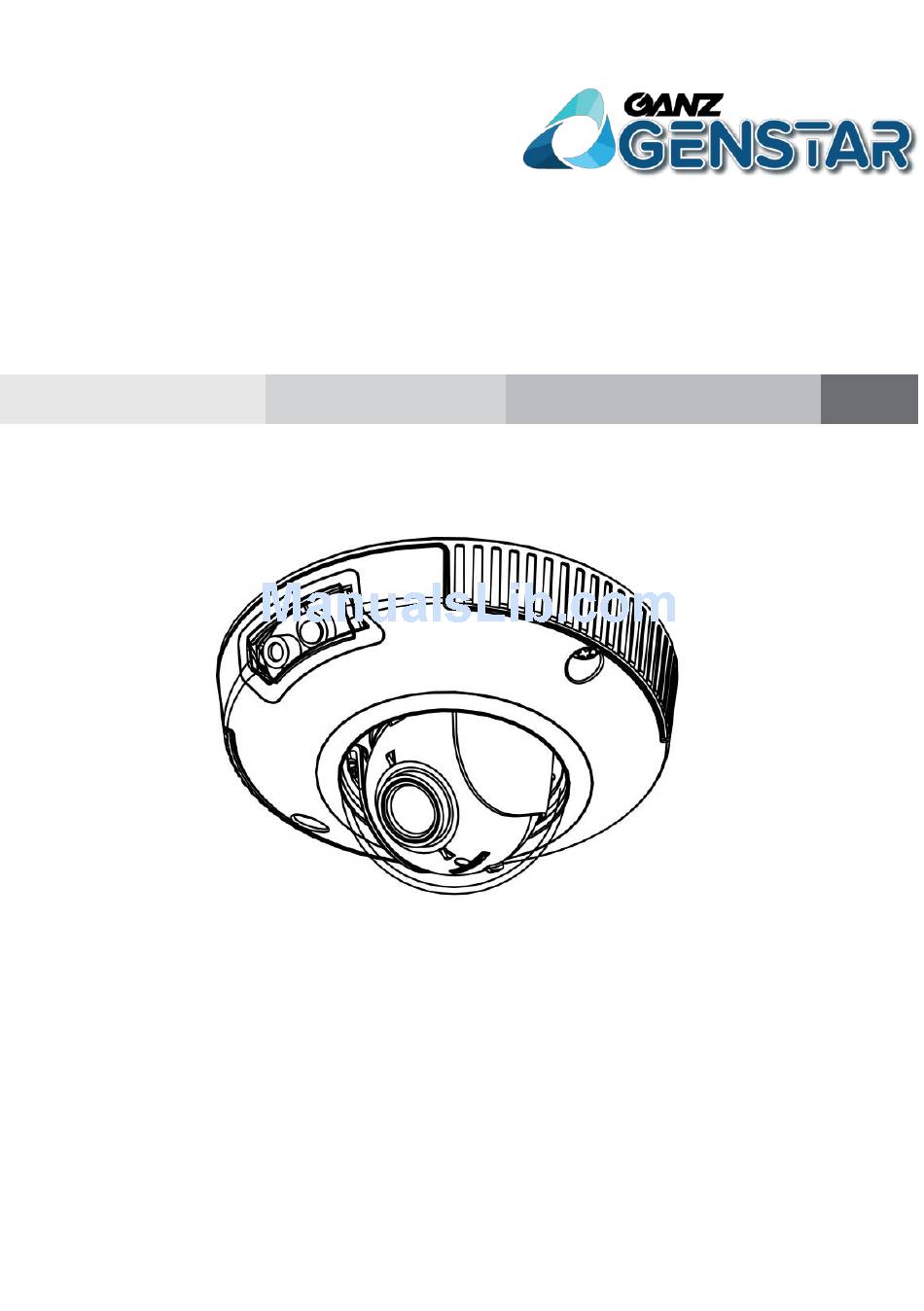

Page 1: User Manual
GANZ ZN8 Mini Infrared Anti-smashing Dome IP Camera User Manual Issue V1.0 Date 2016-02-22... -
Page 3: Precautions
Mini Infrared Anti-smashing Dome IP Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place. - Page 4 Mini Infrared Anti-smashing Dome IP Camera Precautions User Manual Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. ...
- Page 5 Mini Infrared Anti-smashing Dome IP Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.
-
Page 6: Table Of Contents
Mini Infrared Anti-smashing Dome IP Camera Contents User Manual Contents Precautions ........................i 1 Overview ........................1 1.1 Hardware Connection ..................... 1 1.2 Features .......................... 3 2 Device Dimensions ....................5 3 Device Installation ....................6 3.1 Preparations ........................6 3.2 Installation Mode...................... -
Page 7: Overview
Mini Infrared Anti-smashing Dome IP Camera User Manual 1 Overview Overview 1.1 Hardware Connection Figure 1-1 shows the multi-head cable used by the mini infrared dome IP camera, which is described in Table 1-1. Figure 1-1 Multi-head cable Table 1-1 Multi-head cable description Port Description Network access... - Page 8 Mini Infrared Anti-smashing Dome IP Camera 1 Overview User Manual Figure 1-2 Internal structure Table 1-2 Descriptions of hardware interfaces Component Description VIDEO(video Outputs analog video signal and connects a TV monitor to output) watch analog videos. POWER(power POE can be used to supply power or external 12V power supply) supply can be connected.
-
Page 9: Features
Mini Infrared Anti-smashing Dome IP Camera User Manual 1 Overview Component Description SD card slot Connects an SD card. Note: When installing an SD card, make sure that the SD card is not in the write protection status and then insert the SD card into the card slot. - Page 10 Mini Infrared Anti-smashing Dome IP Camera 1 Overview User Manual Provides a 10/100Mbits/s self-adaptive Ethernet port. Other Features Support the heartbeat function that allows the management host to learn the running status of the IP camera in real time. ...
-
Page 11: Device Dimensions
Mini Infrared Anti-smashing Dome IP Camera User Manual 2 Device Dimensions Device Dimensions Figure 2-1 shows the camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2016-02-22) -
Page 12: Device Installation
Mini Infrared Anti-smashing Dome IP Camera 3 Device Installation User Manual Device Installation 3.1 Preparations You may need the tools and accessories shown in Table 3-1 during the installation (you need to prepare the tools by yourself, and the accessories are in the package of the camera). -
Page 13: Installation Mode
Mini Infrared Anti-smashing Dome IP Camera User Manual 3 Device Installation To avoid the influence of moisture, please electrify the device at least half an hour after the installation is completed before sealing the cover. 3.2 Installation Mode The mini infrared dome IP camera can be installed in ceiling mounting or side wall mounting mode. - Page 14 Mini Infrared Anti-smashing Dome IP Camera 3 Device Installation User Manual Figure 3-2 Opening the cover Step 2 Take out the installation positioning sticker in the package box, remove the release paper on the back of the sticker, and paste the sticker on the required installation position on the top.
- Page 15 Mini Infrared Anti-smashing Dome IP Camera User Manual 3 Device Installation Figure 3-3 Installing the camera on the ceiling Step 6 Connect the RJ45 network conversion adapter in the accessory package to the power wiring terminal. In this step, you can perform operations such as inserting or removing the SD card, resetting a function, and adjusting a video.
- Page 16 Mini Infrared Anti-smashing Dome IP Camera 3 Device Installation User Manual Figure 3-4 Adjusting the direction and angle of the camera Step 7 Install the cover by using the T15 combination wrench or an electric screwdriver with T15 torx, as shown in Figure 3-5. Figure 3-5 Installing the cover Issue V1.0 (2016-02-22)
-
Page 17: Quick Configuration
Mini Infrared Anti-smashing Dome IP Camera User Manual 4 Quick Configuration Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter. -
Page 18: Main
Mini Infrared Anti-smashing Dome IP Camera 4 Quick Configuration User Manual logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system. -
Page 19: Browsing Video
Mini Infrared Anti-smashing Dome IP Camera User Manual 4 Quick Configuration Element Description When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed. - Page 20 Mini Infrared Anti-smashing Dome IP Camera 4 Quick Configuration User Manual Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.
-
Page 21: Download The Right Control In The Internet Explorer
Mini Infrared Anti-smashing Dome IP Camera User Manual 4 Quick Configuration The login page is display when the control is loaded. 4.3.1 Download the right control in the Internet Explorer Preparation User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ... -
Page 22: In The Google, Firefox, Or Safari Browsers Watch Live Video
Mini Infrared Anti-smashing Dome IP Camera 4 Quick Configuration User Manual Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen. - Page 23 Mini Infrared Anti-smashing Dome IP Camera User Manual 4 Quick Configuration The Local Network page is displayed, as shown in Figure 4-7. Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting...
- Page 24 Mini Infrared Anti-smashing Dome IP Camera 4 Quick Configuration User Manual Parameter Description Setting Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually. through a gateway. [Default value] 192.168.1.1 Preferred DNS IP address of a DNS server.
-
Page 25: Technical Specifications
Mini Infrared Anti-smashing Dome IP Camera User Manual 5 Technical Specifications Technical Specifications Table 5-1 lists the technical specifications of the mini infrared dome IP camera. Table 5-1 Technical specifications Items parameters Description Camera Image sensor 1/3" CMOS sensor function Video standard Configurable 2688(H) ×1512(V) - Page 26 Mini Infrared Anti-smashing Dome IP Camera 5 Technical Specifications User Manual Items parameters Description Focal length of 2.8mm/3.6mm(optional) the lens Iris Fixed Iris Infrared Infrared 6~10 m function distance External Network RJ-45, 10/100Base-T self-adaptive Ethernet port interface interface RS485 Not supported Alarm Not supported interface...
- Page 27 Mini Infrared Anti-smashing Dome IP Camera User Manual 5 Technical Specifications Items parameters Description Embedded Not supported microphone Network Network IPv4/ Ipv6, RTSP/RTP/RTCP, TCP/UDP, HTTPS, protocol DHCP, DNS, DDNS, PPPoE, SMTP Streaming Unicast mode Number of users in concurrent access Function Corridor mode Support Defogging...
- Page 28 Mini Infrared Anti-smashing Dome IP Camera 5 Technical Specifications User Manual Items parameters Description features Power supply DC12V(-15%-+10% )/ PoE (802.3af) 2.0W(IR LED OFF; Heater OFF) Power 3.2W(IR LED ON; Heater OFF) consumption 5.2W(IR LED ON; Heater ON) Operating -25℃–+55℃ temperature Operating Humidity: <90% (non-condensing)
-
Page 29: A Hazardous Substance Declaration
Mini Infrared Anti-smashing Dome IP Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit ×...
