Summary of Contents for Ganz ZN8
-

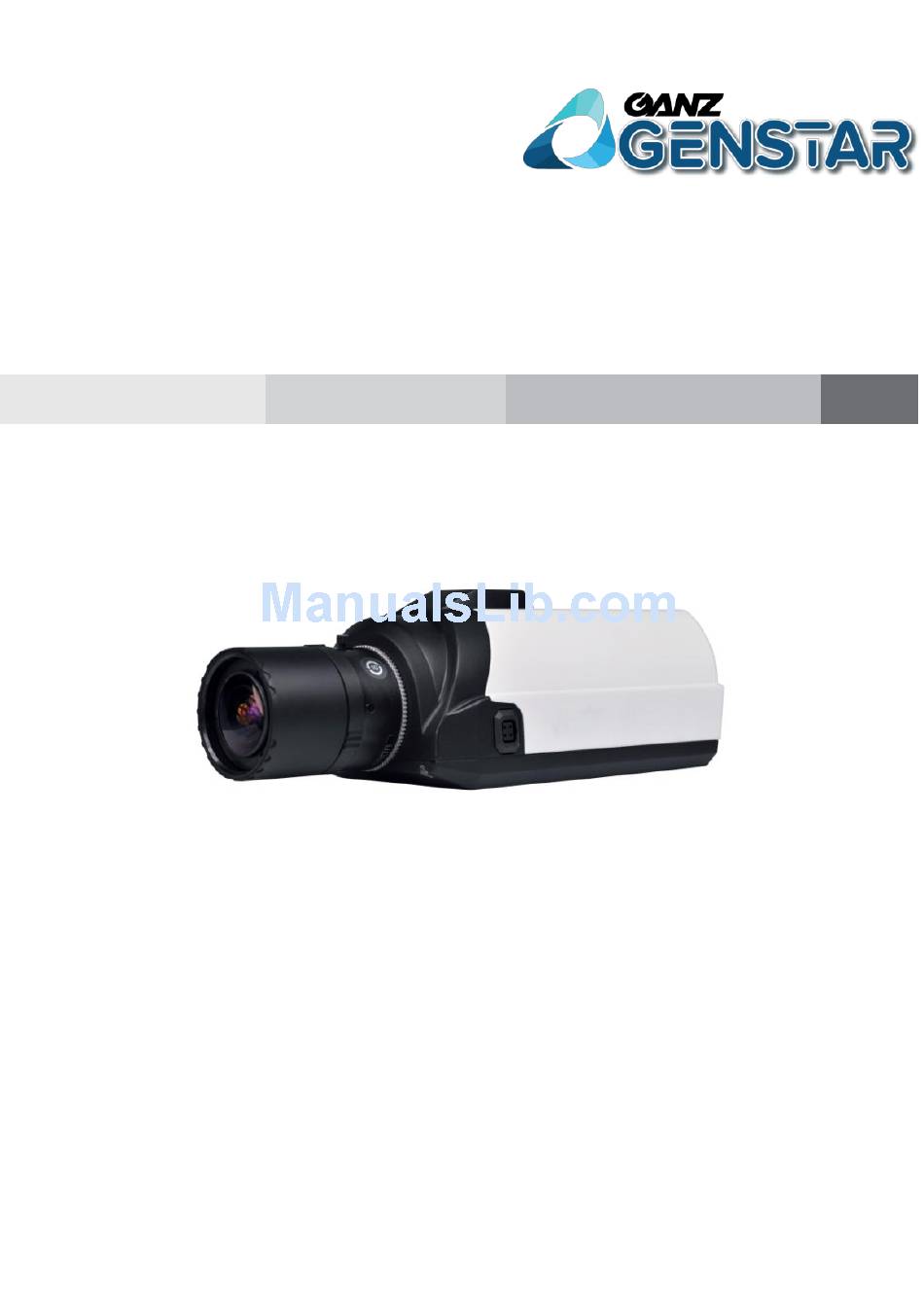

Page 1: User Manual
GANZ ZN8 IP Box Camera User Manual Issue V1.0 Date 2016-02-22... -
Page 3: Precautions
IP Box Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place. - Page 4 IP Box Camera Precautions User Manual Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
- Page 5 IP Box Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.
-
Page 6: Table Of Contents
IP Box Camera Contents User Manual Contents Precautions ........................i 1 Overview ........................1 1.1 Device Structure ......................1 1.2 Features .......................... 3 2 Device Dimensions ....................5 3 Device Installation ....................6 3.1 Installation mode ......................6 3.1.1 Installing an Auto Aperture and Manual focus Lens .......... 6 3.1.2 Installing a Manual Aperture and Manual focus Lens ........ -
Page 7: Overview
IP Box Camera User Manual 1 Overview Overview 1.1 Device Structure Figure 1-1 shows the ports on the body of an IP box camera. Table 1-1describes the ports. Figure 1-1 Ports on the body of an IP box camera Table 1-1 Components on the rear panel Port Description Lens port... - Page 8 IP Box Camera 1 Overview User Manual Figure 1-2 Real panel of an IP box camera Table 1-2 Components on the rear panel Port Function VIDEO Video Sends analog video signals. You can connect the output port camera to a TV monitor through this port to view analog videos.
-
Page 9: Features
IP Box Camera User Manual 1 Overview Port Function output ports COM: common alarm output port OUT: alarm output port Connects to a standard Ethernet cable. Network access port RS485 Connects to an external Pan Tilt Zoom (PTZ). RS485 port RESET Restores the camera to the factory settings by... - Page 10 IP Box Camera 1 Overview User Manual Supports Power over Ethernet (PoE) that complies with the IEEE802.3af standard. The IP camera can connect to a switch or router supporting the PoE function to implement PoE. Support remote upgrade and maintenance. Image Processing Features ...
-
Page 11: Device Dimensions
IP Box Camera User Manual 2 Device Dimensions Device Dimensions Figure 2-1 shows the box camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2016-02-22) -
Page 12: Device Installation
IP Box Camera 3 Device Installation User Manual Device Installation 3.1 Installation mode 3.1.1 Installing an Auto Aperture and Manual focus Lens Description Before installing a lens, remove the front protection cap from the camera first. Procedure Step 1 Attach the lens to the camera body and turn the lens clockwise until it locks into place. Step 2 Insert the cable plug of the lens into the IRIS port on the side of the camera body. -
Page 13: Uninstalling A Lens
IP Box Camera User Manual 3 Device Installation Procedure Step 1 Use the Phillips screwdriver to loosen the screw on the side of the focusing ring. Fully turn the focusing ring counterclockwise and manually bring the camera into focus. The camera has been calibrated before delivery. You can also adjust the focusing ring as required to obtain the required focus. - Page 14 IP Box Camera 3 Device Installation User Manual Figure 3-1 Device connections Issue V1.0 (2016-02-22)
-
Page 15: Quick Configuration
IP Box Camera User Manual 4 Quick Configuration Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter. -
Page 16: Main
IP Box Camera 4 Quick Configuration User Manual logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system. -
Page 17: Browsing Video
IP Box Camera User Manual 4 Quick Configuration Element Description When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed. - Page 18 IP Box Camera 4 Quick Configuration User Manual Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.
-
Page 19: Download The Right Control In The Internet Explorer
IP Box Camera User Manual 4 Quick Configuration The login page is display when the control is loaded. 4.3.2 Download the right control in the Internet Explorer Preparation User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ... -
Page 20: In The Google, Firefox, Or Safari Browsers Watch Live Video
IP Box Camera 4 Quick Configuration User Manual Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen. - Page 21 IP Box Camera User Manual 4 Quick Configuration The Local Network page is displayed, as shown in Figure 4-7. Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses...
- Page 22 IP Box Camera 4 Quick Configuration User Manual Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.
-
Page 23: Technical Specifications
IP Box Camera User Manual 5 Technical Specifications Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Items parameters Description Camera Image sensor 1/3" CMOS sensor function Video standard Configurable 2688(H) ×1512(V) Effective Pixels Digital zoom Support Color: 0.01Lux@ (F1.2, AGC ON) - Page 24 IP Box Camera 5 Technical Specifications User Manual Items parameters Description Focal length of the lens Auto Iris DC drive External Network RJ-45, 10/100Base-T self-adaptive Ethernet port interface interface RS485 Support Alarm Support for one alarm input and one alarm output interface Audio Support for one linear input and one linear output...
- Page 25 IP Box Camera User Manual 5 Technical Specifications Items parameters Description Embedded Support microphone Network Network IPv4/ Ipv6, RTSP/RTP/RTCP, TCP/UDP, HTTPS, protocol DHCP, DNS, DDNS, PPPoE, SMTP Streaming Unicast mode Number of users in concurrent access Function Corridor mode Not supported Defogging Support Region of...
- Page 26 IP Box Camera 5 Technical Specifications User Manual Items parameters Description 3.2W(Heater OFF) Power consumption 7.2W(Heater ON) Operating -25℃–+55℃ temperature Operating Humidity: <90% (non-condensing) humidity Physic Dimension(m 74(W)×63(H)×145 (D) features Net weight 470g Issue V1.0 (2016-02-22)
-
Page 27: A Hazardous Substance Declaration
IP Box Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit × ○ ○...
