ONE100D/M
Installation Guide

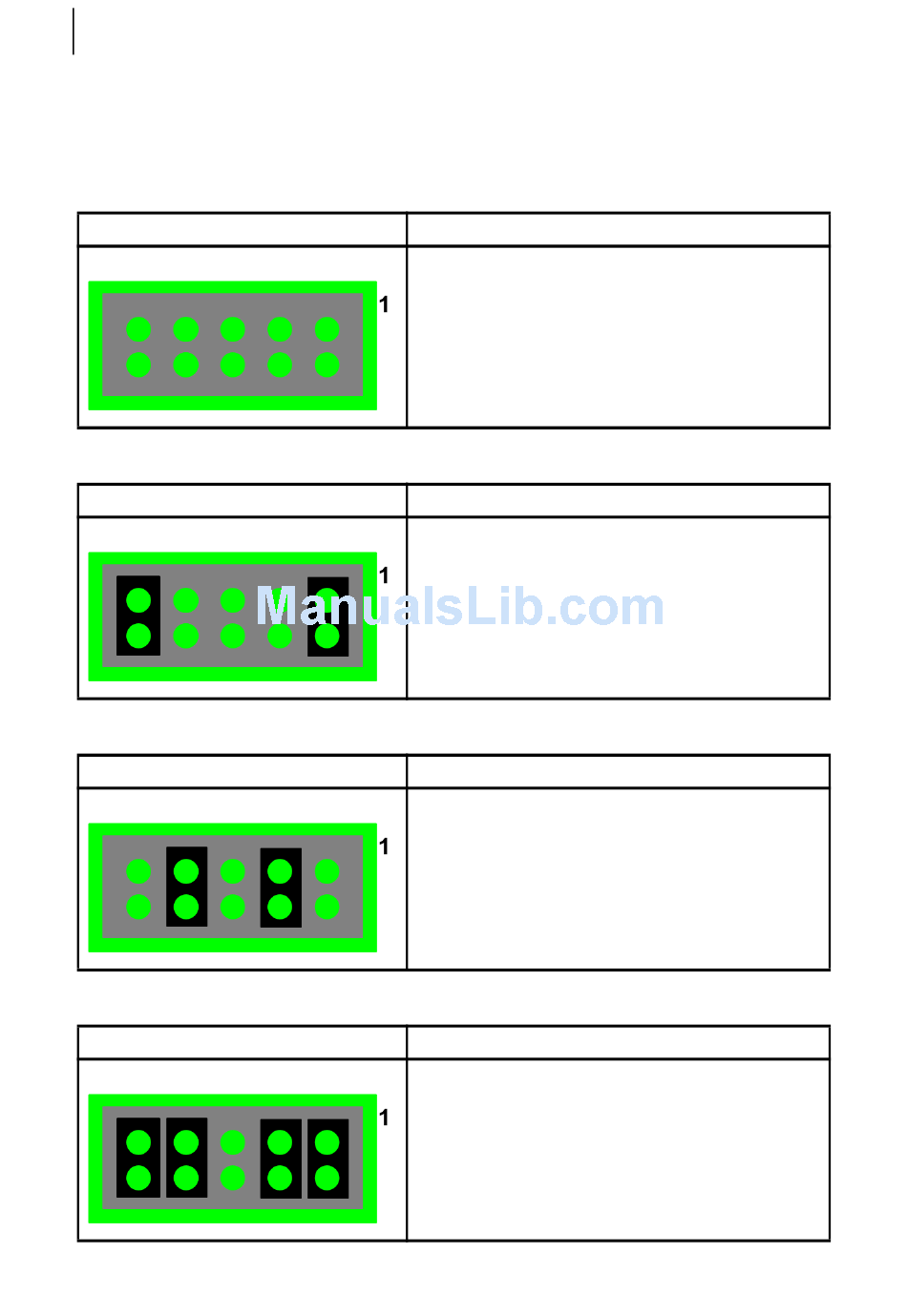

Examples of configurations
•
Configuration 1:
Strap settings
•
Configuration 2:
Strap settings
•
Configuration 3:
Strap settings
•
Configuration 4:
Strap settings
Description
100 Ω impedance adaptation disconnected.
•
•
Power feeding for ISDN terminal disconnected.
Description
100 Ω impedance adaptation connected, for both
•
transmission and reception.
•
Power feeding for ISDN terminal disconnected.
Description
100 Ω impedance adaptation disconnected.
•
•
Power feeding for ISDN terminal connected.
Description
100 Ω impedance adaptation connected, for both
•
transmission and reception.
•
Power feeding for ISDN terminal connected.
