31 ONE100D/M
Installation Guide
One100 D/M-4B-2V-W

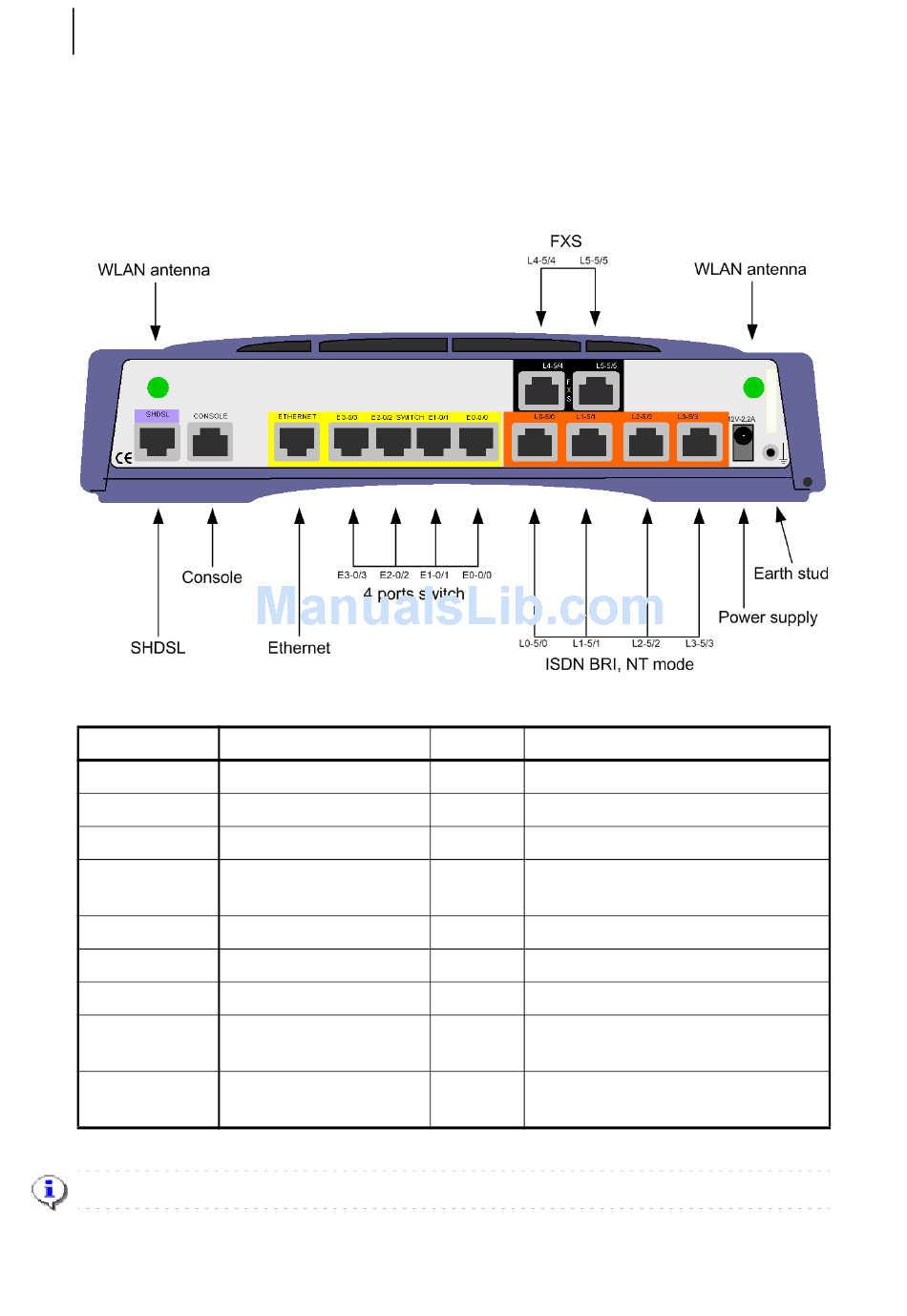

The following figure shows the back panel of a ONE100D/M with 4 BRI connectors for NT mode and 2
FXS voice interfaces:
Following connectors are present:
Connector(s)
SHDSL
Console
Ethernet
4 port Ethernet
switch
ISDN
FXS
WLAN
Power
Earth stud
Note that an earth stud is also present on the back panel.
Label
SHDSL
CONSOLE
ETHERNET
SWITCH – E0-0/0 - E3-0/3 RJ45
ISDN BRI – L0-5/0 - L3-5/3 RJ45
FXS – L4-5/4 – L5-5/5
-
12V-2,2A
-
Type Function
RJ45 SHDSL line connector
RJ45 V.24 DTE interface
RJ45 Ethernet LAN connector
Ethernet LAN connectors
ISDN connection, NT mode
RJ45 2 analog telephone interfaces
SMA Wireless LAN connectors
DC input Power input
jack
Clinching Earth connection
stud
Chapter 3
Router description
