OneAccess ONE100D/M Installation Manual page 25

25 ONE100D/M
Installation Guide
One100D/M-2B-W

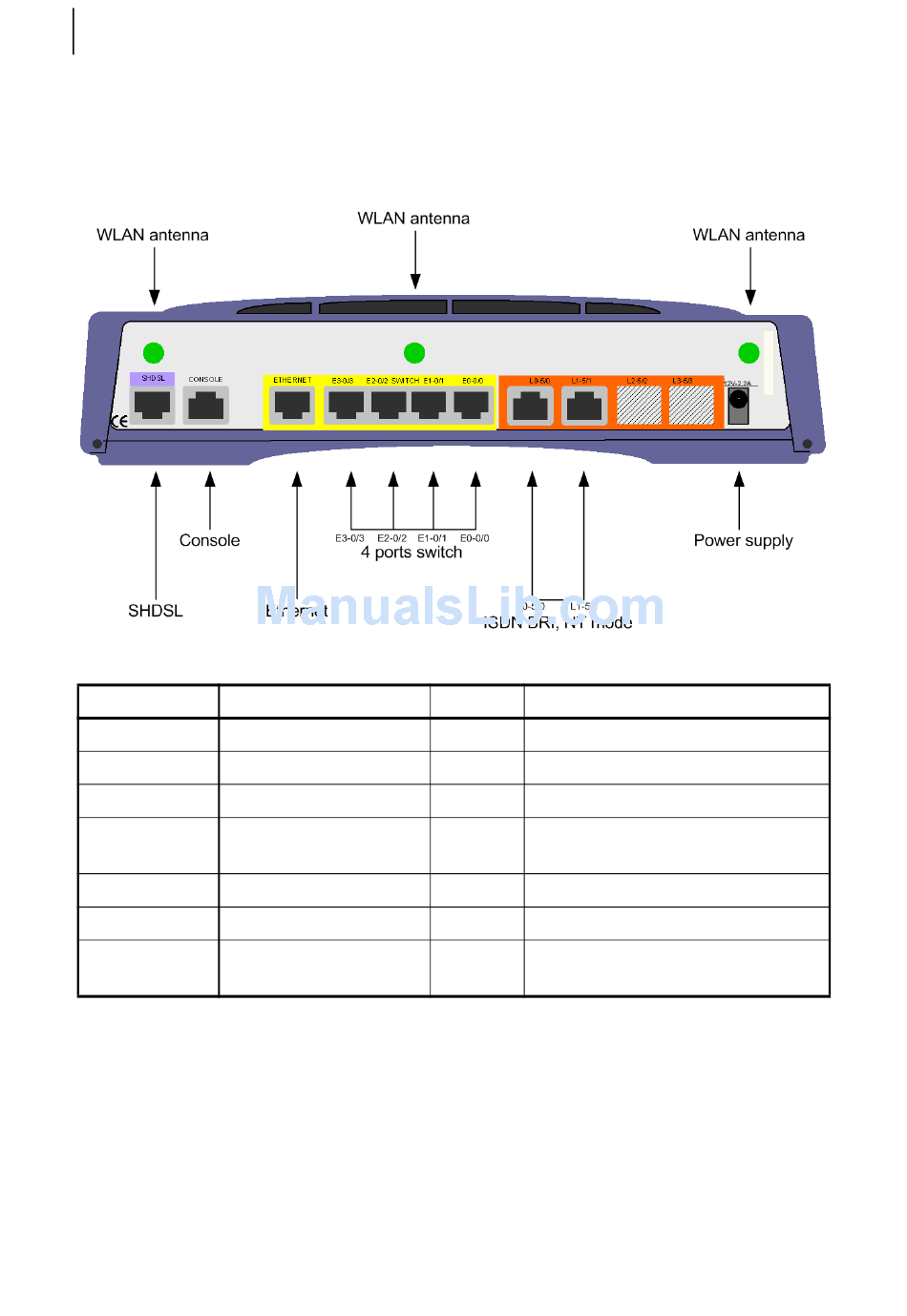

The following figure shows the back panel of a ONE100D/M with 2 BRI connectors:
Following connectors are present:
Connector(s)
SHDSL
Console
Ethernet
4 port Ethernet
switch
ISDN
WLAN
Power
Label
SHDSL
CONSOLE
ETHERNET
SWITCH – E0-0/0 - E3-0/3 RJ45
ISDN BRI – L0-5/0 - L1-5/1 RJ45
-
12V-2,2A
Type Function
RJ45 SHDSL line connector
RJ45 V.24 DTE interface
RJ45 Ethernet LAN connector
Ethernet LAN connectors
ISDN connection, NT mode
SMA Wireless LAN connectors
DC input Power input
jack
Chapter 3
Router description
