OneAccess ONE100D/M Installation Manual page 29

29 ONE100D/M
Installation Guide
One100D/M-2V-W

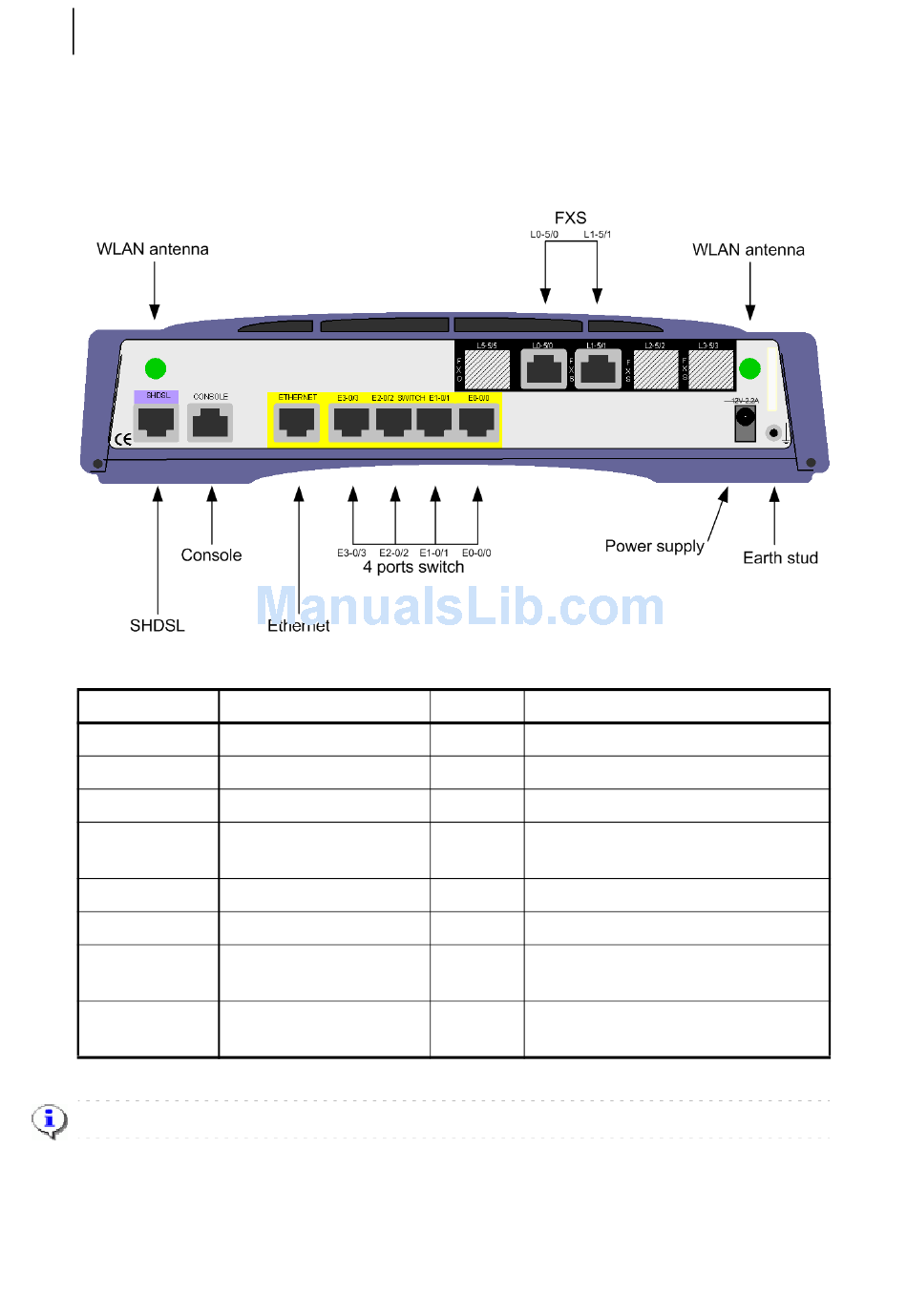

The following figure shows the back panel of a ONE100D/M with 2 FXS voice connectors:
Following connectors are present:
Connector(s)
SHDSL
Console
Ethernet
4 port Ethernet
switch
FXS
WLAN
Power
Earth stud
Note that an earth stud is also present on the back panel.
Label
SHDSL
CONSOLE
ETHERNET
SWITCH – E0-0/0 - E3-0/3 RJ45
FXS – L0-5/0 – L1-5/1
-
12V-2,2A
-
Type Function
RJ45 SHDSL line connector
RJ45 V.24 DTE interface
RJ45 Ethernet LAN connector
Ethernet LAN connectors
RJ45 2 analog telephone interfaces
SMA Wireless LAN connectors
DC input Power input
jack
Clinching Earth connection
stud
Chapter 3
Router description
