ONE100D/M
Installation Guide
One100D/M-2B-2B-W

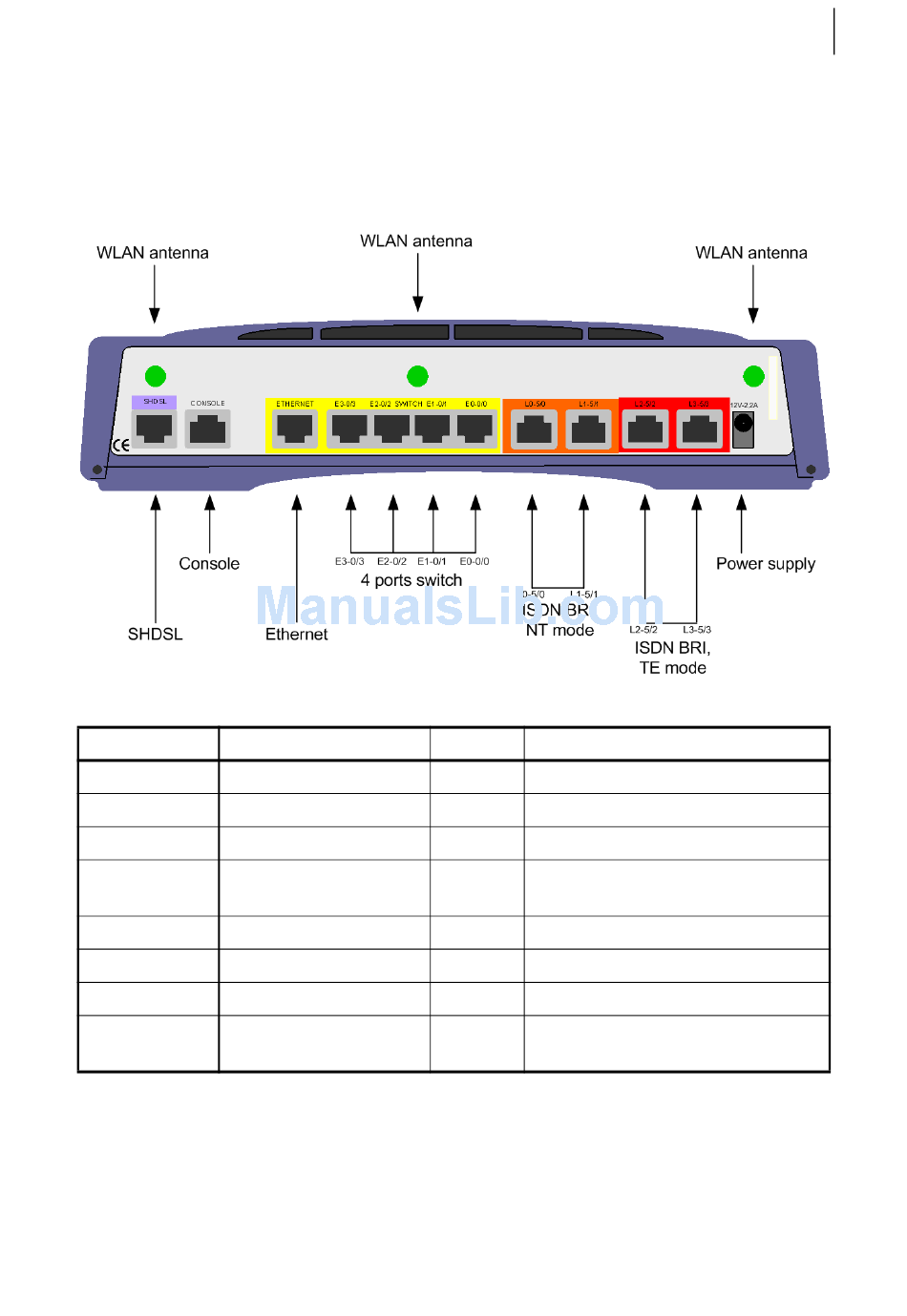

The following figure shows the back panel of a ONE100D/M with 2 BRI connectors for NT mode, and 2
BRI connectors for TE mode:
Following connectors are present:
Connector(s) Label
SHDSL SHDSL
Console CONSOLE
Ethernet ETHERNET
4 port Ethernet SWITCH – E0-0/0 - E3-0/3 RJ45
switch
ISDN ISDN BRI – L0-5/0 - L1-5/1 RJ45
ISDN ISDN BRI – L2-5/2 - L3-5/3 RJ45
WLAN -
Power 12V-2,2A
Type Function
RJ45 SHDSL line connector
RJ45 V.24 DTE interface
RJ45 Ethernet LAN connector
Ethernet LAN connectors
ISDN connection, NT mode
ISDN connection, TE mode
SMA Wireless LAN connectors
DC input Power input
jack
Chapter 3 26
Router description
