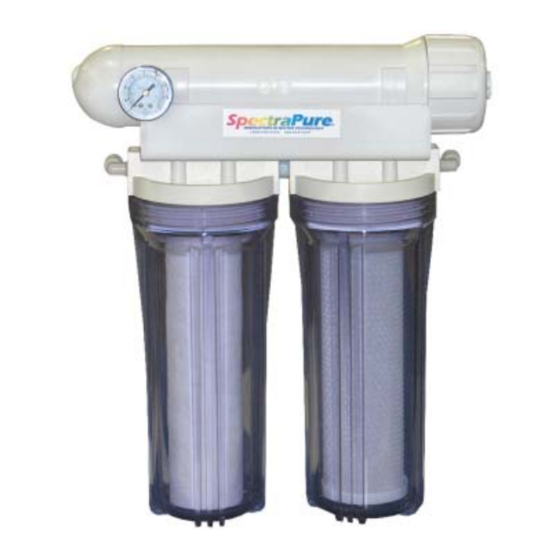

The Eliminator™ RO System
Reverse Osmosis Water Purification System
(Single and Dual Membrane Models)
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameter may lead to
the product's failure and possible damage to property.
REV 09-19-2011
Advertisement
Table of Contents
Troubleshooting
Related Manuals for SpectraPure The Eliminator
Summary of Contents for SpectraPure The Eliminator

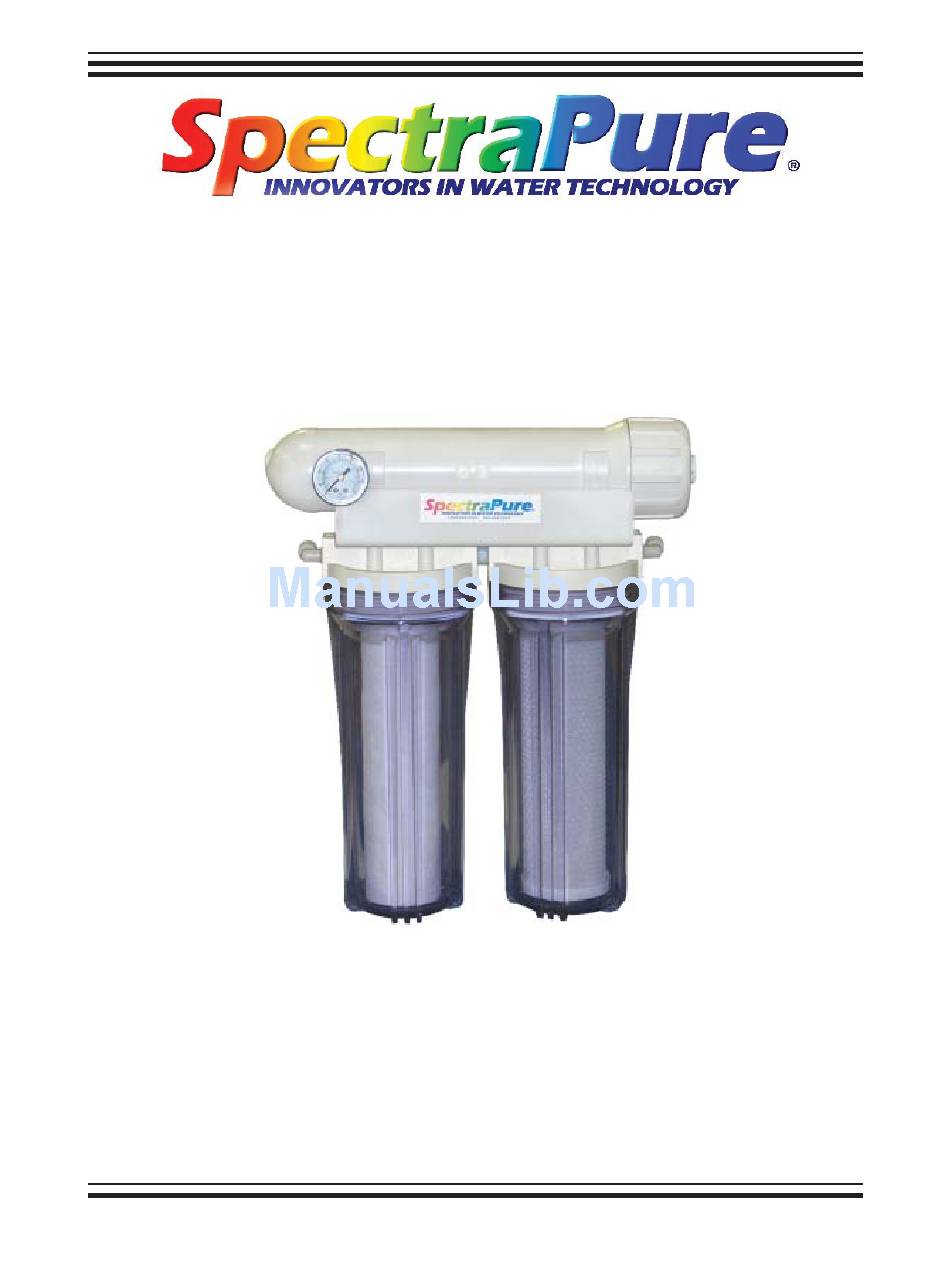

- Page 1 The Eliminator™ RO System Reverse Osmosis Water Purification System (Single and Dual Membrane Models) INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
® SpectraPure TABLE OF CONTENTS: Thank You for your purchase of a SpectraPure® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure® products are rigorously tested by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our... -
Page 3: Terms And Conditions
10 days. Returns other than warranty claims may be subject to 20% restocking fee. 8. SpectraPure, Inc. Cannot be held liable for damage or loss to a shipment by a freight carrier. Check shipment for damage before acceptance or note on freight bill subject to inspection for concealed damage. -
Page 4: Warranty Information
Effective on products purchased after March 10, 2005. SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 5: What Is Reverse Osmosis
The water then passes through the RO membrane. The ELIMINATOR™ System gives you a continuous supply of sparkling clear, delicious water for drinking, cooking, hydroponics etc. Foods will look better and taste better too. The reliability with the ELIMINATOR™... -
Page 6: System Specifications
® SpectraPure SYSTEM SPECIFICATIONS: Sediment Pre-Filter 1 micron MicroTec™ sediment pre-filter Carbon Filter 1 micron carbon block pre-filter RO Membrane Type Thin-Film Composite (TFC) Rejection Rate 98% average Input Water Pressure 60 psi (4.15 bar) line pressure* Input Water Temp 77°F (25°C) -
Page 7: System Description
Fig. A: Single-Membrane Filter Diagram TFC RO Membrane (ELIM-MEM-100) & Housing Pressure Gauge 1 micron Carbon Block Filter (ELIM-CF-1) 1 micron MicroTec™ Sediment Pre-Filter (ELIM-SF-1) SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 8 ® SpectraPure SINGLE MEMBRANE SYSTEM- FIGURE B DUAL MEMBRANE SYSTEM- FIGURE C SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
-
Page 9: System Initialization
(LLC-M-115) or the Auto Shut-Off Kit (ASOFK) (Shown on page 10). SpectraPure®Inc Assumes no responsibility for water damage due to leaks. It is the user’s responsibility to determine that the system is leak-free. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 10 ® SpectraPure Optional Accessories AUTOMATIC SHUT-OFF FLOAT KIT (ASOFK) - Provides an economical way to automatically fill open reservoirs. The ASO valve in conjunction with a check valve provides positive shut-off and completely shuts off the waste water and product water lines, thus conserving water (Note: A pressurized storage tank of any size may be installed on the line leading to the float valve.
-
Page 11: Measuring Product To Waste Ratio
If ratio is greater than 5:1, you will need to further restrict the waste water. You may contact SpectraPure Inc for a smaller FR, or, get a small 1/4” Ball Valve from a hardware store. Cut the yellow waste line about 18 inches from the Membrane Housing and then re-connect the two cut ends with the Ball Valve. -
Page 12: Flow Restrictor Adjustment
® SpectraPure FLOW RESTRICTOR REMOVAL, ADJUSTMENT AND REPLACEMENT Locate the yellow concentrate tubing (Fig. B for Single-Membrane System or Fig. C for Dual-Membrane System). Remove the tubing from its push-fitting at the membrane: a.) Firmly depress and hold the push-fitting collar down with your thumbnail. - Page 13 It also forces waste water to flow through the capillary tubing to restrict waste water as it leaves the housing.) SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 14: Sediment Diagnostic
® SpectraPure SEDIMENT PRE-FILTER REPLACEMENT: A Sediment Filter will usually last approx. 4-6 months, depending on micron rating and quality of water. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 15: Carbon Diagnostic
NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. Turn on system water supply and check for leaks. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 16: Ro Membrane Diagnositc
RO membrane. MEMBRANE WARNING: All replacement SpectraPure RO mem- branes, except for encapsulated membranes, must remain moist at all times. It is the customer’s responsibility to inspect the membrane upon receipt and maintain adequate moisture. -
Page 17: Ro Membrane Replacement
(Fig. D) Fig. E: Membrane Housing membrane feed blue product black feed tubing push-fitting water tubing membrane housing lid yellow concentrate tubing SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 18 ® SpectraPure from the yellow tubing (see Flow Restrictor Removal, Adjustment, and Replacement). Reconnect the tubing to the membrane housing. Place the flow restrictor in a safe location where it will not be accidentally crushed or damaged. 11. Put the yellow concentrate tubing and the blue product water tubing in the drain and turn on the system water supply.
-
Page 19: Troubleshooting For The Drinking Water Kits
0.661 71.6 /22 0.912 89.6 /32 1.232 55.4 /13 0.684 73.4 /23 0.941 91.4 /33 1.267 57.2/14 0.707 75.2 /24 0.970 93.2 /34 1.304 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 20 The performance of a RO membrane is measured by its ability to reject salts (or TDS (Total Dissolved Solids)). Important: Test the quality of the membrane once every 6 months. Note: This procedure will require a TDS Meter. SpectraPure offers several models. Procedure: Measure tap water TDS. (Call it X) Run the system for 15-20 minutes.
-
Page 21: Troubleshooting Guide
RO product water (Y) greater than Yes - Membrane OK for Hardness 95%? **Caution: This test is not to be used on softened water sources. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 22 ® SpectraPure TIPS FOR LONG MEMBRANE LIFE: 1. Replacement of 1 micron sediment filter once every 6 months. This will prevent mem brane fouling due to silt or sediment depositing on the membrane. 2. Replacement of 1 micron carbon block filter at least once every 6 months or when chlorine breakthrough occurs.
- Page 23 If the unit is used outside, avoid putting the system in direct sunlight or connecting it to a garden hose that may be exposed to sunlight. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 24: Replacement Parts
® SpectraPure REPLACEMENT PARTS: Model Replacement Part ELIM-SF-1 1 micron MicroTec™ Sediment Filter ELIM-CF-1 1 micron Carbon Block Pre-Filter *ELIM-MEM-0100 100 gpd TFC Membrane (Use 2 for 200 gpd systems) ELIM-FR-100 Flow Restrictor for 100 gpd System ELIM-FR-200 Flow Restrictor for 200 gpd System ELIM-GHA-4 1/4”...
