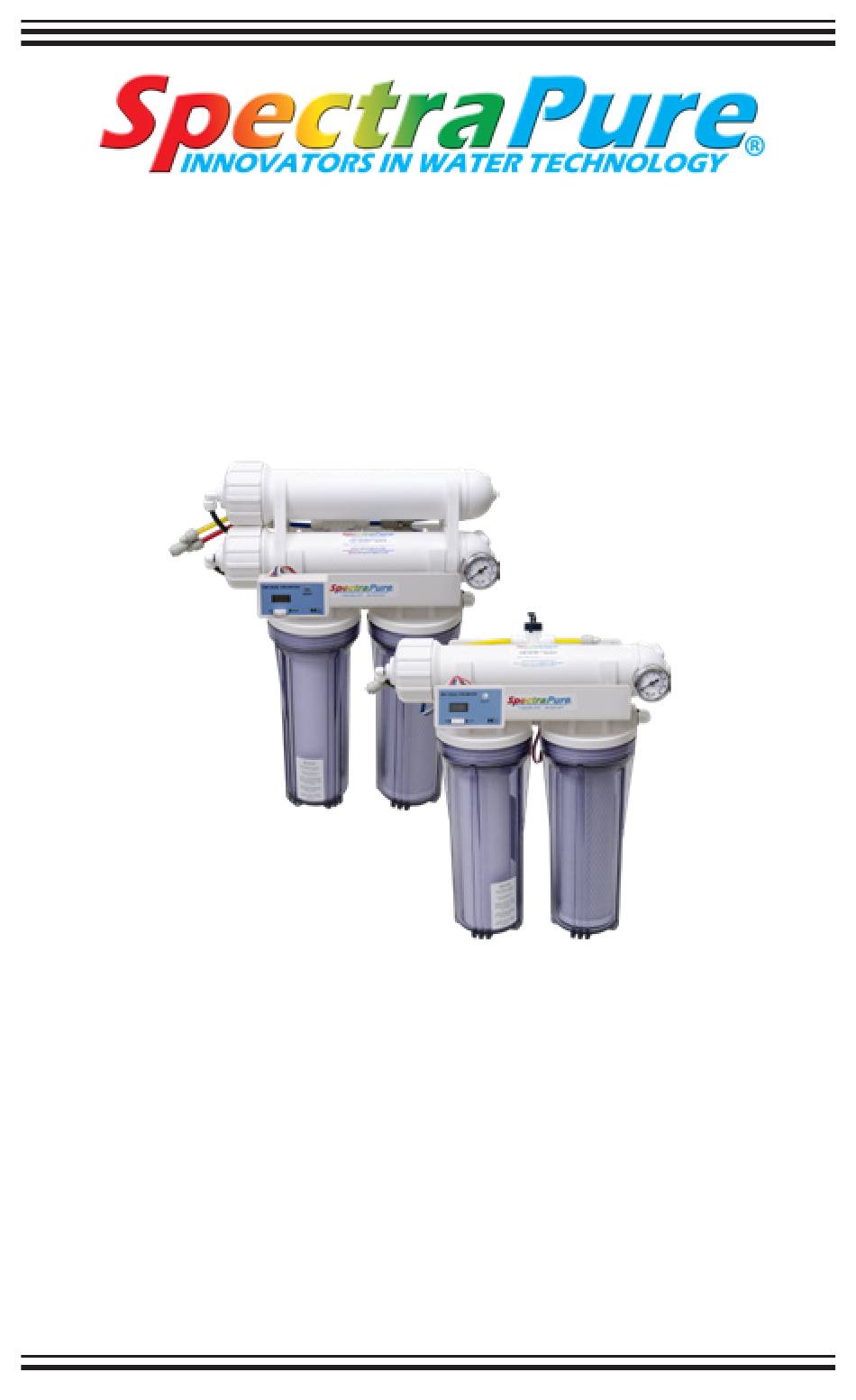

CSP Manual Flush
Reverse Osmosis
Water Purification Systems
Single (90 GPD) and Dual (180 GPD) Membrane Models
CSP-90-MF
CSP-180-MF
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameters may lead to
the product's failure and possible damage to property.
2019- 09-30
Advertisement
Table of Contents
Related Manuals for SpectraPure CSP-90-MF
Summary of Contents for SpectraPure CSP-90-MF
- Page 1 CSP Manual Flush Reverse Osmosis Water Purification Systems Single (90 GPD) and Dual (180 GPD) Membrane Models CSP-90-MF CSP-180-MF INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameters may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
System Features ...................... 3 System Specifications .................... 4 General System Description ................. 5 System Components ....................6 Rear View of CSP-90-MF ..................7 Rear View of CSP-180-MF ..................8 Working With Push Fittings ................9 System Installation & Initialization ............10-11 Install the Float Valve ..................11... -
Page 3: System Features
• Garden hose adapter for feed water hookup • One year warranty Thank You for your purchase of a SpectraPure System. With proper ® installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure products are rigorously tested ®... -
Page 4: System Specifications
77°F (25°C) Recovery Rate 33% (i.e. 33% of the water will be collected as pure water) Dimensions: CSP-90-MF 14" W x 16" H x 7" D (One Membrane) CSP-180-MF 14" W x 18" H x 7" D (Two Membranes) Nominal Membrane Flow Rates @ 60 psi, 77° F & 250 ppm TDS :... -
Page 5: General System Description
GENERAL SYSTEM DESCRIPTION: This SpectraPure RO System will provide you with a continuous supply of ® sparkling clear water. The reliability of the SpectraPure Water Treatment ® System is greatly improved over other systems. Costly maintenance can be avoided, providing high quality water at your fingertips. -
Page 6: System Components
SpectraPure ® SYSTEM COMPONENTS — CSP - 90 - MF (CSP-180-MF is the same except that it has two membrane housings) TFC RO Membrane (MEM-0090) inside Housing Pressure Gauge Dual-Probe TDS Meter IN = Tap Water TDS Manual OUT = RO Water TDS... -
Page 7: Rear View Of Csp-90-Mf
SpectraPure ® REAR VIEW — CSP-90-MF Flush Valve (in RUN position -handle should be parallel to tubing for FLUSH mode) Automatic ShutOff (ASO) Valve Flow Restrictor in Attach Blue this end of Red product water (or Green) tubing tubing here... -
Page 8: Rear View Of Csp-180-Mf
SpectraPure ® REAR VIEW — CSP-180-MF Flush Valve (in RUN position -handle should be parallel to tubing for FLUSH mode) Automatic ShutOff (ASO) Valve Attach Blue product water tubing here Flow Restrictor in this end of Red (or Green) tubing... -
Page 9: Working With Push Fittings
SpectraPure ® WORKING WITH PUSH FITTINGS: Push fittings are very reliable and convenient tubing connectors. To remove the tubing from its push fitting: 1. Firmly depress and hold the push fitting collar down with your thumbnail. 2. While the push fitting collar is depressed, pull the tubing straight out of the push fitting. -
Page 10: System Installation & Initialization
SpectraPure ® SYSTEM INSTALLATION & INITIALIZATION: Most of the components of this system are plastic and are subject to damage by ultraviolet light from the sun and other sources such as metal halide lighting. Avoid installing this unit in an area where it may be subjected to bright light or direct sunlight, as algae is more likely to thrive inside the clear filter housings when exposed to bright light. -
Page 11: Install The Float Valve
Check the system to ensure that all fittings are tight and leak-free before leaving the system unattended. (If anything is leaking, contact SpectraPure for assistance.) Set the TDS meter to “OUT” and run the system until the meter reading stops dropping. The water is now ready to use. You can set the meter to read either probe at any time. -
Page 12: Float Valve Illustration
SpectraPure ® FLOAT VALVE ILLUSTRATION: HOW IT WORKS: The increasing water level raises the Float Valve in the reservoir and stops the flow of water. Pressure builds up in the product line and ASO Valve until the ASO Valve shuts off the flow of waste water to drain. This “OFF”... -
Page 13: Flow Restrictors And Test Strips
SpectraPure ® FLOW RESTRICTORS AND TEST STRIPS: These systems are supplied with TWO Flow Restrictors (FR) - RED and GREEN. See Page 8. The RED FR (pre-installed) produces a preset waste- to-product ratio of 3:1 and the optional GREEN FR has a 2:1 ratio. -
Page 14: The Manual Flush Valve
SpectraPure ® THE MANUAL FLUSH VALVE: The Manual Flush Valve is located in parallel with the flow restrictor (see pages 7-8) and when opened, provides a high-flow bypass of waste water used to purge concentrated brine from the membrane housing and rapidly flush any particulates from the membrane surface. -
Page 15: Sediment Prefilter Replacement
SpectraPure ® SEDIMENT PREFILTER REPLACEMENT: A Sediment Filter will usually last approx. 4-6 months, depending on the quality of the tap water and quantity of water being produced. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 16: Carbon Block Filter Replacement
SpectraPure ® CARBON BLOCK FILTER REPLACEMENT: A Carbon Filter will usually lasts 4-6 months ,depending on the chlorine (or chloramine) content of your tap water and quantity of water being produced. The best way to determine when your Carbon Block Prefilter needs replacement is to use a chlorine test kit. -
Page 17: Ro Membrane Replacement
SpectraPure ® RO MEMBRANE REPLACEMENT: Turn off the water supply to the RO system. Place the system where the membrane housing(s) can be easily accessed. Remove the black tubing from the membrane feed push fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push fitting. -
Page 18: Ro Membrane Diagnostics
TESTING THE QUALITY OF THE MEMBRANE: The performance of a RO membrane is measured by its ability to reject salts or TDS (Total Dissolved Solids). This procedure will require a TDS Meter. SpectraPure offers several models: MTR-TDS-EZ HM Digital Hand-held TDS Meter... -
Page 19: Membrane Production Calculation
SpectraPure ® Rejection of the RO Membrane Calculation Example 1. Tap water TDS = 150 ppm (X) 2. RO water TDS = 15 ppm (Y) 3. X - Y = 135 ppm 4. (X - Y) ÷ X = 135 ÷ 150 = 0.90 5. -
Page 20: Tips For Long Membrane Life
SpectraPure ® Temperature Correction Factor Table (TCF) °F /°C °F /°C °F /°C 41.0 /5 0.521 59.0 /15 0.730 77.0 /25 1.000 42.8 /6 0.540 60.8 /16 0.754 78.8 /26 1.031 44.6 /7 0.560 62.6 /17 0.779 80.6 /27 1.063 46.4 /8... -
Page 21: Troubleshooting Guide
SpectraPure ® TROUBLESHOOTING GUIDE: Low production rate: a. plugged prefilters. i. Replace prefilters. b. low water temperature ii. Warm feed water OR use higher GPD membrane. c. low line pressure. iii. Use booster pump OR use higher GPD membrane. d. high TDS content. -
Page 22: One Year Limited Warranty
® a period of one year from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. SpectraPure’s factory, any product of SpectraPure’s manufacture. -
Page 23: Replacement Parts
SpectraPure ® REPLACEMENT PARTS: Part Number Description SF-MT-0.5-10 0.5 micron Sediment Filter CF-0.5-10 0.5 micron Carbon Block Prefilter MEM-0090 90 gpd/340 lpd TFC Membrane (Use 2 for 180 gpd systems) FR-90-RED, -GRN Flow Restrictors for 90gpd/340 lpd System* FR-180-RED, -GRN Flow Restrictors for 180 gpd/681 lpd System* * Green Flow Restrictors have a 2:1 waste ratio recommended for water <180 ppm... - Page 24 SpectraPure ® NOTES: SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281...
