MTP40S User Manual
Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode (in the
left side of the display appear the word EDIT and the parameter start blinking):
<+/-> to setup field
<click> again to confirm changes and exit.
CLICK
exit without confirmation if no button is pressed after a few seconds time out.
+ -

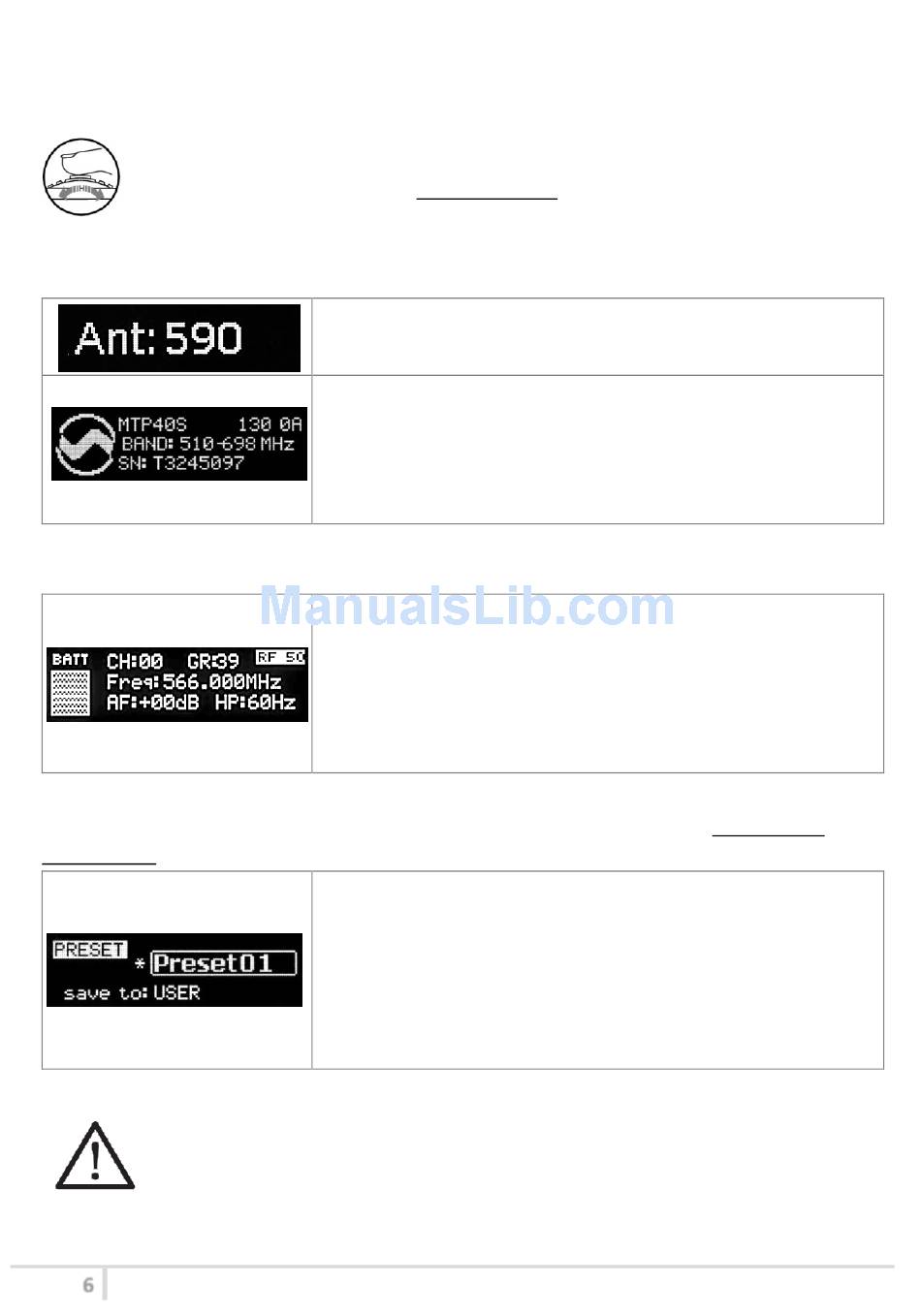

<START UP> menu
These menus are displayed during power up for few seconds.
<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by scrolling selector, or pushing at the same time both quick channel
setup buttons (<ch> & <gain>).
The other 8 configuration presets are user programmable thru the infrared and the PC interface
(using the programmer UPK 300/UPK
We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it's possible to change these presets in any time using the TX manager).
All parameters can be "left unchanged", "changed" or "changed and lock", allowing a very flexible
way to pre-program MTP40S configuration.
6
First one gives information of antenna to be used. The number
displayed is the center-band of the antenna to be used.
The second menu gives indication on product:
- product id (MTP40S),
- the firmware release (ex. 1.30.0A),
- the band in extended format and
- the serial number.
Keep selector pushed to hold this menu!
Major info are displayed:
- Current channel/group (i.e. CH:00 GR:39)
- Current frequency (i.e. 566.000 MHz)
- Mic gain (i.e. AF: +00 dB) and high pass filter (i.e. HP:60 Hz)
- "RF 100" or RF 50" or "RF 10" on top right if RF transmission
is active respectively at 100mW or 50mW or 10mW
- On left, battery bar is displayed
MTP40S can recall configuration presets. "FACTORY" recalls the
Wisycom factory configuration. "USER" recalls the user
configuration (the transmitter configuration is copied into the
USER using the "save to" submenu). All "USER" menus are not
locked by default, thus this is quick way to unlock features!
When the user changes some parameters from the PRESET
configuration (for less than frequency) a star appears on the top-
right corner until a save command is executed.
Mini
or the receiver MRK950/MRK960).
