XC-14A, XC-22A, XC-30A SERVICE MANUAL
CONSTRUCTION

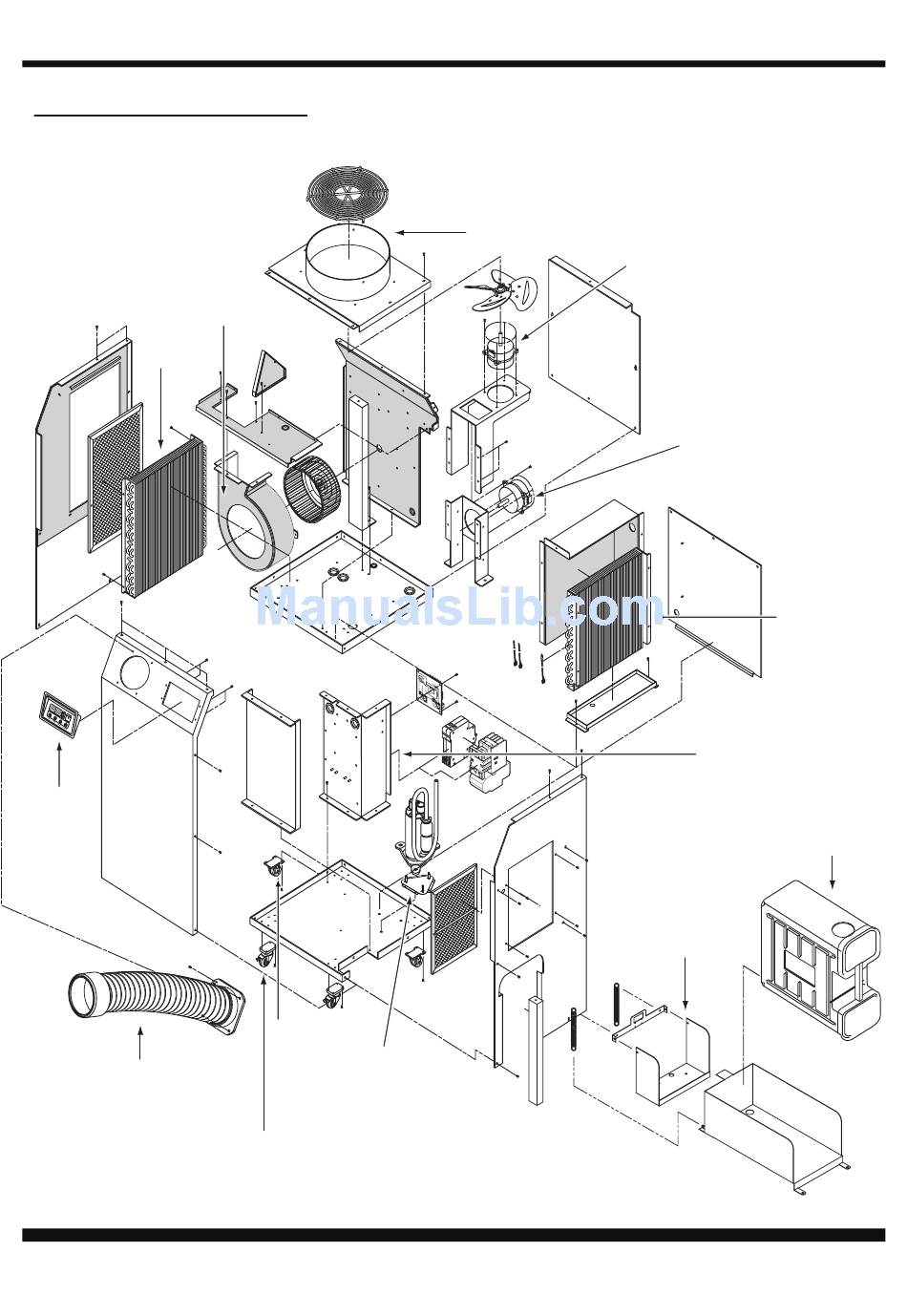

Internal Structure
<XC-14A>
Condenser
Control Panel
Cooling Air Duct
Xtreme Power Conversion® (XPC) Corporation
Eva Scroll
Caster (Rear)
Compressor
Locking Swivel Caster
Portable Air Conditioners
Condenser Air Outlet
Condenser Motor
Drain Tank Switch
Evaporator Motor
Evaporator
Control Box
• Relay Board
• Capacitor
Drain Tank
